2007 Suzuki SV650 Speedometer Diagram

← All diagrams

Find the part on the Speedometer diagram for your 2007 Suzuki SV650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

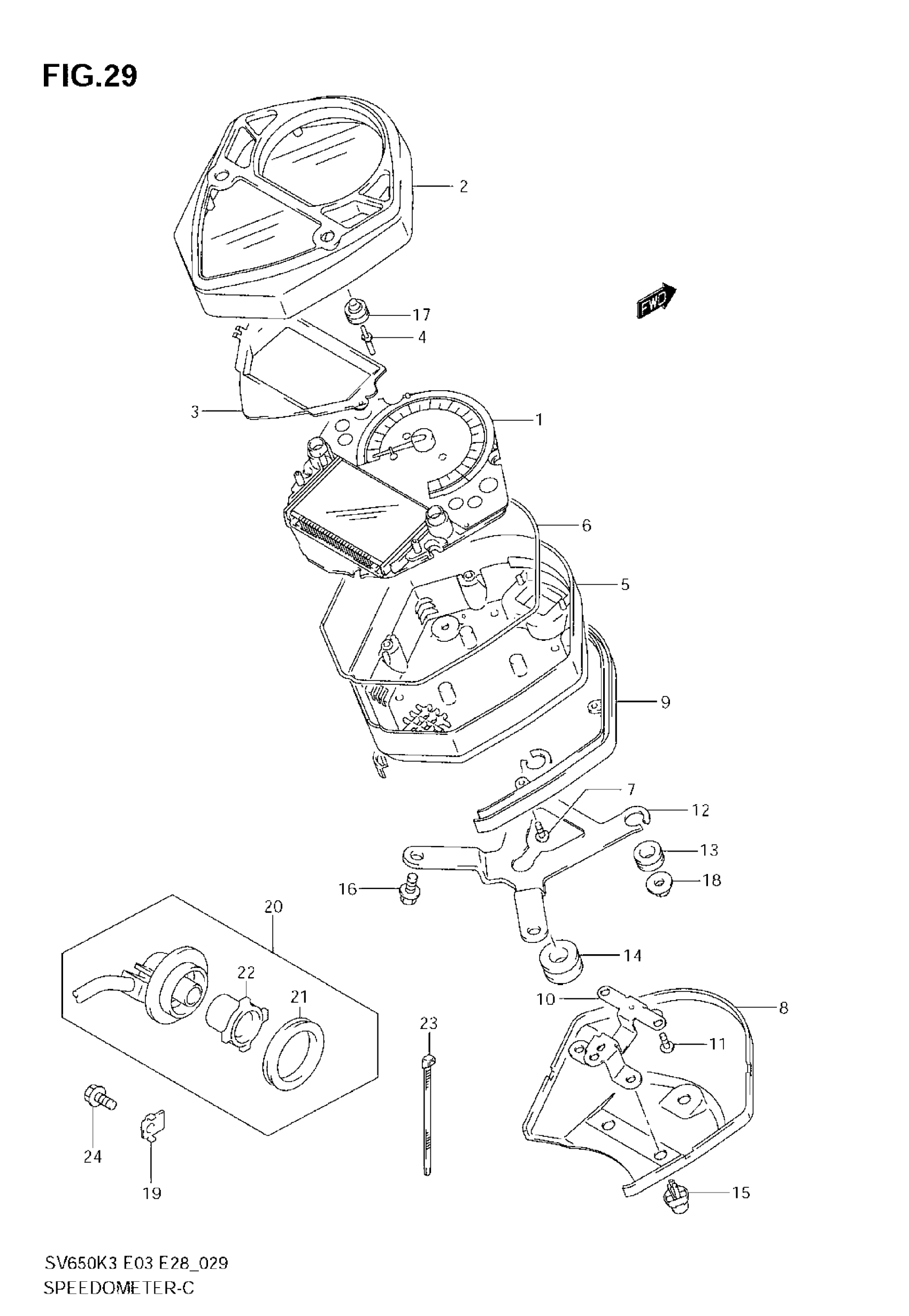

2007 Suzuki SV650 Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER (MILE/KILO)

34120-17G20

1
Out of stock

1

SPEEDOMETER (KILO) | E28

34120-17G00

—
Out of stock

2

CASE, SPEEDOMETER UPPER

34150-16G30

1
Out of stock

3

PLATE, SPEEDOMETER

34125-16G00

1
Out of stock

4

KNOB, SPEEDOMETER

34124-16G00

2
Out of stock

5

CASE, SPEEDOMETER LOWER

34152-16G00

1
Out of stock

6

GASKET, METER CASE

34153-16G00

1
Out of stock

7

SCREW, SPEEDOMETER

34183-16G30

5
Out of stock

8

COVER, SPEEDOMETER LOWER

34156-16G30

1
Out of stock

9

DECORATION PLATE, METER CASE

34157-16G30

1
Out of stock

10

HOLDER, SPEEDOMETER

34195-16G30

1
Out of stock

11

SCREW

34149-16B00

3
Out of stock

12

BRACKET, SPEEDOMETER CASE

34162-16G30

1
Out of stock

13

.CUSHION

34996-43410

2
Out of stock

14

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

1
Out of stock

15

CLIP, SPEEDOMETER

09409-07332

3
Out of stock

16

BOLT, EXHAUST COVER This part replaces 07120-06163.

07120-0616B

2
Out of stock

17

COVER

34126-16G00

2
Out of stock

18

NUT This part replaces 09159-05044.

09159-05049

2
Out of stock

19

GUIDE, SENSOR LEAD

34938-14F00

1
Out of stock

20

SENSOR,SPEED | Includes Item(s) 21 - 22 This part replaces 34990-17G00.

34990-17G20

1
Out of stock

21

SEAL, SENSOR OIL

09286-44001

1
Out of stock

22

MAGNET

34983-21E00

1
Out of stock

23

CLAMP (L:145)

09407-14407

4
Out of stock

24

BOLT This part replaces 01547-06123.

01547-0612B

1
Out of stock
