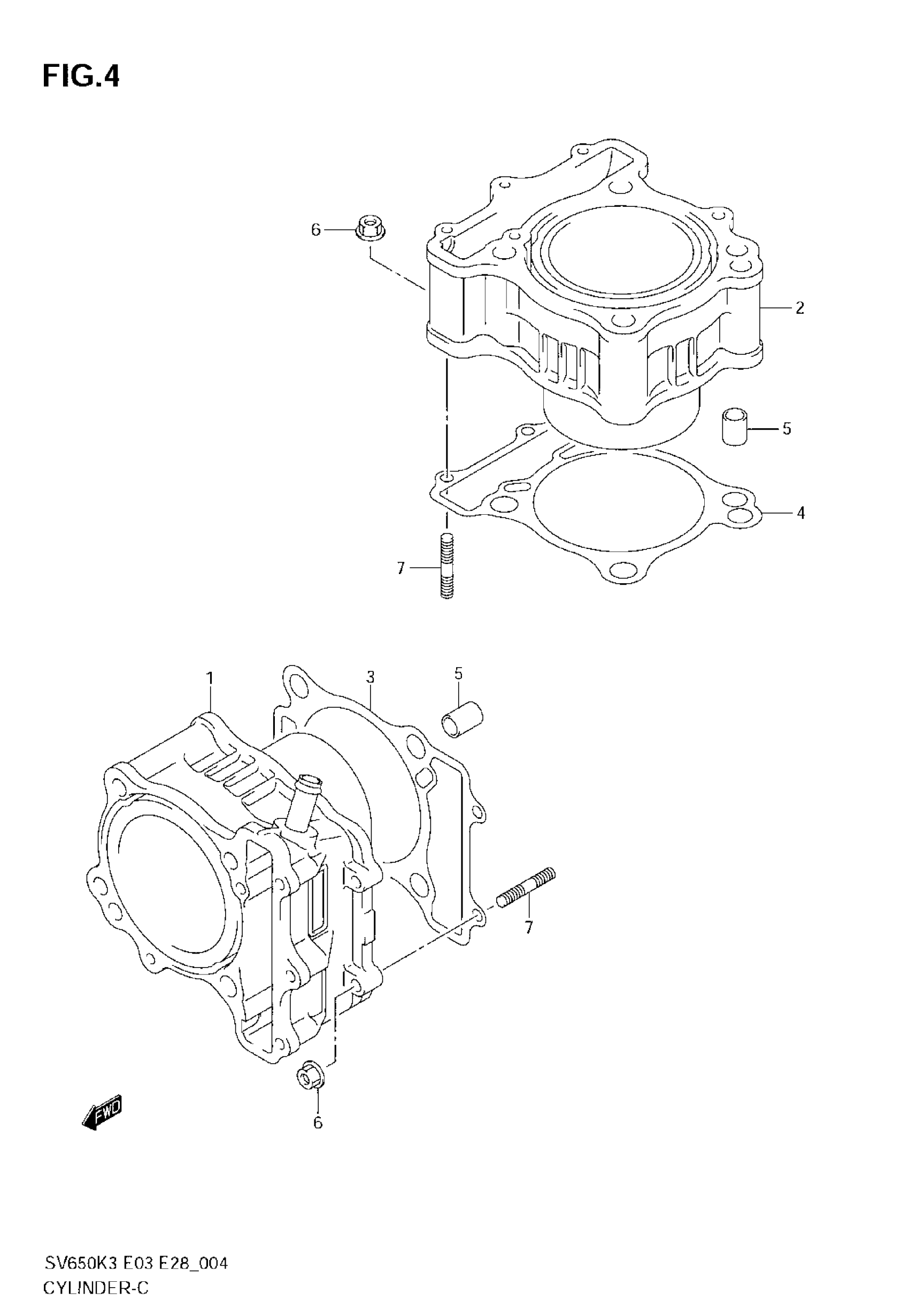

Suzuki SV650 (2007) CYLINDER Diagram

#

Description

Price

1

CYLINDER, FRONT

11210-20F30-0F0

Unavailable

2

CYLINDER, REAR

11220-20F20-0F0

Unavailable

3

GASKET, CYLINDER FRONT

11241-19F00

$12.58

4

.GASKET,CYLINDER RR

11242-19F00

$13.08

5

PIN

04211-13189

$2.25

6

NUT This part replaces 08316-10063.

08316-1006B

$2.57

7

STUD BOLT | MODEL K3/K4/K5/K6 This part replaces 01421-06253.

01421-0625A

$2.07

7

BOLT,STUD | MODEL K7

01421-0625B

$2.50
