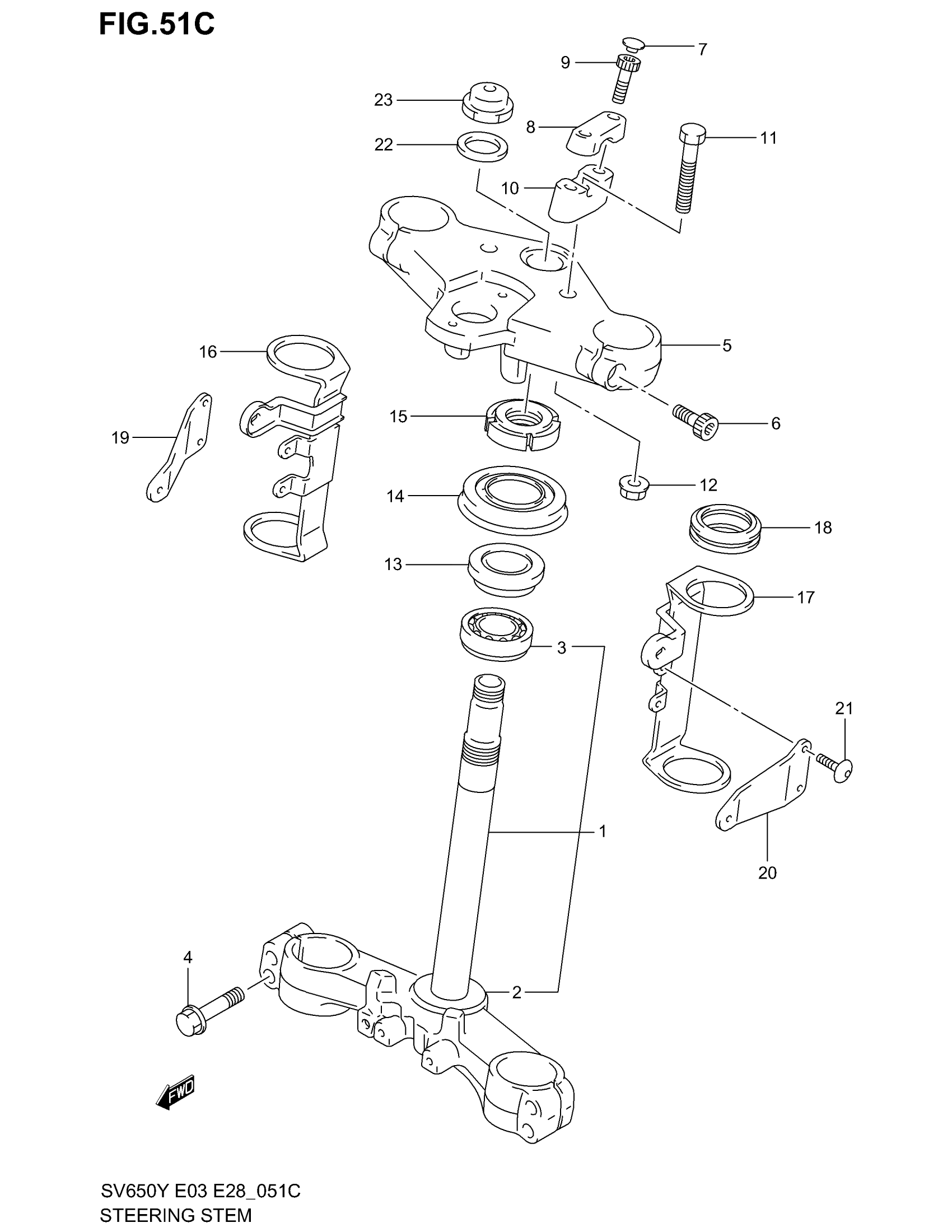

Suzuki SV650 (2002) STEERING STEM (SV650K2) Diagram

#

Description
Price

1

STEM, STEERING | Includes Item(s) 2 - 3

51410-20F40

Unavailable

2

SEAL, STEERING LOWER

51644-12C00

$8.65

3

BEARING (30X55X17)

09267-30010

$43.41

4

BOLT

01550-08407

$2.63

5

HEAD, STEERING STEM

51311-19F00

Unavailable

6

BOLT

51328-03FA0

Unavailable

7

CAP

09250-06011

$2.53

8

CLAMP, UPPER (SILVER) This part replaces 56211-42F00.

56211-31F00-0FP

Unavailable

9

BOLT

07130-08307

$4.98

10

HOLDER, HANDLE LOWER

56221-03FA0

Unavailable

11

BOLT

51321-03FA0

Unavailable

12

NUT

08319-31107

$2.73

13

BEARING (25X47X15)

09267-25009

$56.72

14

DUST SEAL This part replaces 09285-34009.

09285-34013

$14.98

15

NUT, STEERING STEM

51631-31F00

$22.42

16

BRACKET, HEADLAMP HOUSING RH

51530-19F10

Unavailable

17

BRACKET, HEADLAMP HOUSING LH

51540-19F10

Unavailable

18

DAMPER,HEADLAMP This part replaces 51553-38C00.

51553-38C01

$8.22

19

STAY, HEADLAMP HOUSING RH

51851-19F00

Unavailable

20

STAY, HEADLAMP HOUSING LH

51861-19F00

Unavailable

21

SCREW (6X12)

09139-06027

$2.00

22

WASHER

51356-10D03

$8.47

23

NUT

51353-28A10

$35.80
