Description

Price

1

STAND, PROP

42310-19F00

Unavailable

2

BOLT

09111-10027

$3.08

3

NUT, REAR This part replaces 08319-21103.

08319-2110A

$2.29

4

SPRING, INNER

09443-14066

$4.97

5

SPRING, OUTER

09443-19012

$5.31

6

BRACKET, PROP STAND

42330-19F01

Unavailable

7

BOLT This part replaces 07120-10303.

07120-1030B

$5.63

8

PEDAL, BRAKE

43111-33E00

$168.72

9

WASHER (18X24X1)

09160-18022

$2.80

10

HOOK, RETURN SPRING

43561-33E00

$9.97

11

.SCREW This part replaces 02112-05163.

02112-0516A

$1.45

12

SPRING

09443-13029

$4.84

13

TUBE, SPRING GUIDE

43261-17C00

$6.92

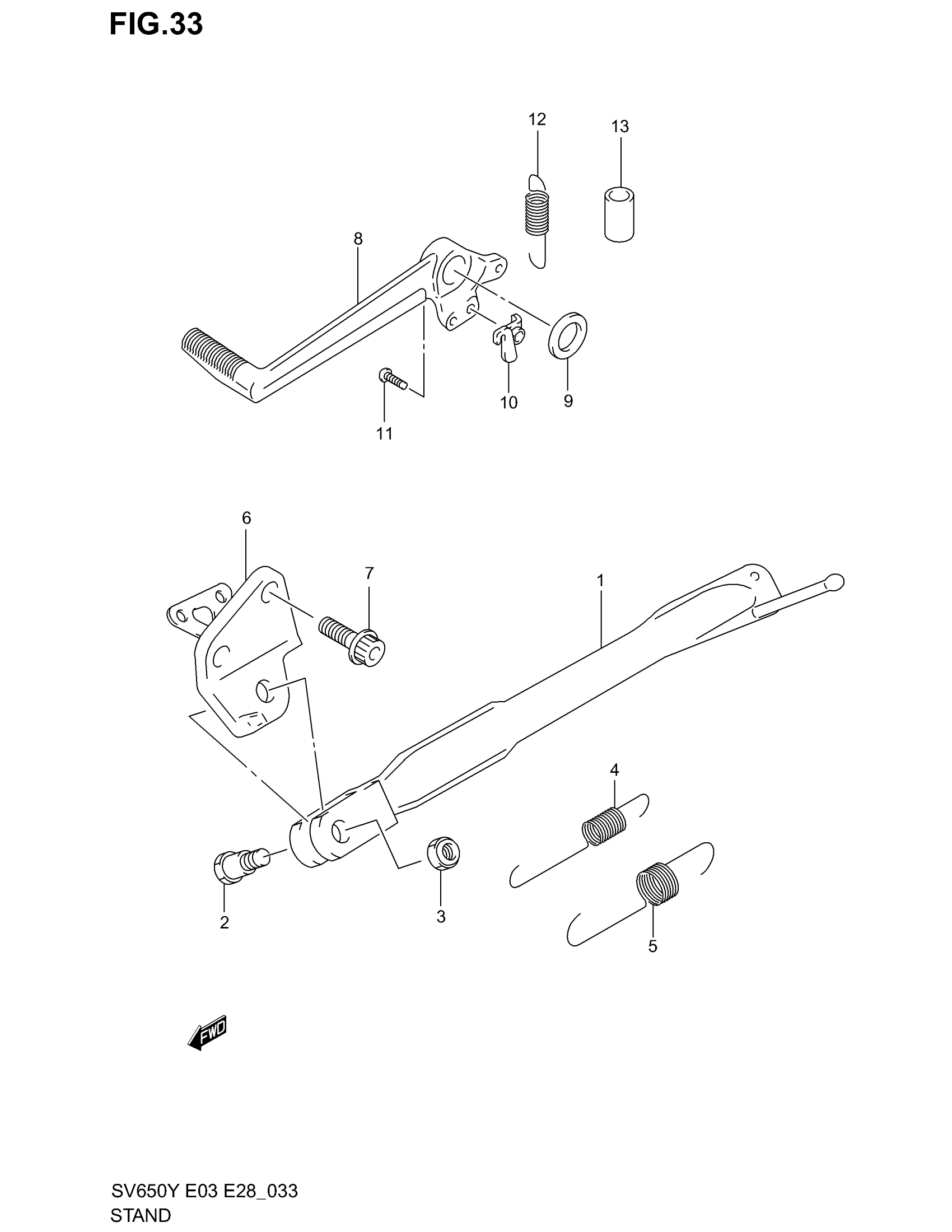

Suzuki SV650 (2002) STAND Diagram
