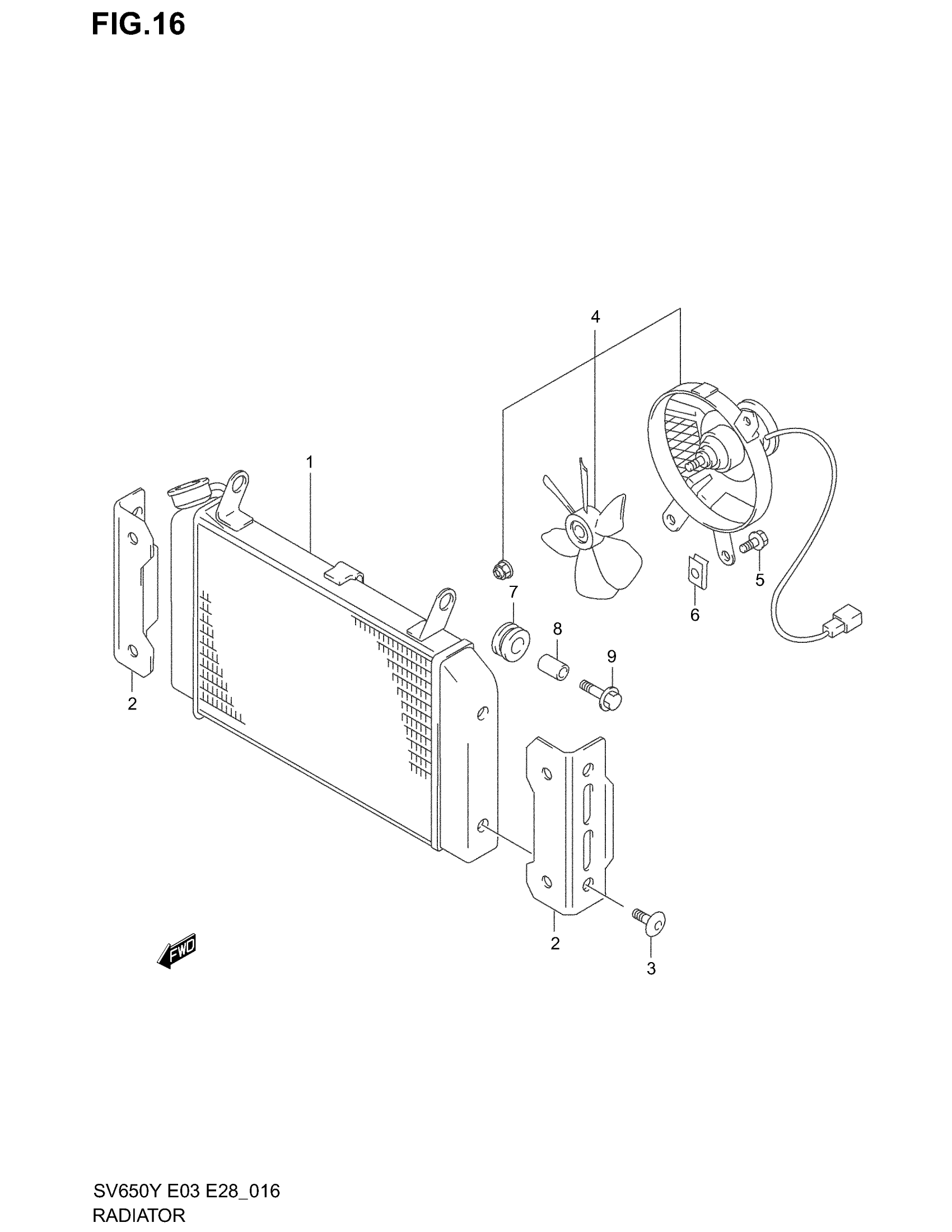

Suzuki SV650 (2002) RADIATOR Diagram

#

Description

Price

1

RADIATOR ASSY, WATER | SV650X/Y/K1/K2

17710-19F10

Unavailable

1

RADIATOR ASSY, WATER | SV650SX/SY/SK1/SK2

17710-19F00

Unavailable

2

COVER, RADIATOR | SV650X/Y/K1/K2

17761-19F00

Unavailable

3

SCREW (6X12) | SV650X/Y/K1/K2

09139-06027

$2.00

4

FAN ASSY, RADIATOR

17800-19F10

Unavailable

5

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

6

NUT

09148-06015

$2.80

7

CUSHION

09320-10042

$2.81

8

SPACER (6.5X10X12)

09180-06290

$2.01

9

BOLT (6X25)

09118-06097

$2.50
