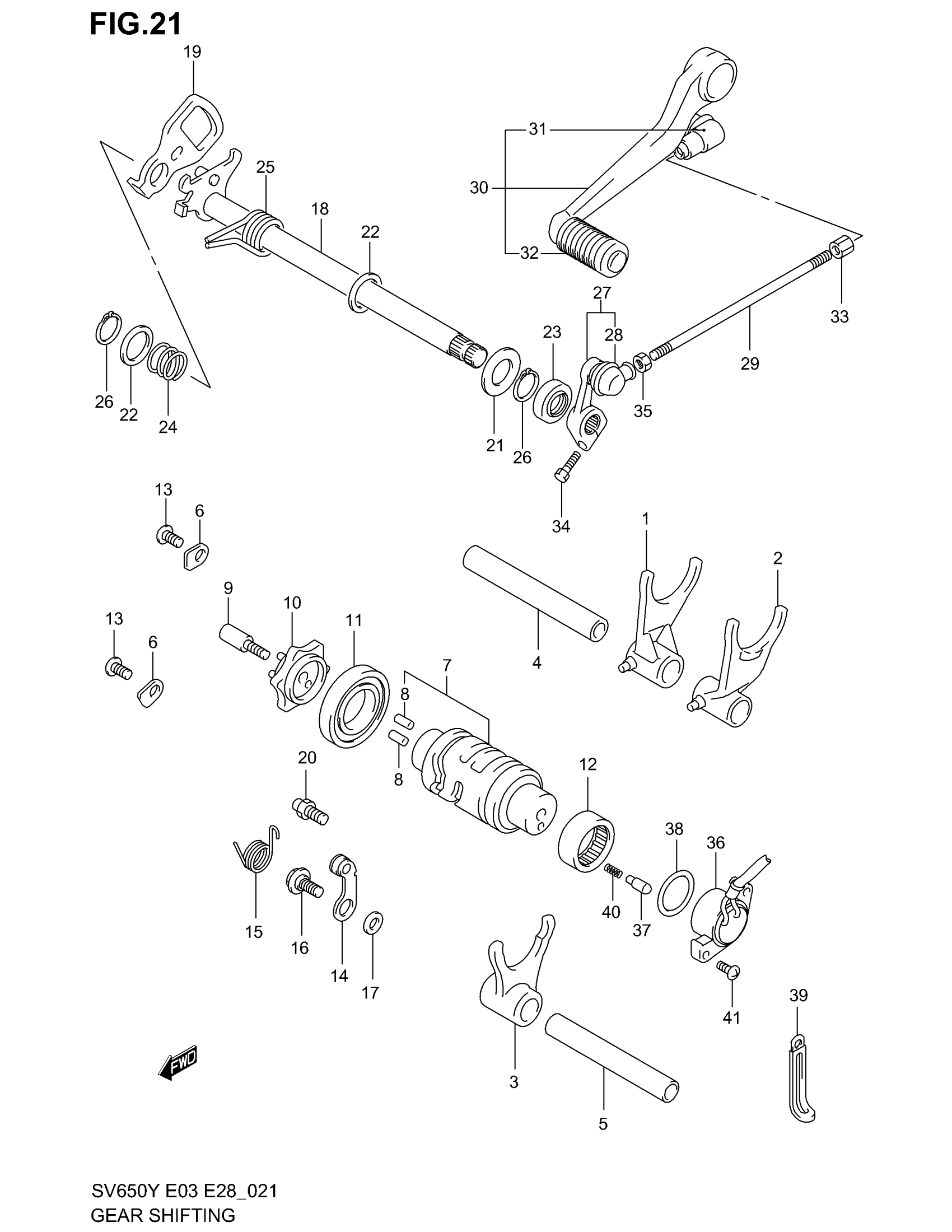

Suzuki SV650 (2002) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT NO.1

25211-42E10

$105.28

2

FORK, GEAR SHIFT NO.2

25221-42E10

$105.28

3

FORK, GEAR SHIFT NO.3

25231-42E10

$108.08

4

SHAFT,GEAR SHIFT FORK (L:110)

25411-26D01

$28.98

5

SHAFT,GEAR SHIFT FORK NO.1

25411-44B00

$35.78

6

RETAINER, SHIFT CAM BEARING

24741-21A00

$2.80

7

CAM,GEAR SHIFT | Includes Item(s) 8

25310-19F00

Unavailable

8

PIN (4X13.8)

04221-04089

$1.10

9

PIN, SHIFT CAM DRIVEN GEAR

25312-12C00

$9.08

10

PLATE, GEAR SHIFT CAM

25381-19F00

Unavailable

11

BEARING (25X47X8)

09262-25006

$23.05

12

BEARING (25X32X12)

09263-25018

$19.30

13

SCREW This part replaces 02112-06123.

02112-0612A

$1.43

14

STOPPER, GEAR SHIFT CAM

25350-24B00

$16.77

15

SPRING, STOPPER ARM

25355-20F00

Unavailable

16

BOLT (6X14.3)

09111-06041

$2.63

17

WASHER

08211-06141

$1.61

18

SHAFT, GEAR SHIFT

25510-19F00

Unavailable

19

PLATE, GEAR SHIFT CAM DRIVE

25512-13E11

$40.17

20

STOPPER, ARM | MODEL X/Y This part replaces 25671-01000.

25671-01011

$4.09

20

STOPPER, RETURN SPRING | MODEL K1/K2

25671-01011

$4.09

21

WASHER (14X29X0.8)

09160-14016

$1.91

22

SHIM

09181-14167

$2.55

23

OIL SEAL (14X22X6)

09283-14006

$6.04

24

SPRING

09440-17009

$1.73

25

SPRING

09444-20001

$4.80

26

CIRCLIP, SHIFT SHAFT This part replaces 08331-31146.

08331-3114A

$1.89

27

ARM,GEAR SHIFT | Includes Item(s) 28 This part replaces 25520-29B00.

25520-29B01

$34.92

28

.COVER, DUST This part replaces 25526-47000.

25526-47001

$4.98

29

ROD, GEAR SHIFT (L:150) | SV650X/Y/K1/K2

25525-19F00

$9.36

29

ROD, GEAR SHIFT (L:175) | SV650SX/SY/SK1/SK2

25525-05A10

$9.98

30

LEVER ASSY,GEAR | Includes Item(s) 31 - 32 This part replaces 25600-33E00.

25600-33E01

$130.72

31

.COVER, DUST This part replaces 25526-47000.

25526-47001

$4.98

32

RUBBER, GEAR SHIFT PEDAL

25652-20C00

$4.98

33

NUT

09140-06011

$1.37

34

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.77

35

.NUT

08310-00067

$1.83

36

BASE ASSY, GEAR SHIFT TERMINAL

37720-20F00

Unavailable

37

CONTACT

09209-05011

$2.02

38

O RING (OD:2.4,ID:25.7)

09280-26007

$5.97

39

CLAMP (L:82)

09404-08206

$4.03

40

SPRING

09440-04010

$1.52

41

.SCREW This part replaces 02112-05163.

02112-0516A

$1.45
