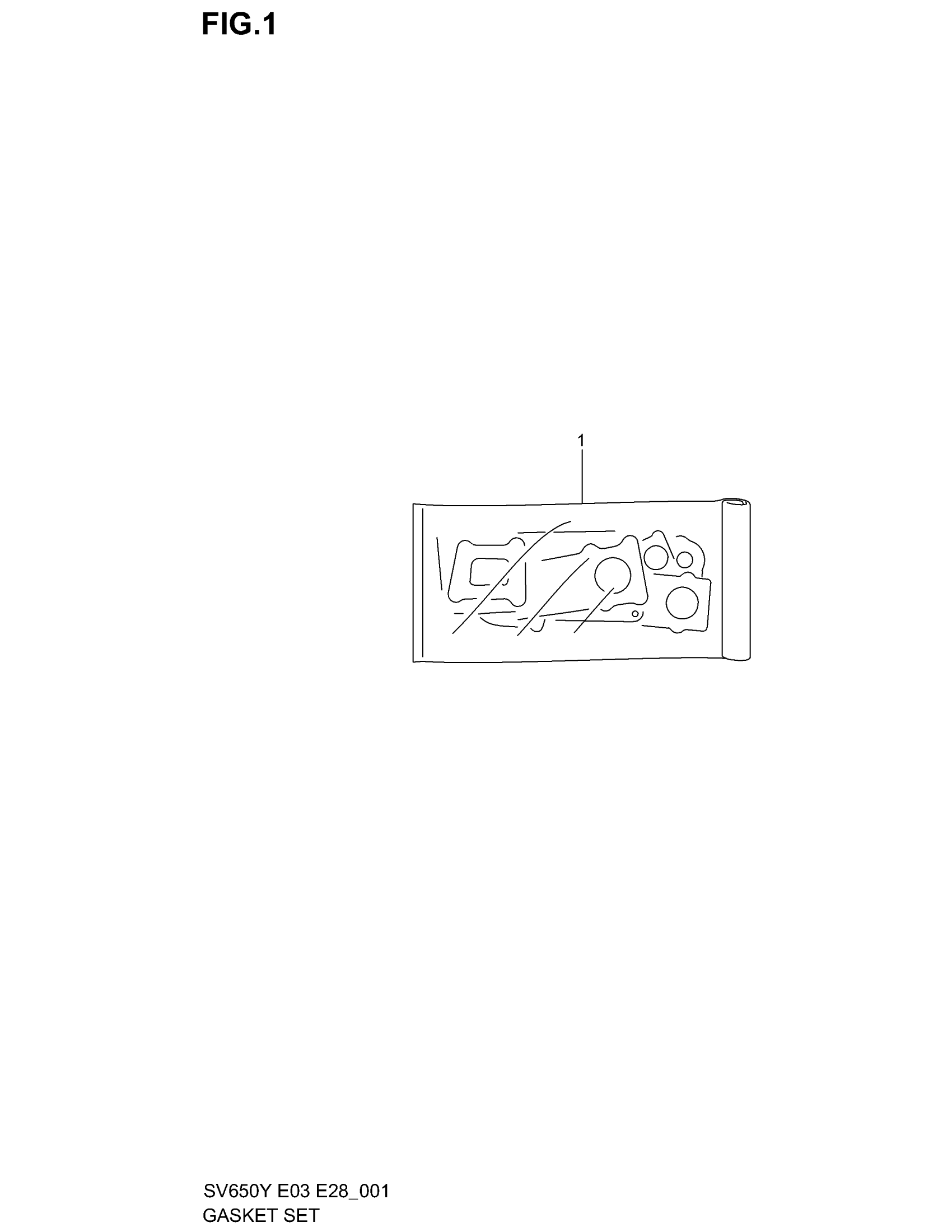

Suzuki SV650 (2002) GASKET SET Diagram

#

Description
Price

1

GASKET SET | MODEL X/Y OPT This part replaces 11401-20860.

11401-20862

Unavailable

1

GASKET SET | MODEL K1/K2 OPT; Includes Item(s) 2 - 13 This part replaces 11401-20861.

11401-20862

Unavailable

2

.GASKET,CYLINDER HEAD | NOT SHOWN

11141-20F00

$40.97

3

.GASKET,CYLINDER HEAD COVER | NOT SHOWN This part replaces 11173-19F00.

11173-19F01

$31.21

4

GASKET, CYLINDER FRONT | NOT SHOWN

11241-19F00

$12.04

5

.GASKET,CYLINDER RR | NOT SHOWN

11242-19F00

$12.51

6

GASKET, CLUTCH COVER INNER | NOT SHOWN

11482-19F00

Unavailable

7

.GASKET,MAGNETO COVER | NOT SHOWN

11483-19F00

$11.70

8

O RING, CLUTCH COVER OUTER | MODEL X/Y NOT SHOWN This part replaces 11484-19F00.

11484-19F01

$18.17

8

O RING, CLUTCH COVER OUTER | MODEL K1/K2 NOT SHOWN

11484-19F01

$18.17

9

.GASKET,TENSIONER ADJUSTER | NOT SHOWN

12837-24A10

$2.97

10

.GASKET,EXHAUST PIPE | NOT SHOWN

14181-22D01

$9.25

11

WASHER | NOT SHOWN

09161-11008

$4.06

12

O RING (D:3.1,ID:22.7) | NOT SHOWN

09280-22008

$2.10

13

.O-RING (D:2.4,ID:47X42) | NOT SHOWN This part replaces 09280-46006.

09280-46007

$6.33
