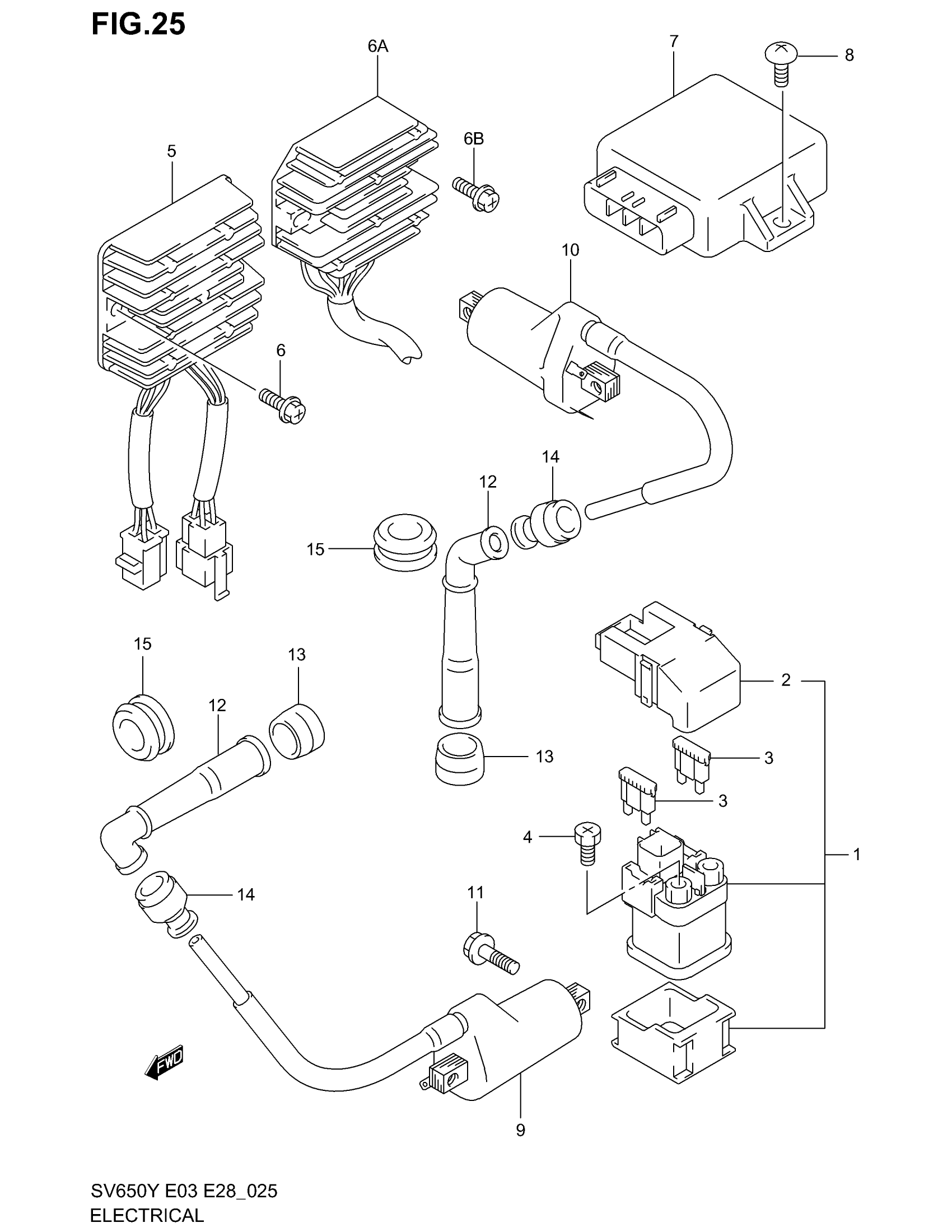

Suzuki SV650 (2002) ELECTRICAL Diagram

RELAY ASSY,STARTING MOTOR | Includes Item(s) 2 - 3 This part replaces 31800-21E20.

31800-21E30

$61.62

.COVER This part replaces 31861-21E20.

31861-47E00

$18.23

FUSE (30A)

09481-30101

$2.28

SCREW (6X8)

09128-06013

$1.24

RECTIFIER ASSY | MODEL X/Y/K1 This part replaces 32800-24B01.

32800-24B11

$319.40

SCREW | MODEL X/Y/K1 This part replaces 02162-06163.

02162-0616B

$2.06

RECTIFIER ASSY | MODEL K2 This part replaces 32800-14F00.

32800-14F01

$382.73

BOLT | MODEL K2 This part replaces 02162-06203.

02162-0620C

$1.73

IGNITER ASSY

32900-20F10

Unavailable

SCREW This part replaces 03542-06163.

03541-0616A

$2.08

COIL ASSY, IGNITION

33410-19F00

$175.35

COIL ASSY, IGNITION

33420-19F00

$175.35

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.77

CAP, SPARK PLUG

33510-11D00

$32.72

SEAL, SPARK PLUG CAP

33541-23E01

$5.80

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$3.97

COVER,SPARK PLU This part replaces 33543-19F00.

33543-19F01

$8.35
