2001 Yamaha SUV1200 (SV1200Z) Generator Diagram

← All diagrams

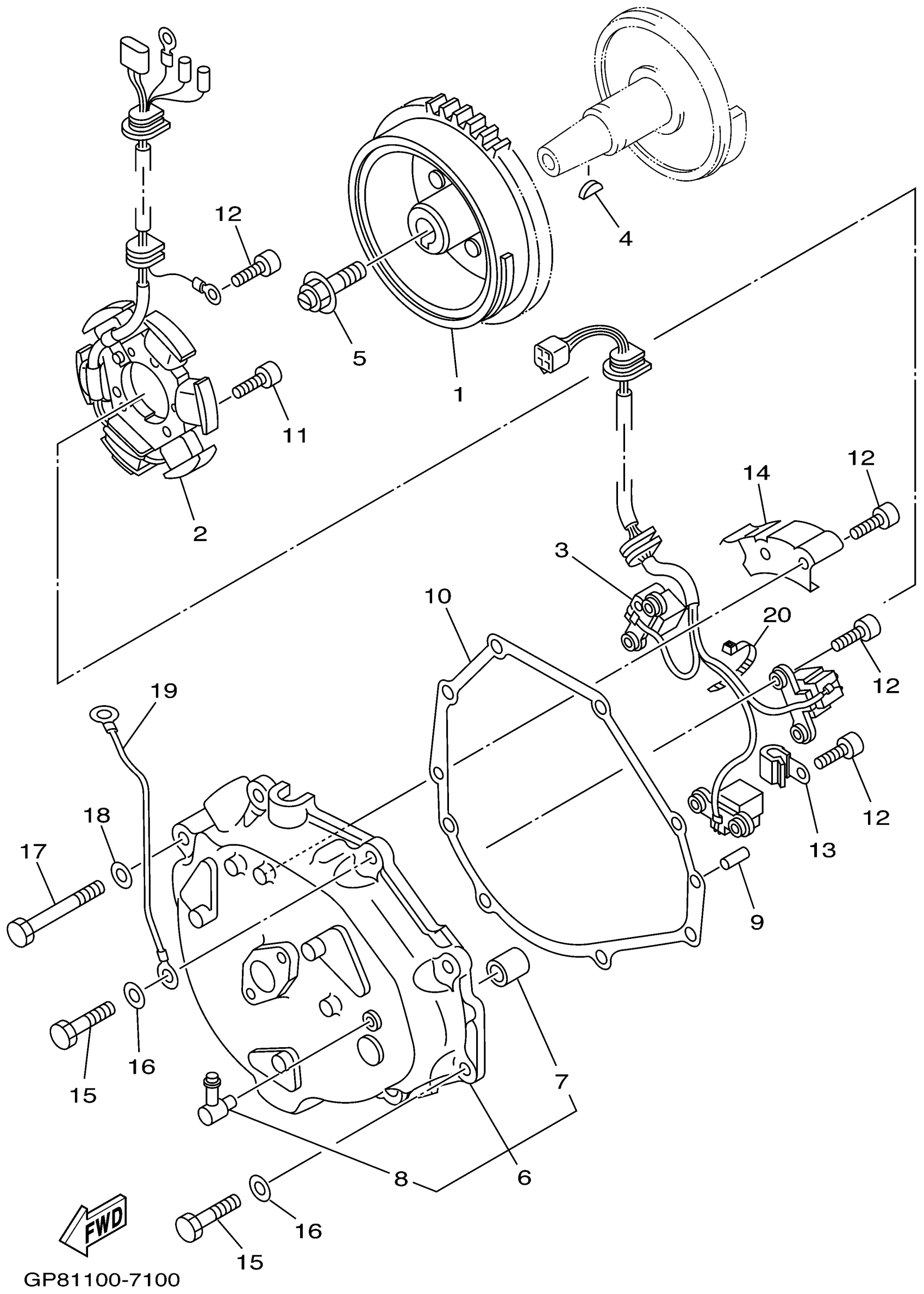

Find the part on the Generator diagram for your 2001 Yamaha SUV1200 (SV1200Z), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha SUV1200 (SV1200Z) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROTOR ASSY

65U-85550-01-00

1
Out of stock

2

STATOR ASSY

65U-85510-01-00

1
Out of stock

3

COIL, PULSER

65U-85580-00-00

1
Out of stock

4

KEY, WOODRUFF

90280-05001-00

1
Out of stock

5

BOLT(63M)

90109-10M72-00

1
Out of stock

6

COVER, FLYWHEEL

65U-81337-00-8S

1
Out of stock

7

. BUSH, SOLID

90380-12M29-00

1
Out of stock

8

. NIPPLE, HOSE

676-11372-00-00

1
Out of stock

9

PIN, DOWEL (614)

93606-12019-00

1
Out of stock

10

GASKET, HOLE COVER

63M-81365-00-00

1
Out of stock

11

BOLT,SOCKET

91317-06025-00

1
Out of stock

12

BOLT,SOCKET

91318-06014-00

1
Out of stock

13

CLAMP

90465-06M67-00

1
Out of stock

14

CLAMP

65U-81328-00-00

1
Out of stock

15

BOLT, HEXAGON (FJ1)

97080-08030-00

1
Out of stock

16

.. WASHER, PLATE

92990-08600-00

1
Out of stock

17

BOLT, HEXAGON

97095-08055-00

—
Out of stock

18

.. WASHER, PLATE

92990-08600-00

1
Out of stock

19

WIRE LEAD

6H5-82117-00-00

1
Out of stock

20

CLAMP

90465-10098-00

1
Out of stock
