- SV1200Z (SUV1200) GU53 2001
CONTROL CABLE

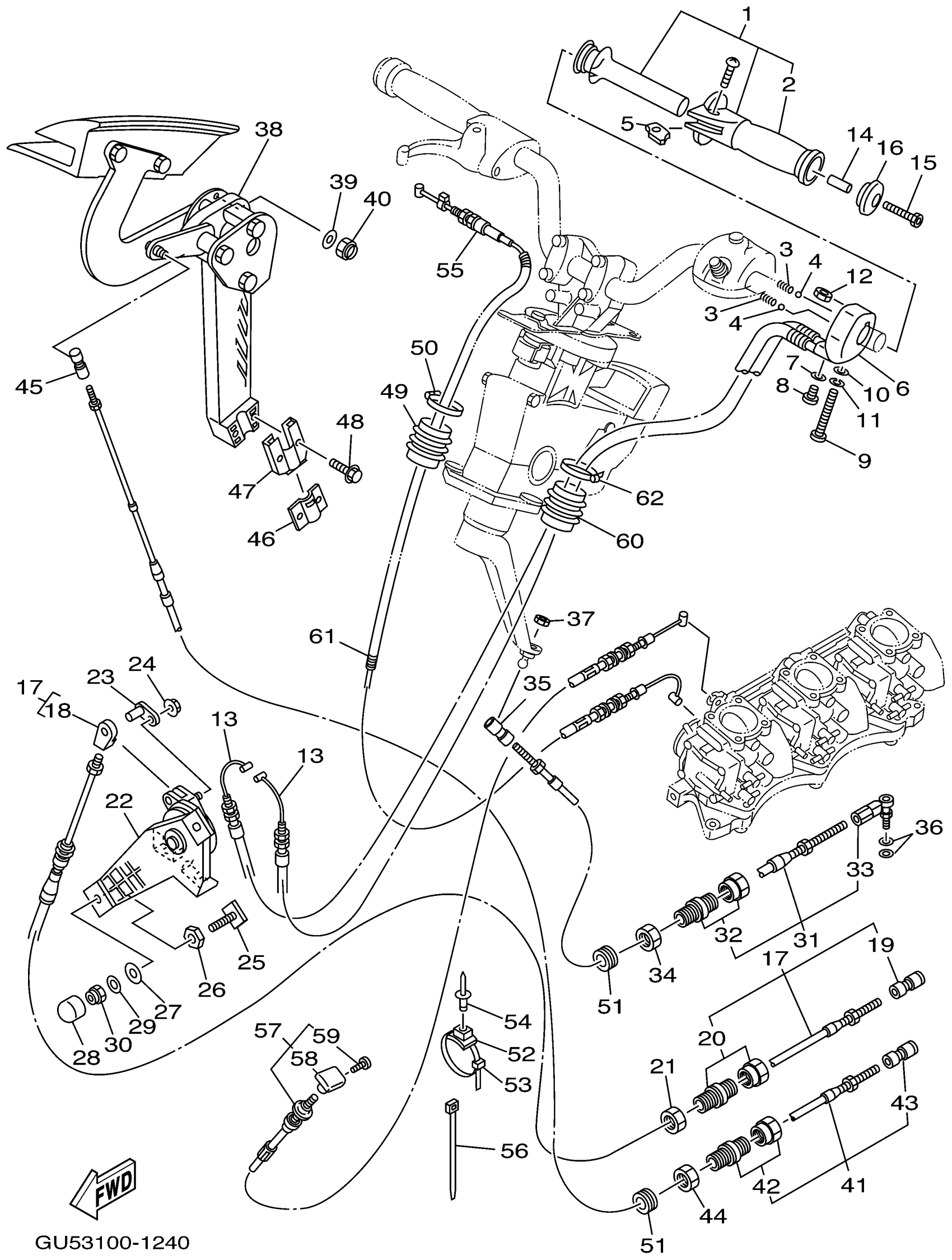

2001 Yamaha SUV1200 (SV1200Z) Control Cable Diagram
Find the part on the Control Cable diagram for your 2001 Yamaha SUV1200 (SV1200Z), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
4
BALL
GP7-U152R-00-00
5
LEVER ASSY
GP7-U151M-00-00
6
HOUSING ASSY
GP7-U152M-00-00
9
SCREW PAN HEAD
98580-06565-00
11
WASHER
9299R-06100-00
12
NUT, SPECIAL
GH1-U143B-00-00
13
CABLE, NOZZLE CONTROL 2
F0D-U153D-01-00
18
. END, CABLE
GH1-U046C-00-00
20
. CONNECTOR, CABLE
EU0-67267-10-00
22
REMOCON,NOZZLE 2
F0D-U153J-10-00
23
PIN
F0D-U152C-10-00
25
BOLT
90109-06907-00
26
NUT
90179-06977-00
28
CLING
90190-06902-00
31
CABLE, STEERING
F1D-61481-02-00
32
CONNECTOR, CABLE
GK5-67267-00-00
37
NUT
9538R-06700-00
38
REMO CON. LEVER ASSY.
F0D-6134A-04-00
41
CABLE, REVERSE
GU5-U149C-00-00
42
. CONNECTOR, CABLE
EU0-67267-10-00
49
GROMMET
GU5-6822E-00-00
60
GROMMET
GU5-6822E-00-00
