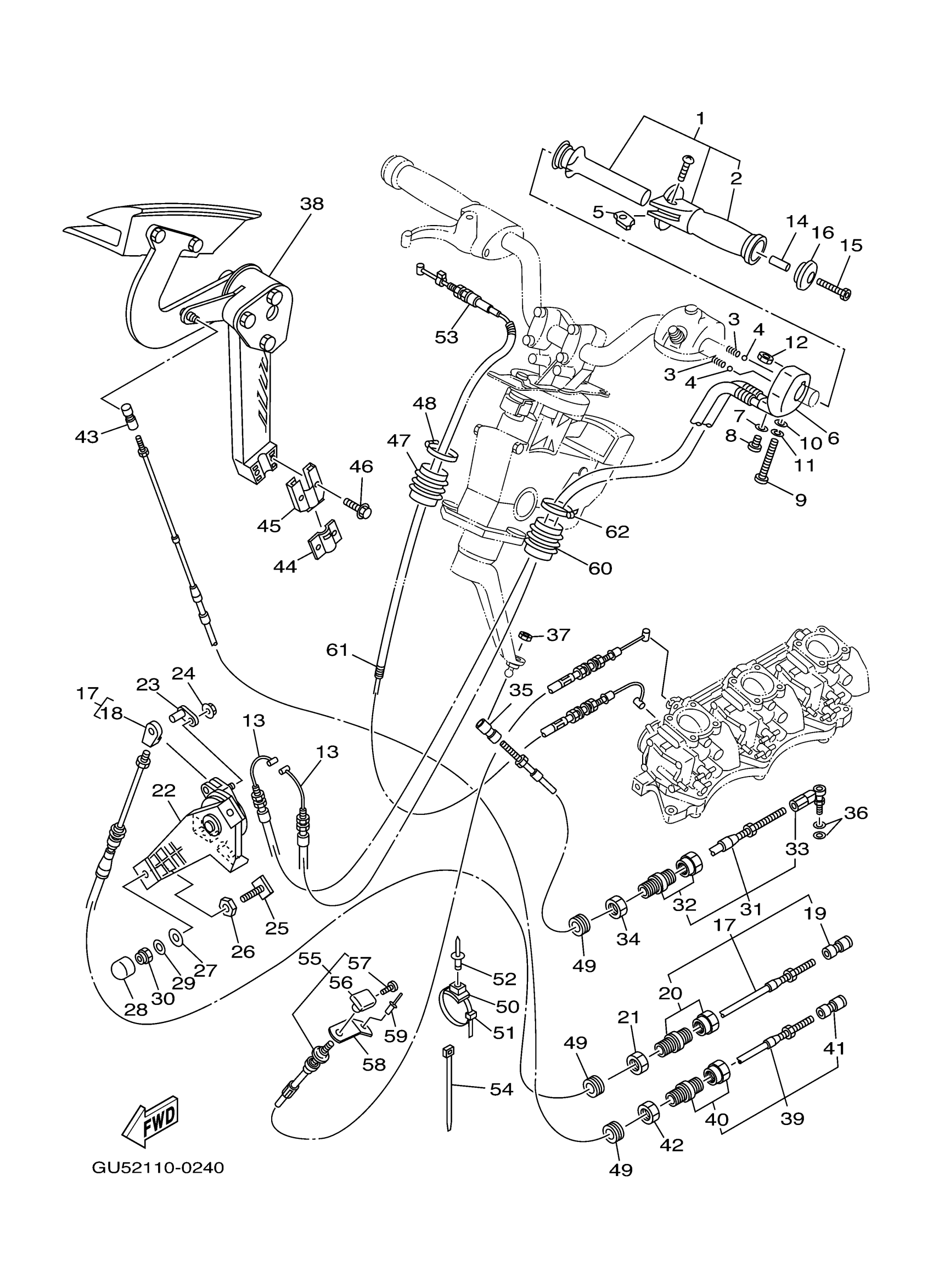

Yamaha SV1200Y (SUV1200) GU52 2000 CONTROL CABLE Diagram

#

Description
Price

1

GRIP, HANDLE ASSY.

GP7-U157A-00-00

$454.53

2

. GRIP, HANDLE

GP7-U155C-00-00

$58.88

3

SPRING

GP7-U152P-00-00

$12.86

4

BALL

GP7-U152R-00-00

Unavailable

5

LEVER ASSY

GP7-U151M-00-00

Unavailable

6

HOUSING ASSY

GP7-U152M-00-00

Unavailable

7

WASHER, PLAIN (646)

92990-04600-00

$0.91

8

SCREW, BINDING (M01)

98980-04010-00

$5.02

9

SCREW PAN HEAD

98580-06565-00

Unavailable

10

WASHER, PLAIN (646)

92990-06600-00

$1.84

11

WASHER

9299R-06100-00

Unavailable

12

NUT, SPECIAL

GH1-U143B-00-00

Unavailable

13

CABLE, NOZZLE CONTROL 2

F0D-U153D-01-00

Unavailable

14

COLLAR

90387-05800-00

$3.86

15

BOLT, HEXAGON SOCKET HEAD

90110-05908-00

$1.83

16

GRIP, END

GP7-U155F-00-00

$2.88

17

CABLE,NOZZLE CONTROL 3

GU5-6153E-09-00

$333.32

18

. END, CABLE

GH1-U046C-00-00

Unavailable

19

SHAFT,JOINT BALL

EU0-61461-30-00

$45.13

20

. CONNECTOR, CABLE

EU0-67267-10-00

Unavailable

21

. NUT, DRAIN 1

EU0-62241-30-00

$10.49

22

REMOCON,NOZZLE 2

F0D-U153J-10-00

Unavailable

23

PIN

F0D-U152C-10-00

Unavailable

24

NUT, NYLON

9572R-06300-00

$2.80

25

BOLT

90109-06907-00

Unavailable

26

NUT

90179-06977-00

Unavailable

27

WASHER, PLATE

90201-06906-00

$2.80

28

CLING

90190-06902-00

Unavailable

29

WASHER

9299R-06200-00

$0.43

30

NUT, NYLON

9572R-06300-00

$2.80

31

CABLE, STEERING

F1D-61481-02-00

Unavailable

32

CONNECTOR, CABLE

GK5-67267-00-00

Unavailable

33

. STUD, JOINT BALL

F1B-61461-02-00

$95.44

34

. NUT, DRAIN 1

EU0-62241-30-00

$10.49

35

SHAFT,JOINT BALL

GK5-U146F-00-00

$23.31

36

WASHER, PLATE

90201-06906-00

$2.80

37

NUT(650)

95380-06700-00

Unavailable

38

REMOCON. LEVER ASSY

99999-03344-00

Unavailable

39

CABLE, REVERSE

GU5-U149C-00-00

Unavailable

40

. CONNECTOR, CABLE

EU0-67267-10-00

Unavailable

41

SHAFT,JOINT BALL

EU0-61461-30-00

$45.13

42

. NUT, DRAIN 1

EU0-62241-30-00

$10.49

43

SHAFT,JOINT BALL

EU0-61461-30-00

$45.13

44

STOPPER, CABLE

GH1-61468-01-00

$8.32

45

HOLDER, STOPPER

GU5-6146K-10-00

$87.86

46

BOLT, WITH WASHER

90119-069UJ-00

$2.80

47

GROMMET

GU5-6822E-00-00

Unavailable

48

BAND

90601-200U1-00

$2.77

49

GROMMET

90480-279U1-00

$11.35

50

CLAMP COMP (EU0)

90600-91736-00

Unavailable

51

CLAMP

90464-32801-00

$1.23

52

RIVET, BLIND

90267-48802-00

$1.98

53

CABLE, THROTTLE

F1D-67252-00-00

$157.56

54

CLAMP

90464-32801-00

$1.23

55

CABLE, CHOKE

GU5-67242-01-00

$163.62

56

. KNOB

EW2-67243-00-00

$13.33

57

. SCREW

90149-03930-00

$1.21

58

PLATE, CHOKE

GU5-U824D-00-00

Unavailable

59

RIVET, BLIND

90267-48802-00

$1.98

60

GROMMET

GU5-6822E-00-00

Unavailable

61

TUBE, 2

F0D-6773E-00-00

$16.99

62

BAND

90601-200U1-00

$2.77
