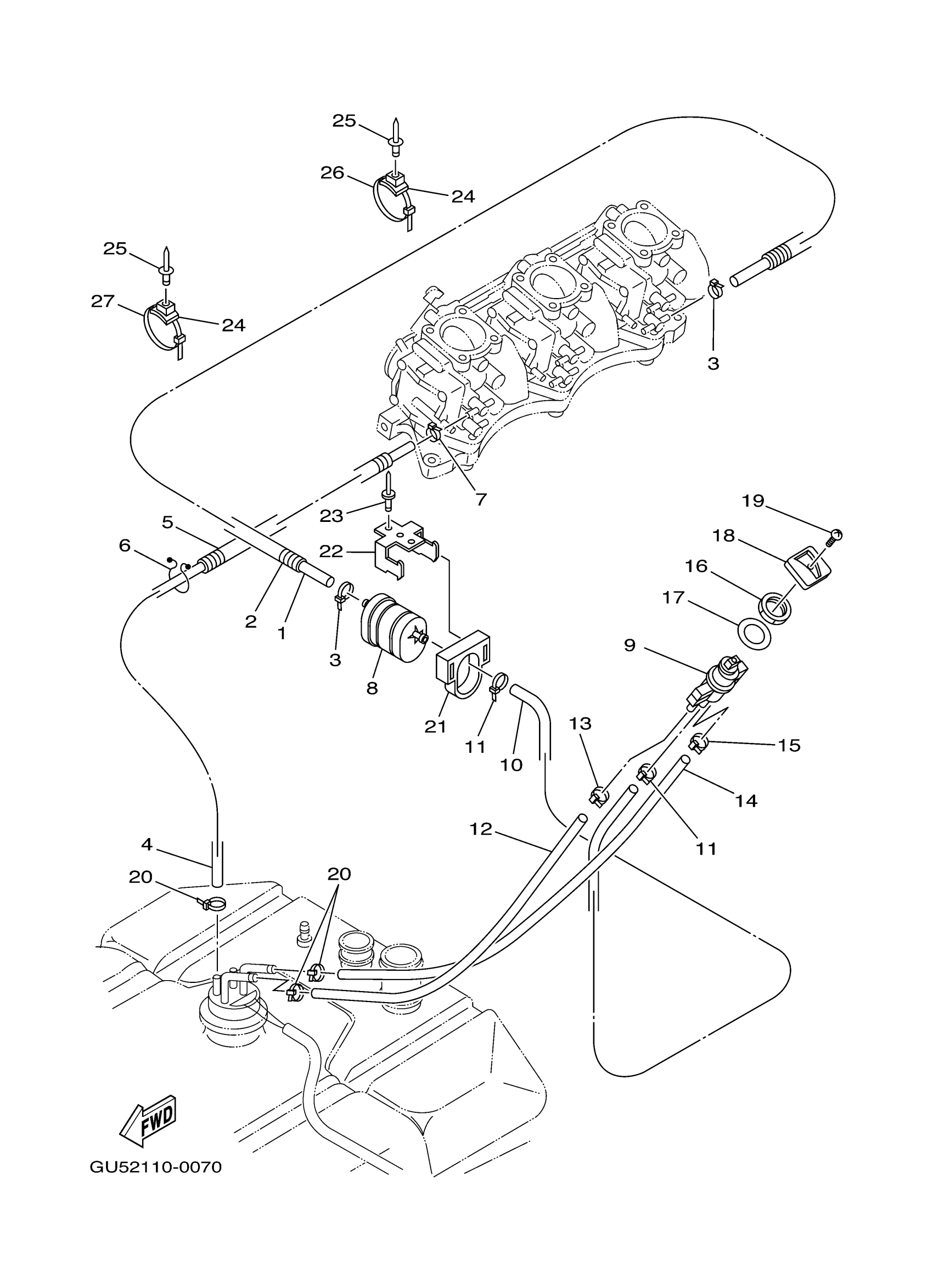

Yamaha SV1200C (SUV1200) GU5A 2004 FUEL Diagram

#

Description
Price

1

HOSE )L1400)

90445-11M59-00

$49.29

2

HOSE

90446-17MA7-00

Unavailable

3

CLAMP

90465-10098-00

$1.68

4

HOSE (L910)

90445-11M60-00

Unavailable

5

HOSE (L200)

90446-17MA8-00

Unavailable

6

CLAMP

90464-13M54-00

Unavailable

7

CLAMP

90465-10098-00

$1.68

8

FILTER ASSY

66V-24560-01-00

$32.97

9

FUEL COCK ASSY 1

66V-24500-02-00

$63.62

10

HOSE

90445-11M71-00

Unavailable

11

CLAMP

90465-10098-00

$1.68

12

HOSE

90445-11M71-00

Unavailable

13

CLAMP

90465-10098-00

$1.68

14

HOSE

90445-11M71-00

Unavailable

15

CLAMP

90465-10098-00

$1.68

16

NUT, HEXAGON (1E6)

90170-22187-00

Unavailable

17

WASHER, PLATE

90202-229U1-00

$14.35

18

LEVER, COCK

F0D-6777C-00-00

$11.48

19

SCREW, BIND

98980-04008-00

$3.05

20

CLAMP

90465-10098-00

$1.68

21

HOLDER

EU0-67817-00-00

$13.33

22

BRACKET, FUEL FILTER

FN8-67816-00-00

$16.99

23

RIVET, BLIND

90267-489U2-00

$1.43

24

CLAMP COMP (EU0)

90600-91736-00

Unavailable

25

RIVET, BLIND

90267-48802-00

$1.98

26

CLAMP

90464-32801-00

$1.23

27

BAND

90601-200U2-00

$3.16
