ENGINE HATCH 2

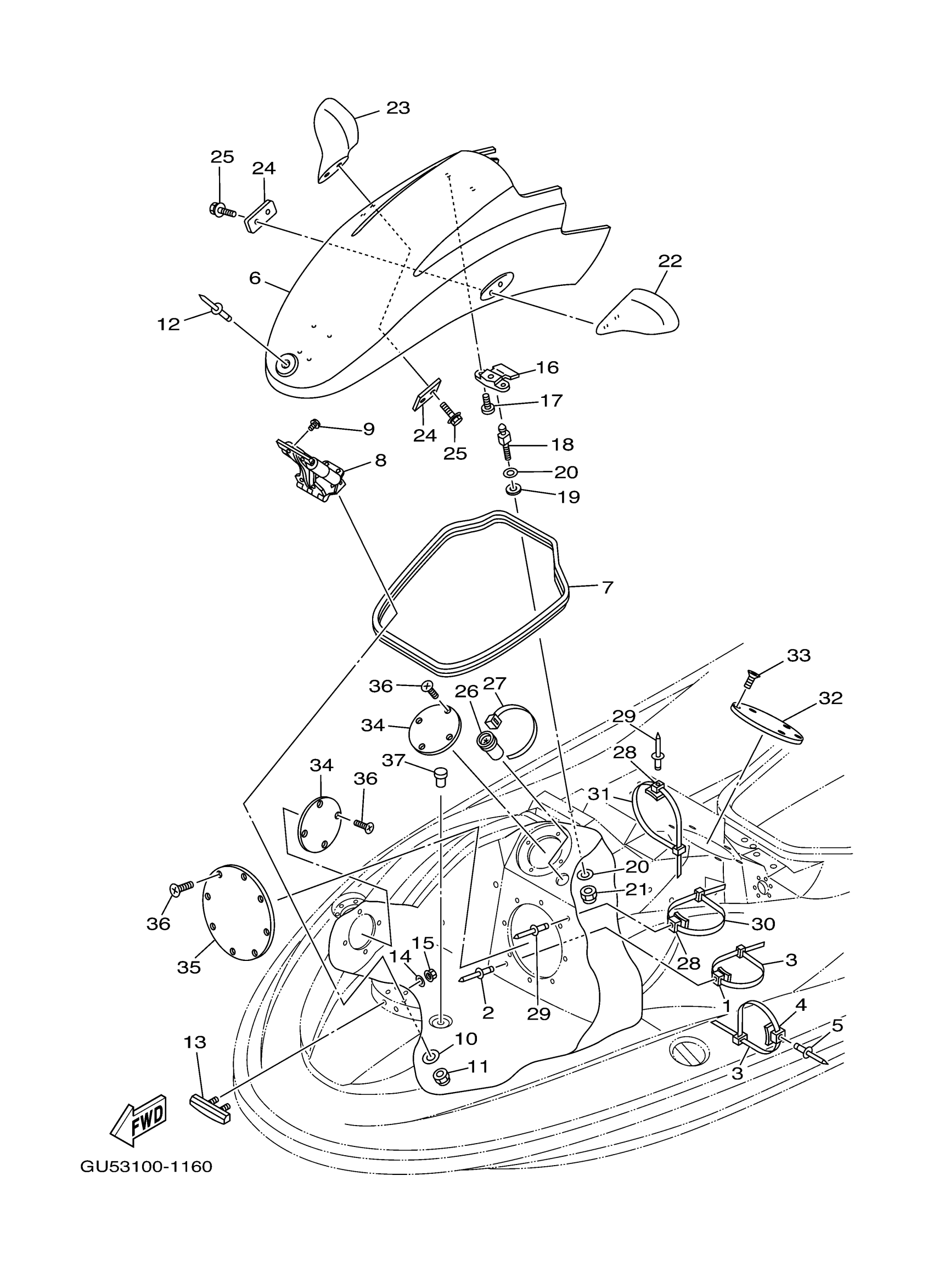

2004 Yamaha SUV1200 (SV1200C) Engine Hatch 2 Diagram
Find the part on the Engine Hatch 2 diagram for your 2004 Yamaha SUV1200 (SV1200C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
3
CLAMP
90464-99800-00
6
LID, ENGINE ROOM
F0D-U517B-10-P7
7
PACKING 1
GU5-U2663-00-00
8
HINGE ASSY.
F0D-6515A-04-00
9
BOLT, WITH WASHER
90119-06966-00
13
PRATE, HINGE LID
F0D-6518E-01-00
16
LOCK, LID
F0D-6517C-04-00
24
PLATE
F0D-U5646-00-00
32
COVER, INSPECTION 2
GP1-U7228-00-00
34
COVER, INSPECTION 1
GP1-U7227-00-00
35
COVER INSPECTION
GU5-U7861-00-00
