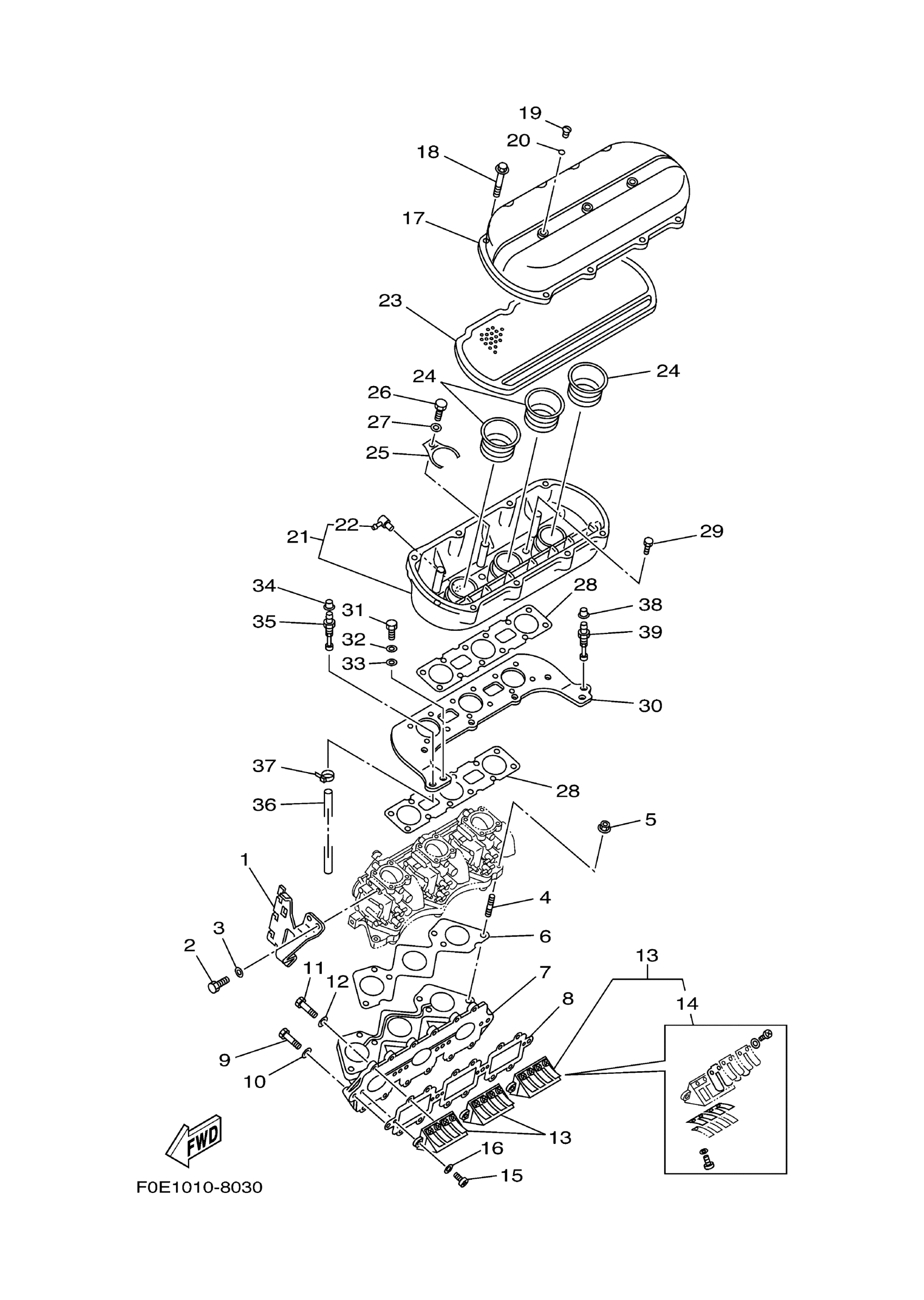

Yamaha SV1200B (SUV1200) GU57 2003 INTAKE Diagram

#

Description
Price

1

PLATE

65U-14527-01-00

Unavailable

2

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

3

WASHER, PLAIN (646)

92990-06600-00

$1.84

4

BOLT, STUD

90116-08M60-00

$4.55

5

NUT

90179-08M15-00

$6.37

6

GASKET

65U-13556-00-00

$49.49

7

MANIFOLD, INTAKE

65U-13555-00-8S

$362.11

8

GASKET

65U-13566-00-00

$12.59

9

BOLT(3RV)

97014-06035-00

$1.54

10

WASHER, PLAIN (646)

92990-06600-00

$1.84

11

BOLT(62Y)

97013-06025-00

$1.35

12

WASHER, PLAIN (646)

92990-06600-00

$1.84

13

REED VALVE ASSY

65U-13610-00-00

Unavailable

14

. REED SET

65U-W0004-00-00

Unavailable

15

SCREW, PAN HEAD(6B0)

97885-05016-00

$4.09

16

WASHER, PLAIN (646)

92990-05600-00

Unavailable

17

COVER, CARBURETOR 1

65U-14283-00-00

Unavailable

18

BOLT

90109-05MA0-00

Unavailable

19

GROMMET

62T-14435-00-00

$3.70

20

. O-RING

93210-13M63-00

$3.52

21

COVER, CARBURETOR 2

65U-14284-02-8S

Unavailable

22

NOZZLE

6E5-13552-01-00

$6.00

23

ELEMENT, AIR CLEANER

65U-14451-00-00

Unavailable

24

FUNNEL, AIR

65U-14469-00-00

Unavailable

25

PLATE

65U-14477-00-00

$6.36

26

BOLT (682)

97095-05010-00

Unavailable

27

WASHER, PLAIN (646)

92990-05600-00

Unavailable

28

GASKET, AIR COOLER COVER 1

65U-13674-00-00

$10.49

29

BOLT

90109-06M76-00

$2.49

30

PLATE

65U-14255-00-00

Unavailable

31

BOLT, HEXAGON DEEP RECESS

97D95-06014-00

$1.57

32

WASHER, PLAIN (646)

92990-06600-00

$1.84

33

WASHER, PLATE

90201-06M31-00

$2.80

34

CAP, GREASE NIPPLE

663-45119-01-00

Unavailable

35

NIPPLE, GREASE

61L-5169A-00-00

$7.40

36

HOSE (L445)

90445-09M21-00

Unavailable

37

CLAMP

90465-10098-00

$1.68

38

CAP, GREASE NIPPLE

663-45119-01-00

Unavailable

39

NIPPLE, GREASE

61L-5169A-00-00

$7.40
