2002 Yamaha SUV1200 (SV1200A) Electrical 2 Diagram

← All diagrams

Find the part on the Electrical 2 diagram for your 2002 Yamaha SUV1200 (SV1200A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

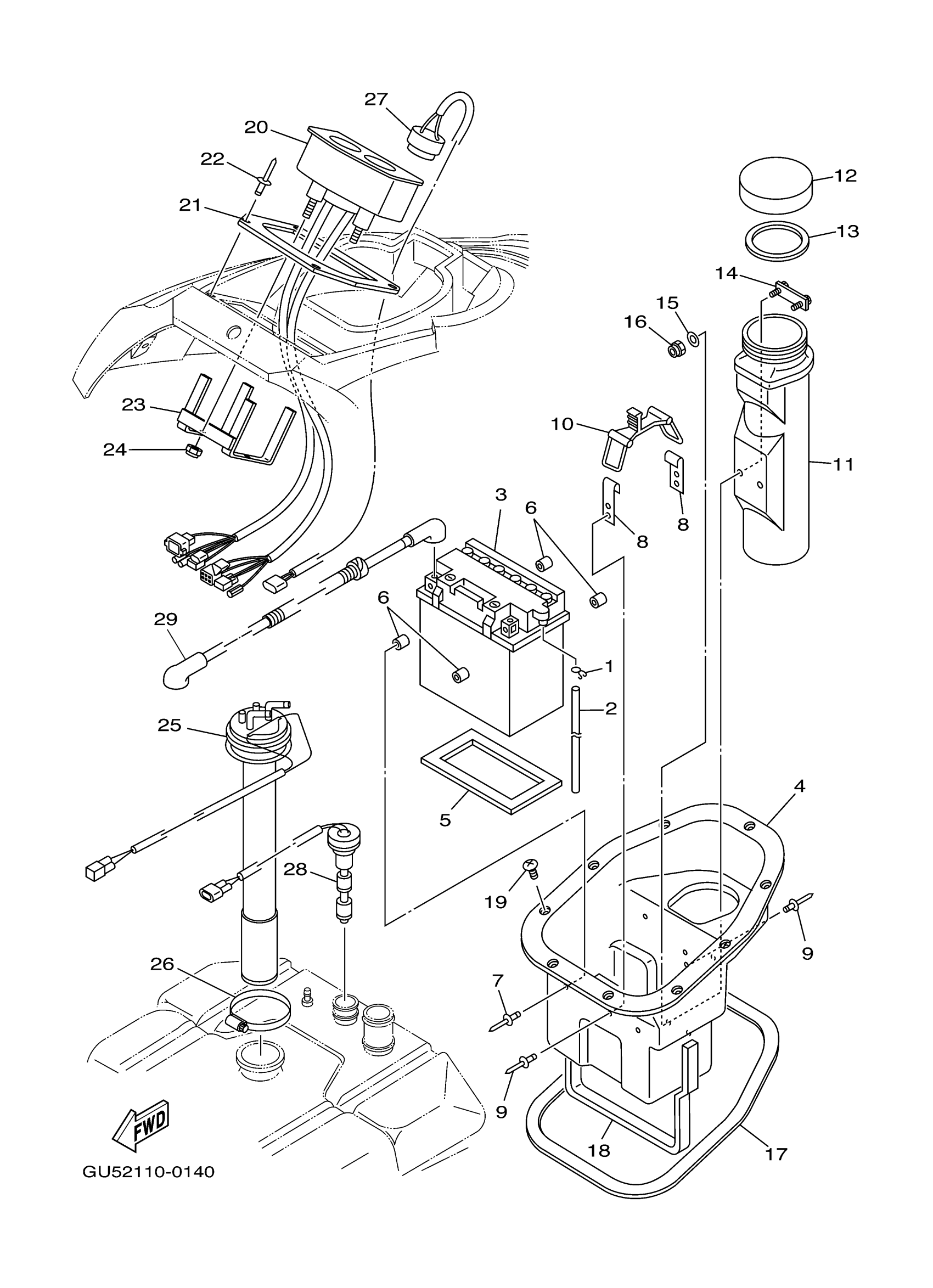

2002 Yamaha SUV1200 (SV1200A) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLIP

90467-089U1-00

1
Out of stock

2

HOSE, AIR VENT 3

GU2-U785H-00-00

1
Out of stock

3

BATTERY ASSY

EU0-82110-08-00

1
Out of stock

4

BATTERY CASE COMP.

GK5-68211-00-00

1
Out of stock

5

PAD, BATTERY

F1S-U8221-00-00

1
Out of stock

6

CUSHION, RUBBER

GK5-63768-00-00

1
Out of stock

7

RIVET, BLIND

90267-48802-00

1
Out of stock

8

HOOK A

GA7-65772-00-00

1
Out of stock

9

RIVET, BLIND(EU0,USA)

90267-489U9-00

1
Out of stock

10

BAND, BATTERY

GA7-68218-00-00

1
Out of stock

11

BOX, FIRE EXTINGUISHER

GK5-65983-00-00

1
Out of stock

12

. CAP, CASE

EW2-65912-00-00

1
Out of stock

13

. PACKING, CASE

EW2-65913-00-00

1
Out of stock

14

BRACKET FIRE EXTINGUISHER

GK5-6593H-00-00

1
Out of stock

15

WASHER

9299R-05200-00

1
Out of stock

16

NUT, FLANGE

9572R-05300-00

1
Out of stock

17

PACKING 48

90656-67105-00

1
Out of stock

18

PACKING 10

GK5-6266J-00-00

1
Out of stock

19

SCREW, TAPPING

97780-50014-00

—
Out of stock

20

METER ASSY

F0D-6820A-31-00

1
Out of stock

21

PLATE

GU5-68376-00-00

1
Out of stock

22

RIVET, BLIND

90267-489UE-00

1
Out of stock

23

BRACKET, METER

F0D-68238-10-00

1
Out of stock

24

NUT, FLANGE

9572R-05300-00

1
Out of stock

25

SENDER, FUEL

F0V-U824B-04-00

1
Out of stock

26

BAND, HOSE 62

90601-162U5-00

1
Out of stock

27

BUZZER

F1S-68341-00-00

1
Out of stock

28

SENDER, OIL

F0D-U824C-10-00

1
Out of stock

29

WIRE, LEAD

63N-82117-00-00

1
Out of stock
