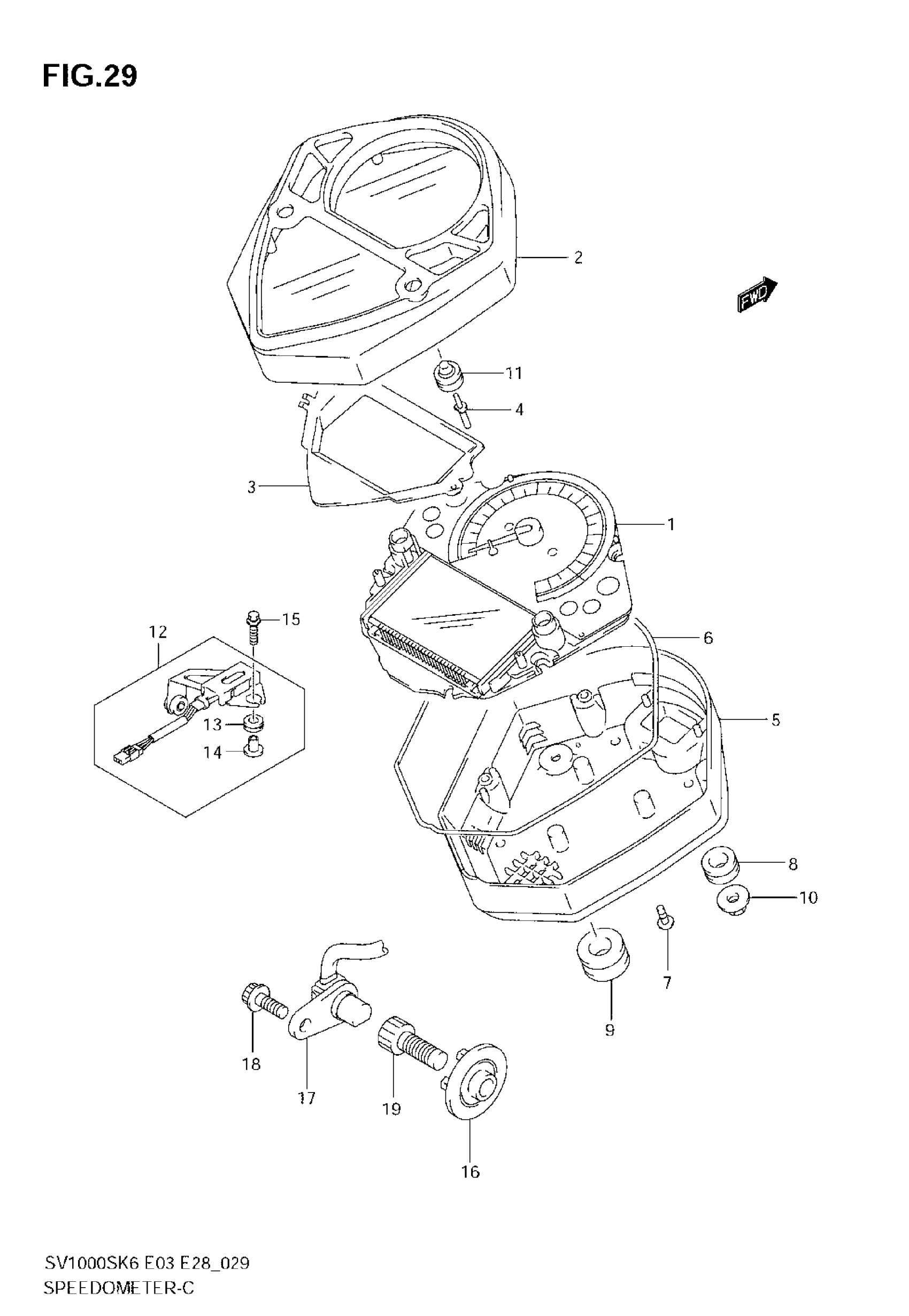

Suzuki SV1000 (2007) SPEEDOMETER (SV1000S) Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO) | MODEL K6

34120-16G80

Unavailable

1

SPEEDOMETER (MILE/KILO) | MODEL K7

34120-16GE0

Unavailable

1

SPEEDOMETER (KILO) | MODEL K6 E28

34120-16G60

Unavailable

1

SPEEDOMETER (KILO) | MODEL K7 E28

34120-16GC0

Unavailable

2

CASE, SPEEDOMETER UPPER

34150-16G00

Unavailable

3

PLATE, SPEEDOMETER

34125-16G00

Unavailable

4

KNOB, SPEEDOMETER

34124-16G00

$10.62

5

CASE, SPEEDOMETER LOWER

34152-16G00

$63.75

6

GASKET, METER CASE

34153-16G00

$17.22

7

CUSHION, SPEEDOMETER

34189-32B00

$6.53

8

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

$2.80

9

NUT This part replaces 09159-05044.

09159-05049

$2.50

10

SCREW, SPEEDOMETER

34183-16G30

$5.10

11

COVER, SPEEDOMETER KNOB

34126-16G00

Unavailable

12

RESISTOR ASSY | Includes Item(s) 13 - 14

36510-16G00

Unavailable

13

CUSHION, RESISTOR

09320-10015

$2.53

14

SPACER (6.5X10X11.6)

09180-06319

$4.92

15

BOLT, RESISTOR (6X25)

09116-06047

Unavailable

16

ROTOR,SPEED This part replaces 34981-35F00.

34981-38G01

$16.40

17

SENSOR, SPEED

34990-35F00

$120.25

18

BOLT, SPEED SENSOR

07120-0512B

$2.61

19

BOLT, SPEED ROTOR

07130-0825B

$3.04
