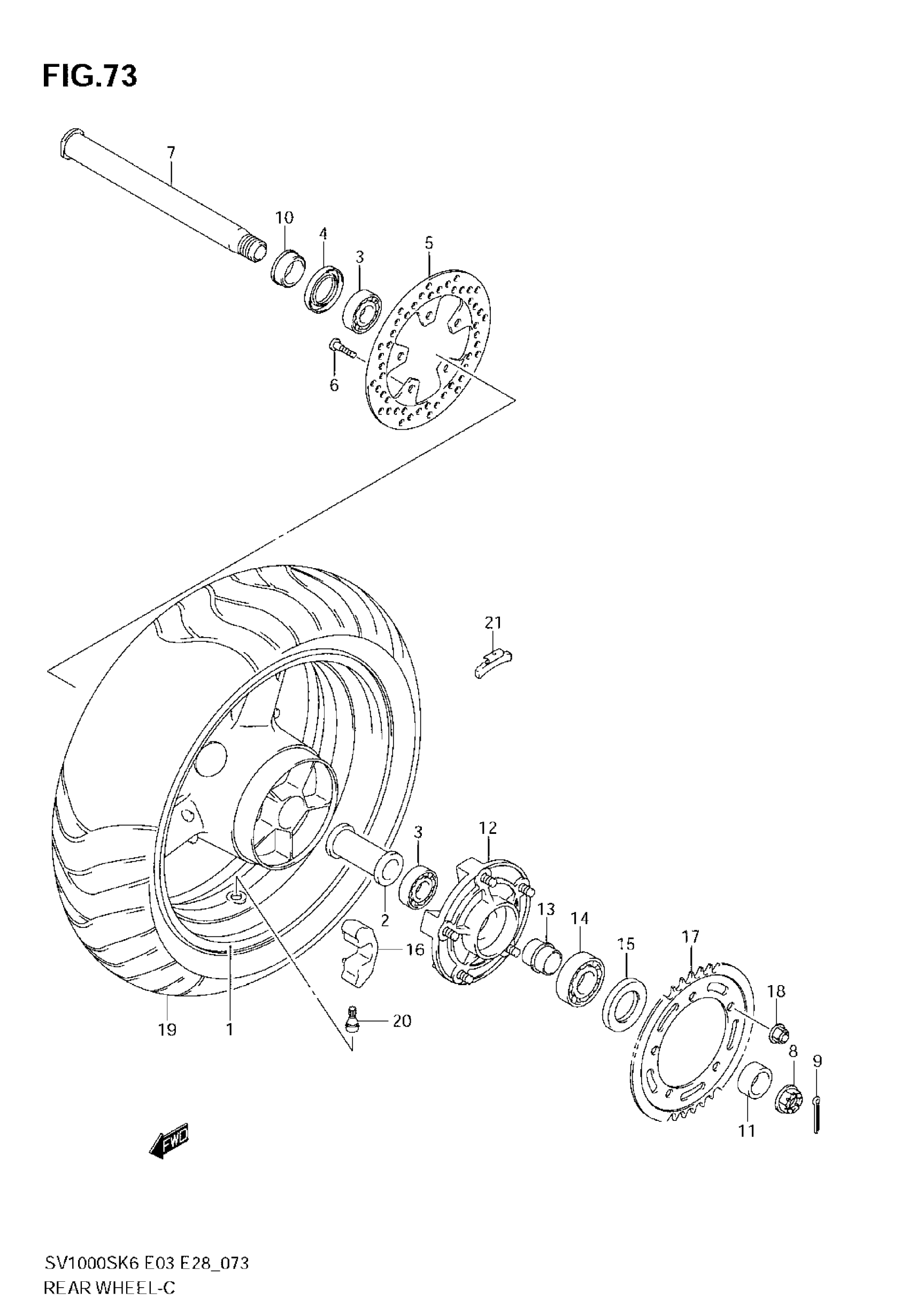

Suzuki SV1000 (2007) REAR WHEEL Diagram

#

Description
Price

1

WHEEL, REAR 17M/CXMT5.50 (BLACK) | MODEL K6

64111-35F11-019

Unavailable

1

WHEEL, REAR 17M/CXMT5.50 (BLACK) | MODEL K7

64111-35F01-019

Unavailable

2

SPACER,RR HUB BEARING This part replaces 64731-35F00.

64731-35F10

$48.41

3

BEARING This part replaces 09262-28043.

09262-28063

$19.52

4

SEAL,OIL (37X52X8) This part replaces 09284-37001.

09284-37002

$7.19

5

DISC,RR BRAKE

69211-18G00

$355.08

6

BOLT (8X33)

09106-08148

$4.33

7

AXLE, REAR

64711-33E10

$174.43

8

NUT, REAR AXLE

09141-25001

$21.60

9

PIN, COTTER | MODEL K6 This part replaces 04111-40408.

04111-4040A

$1.37

9

PIN, COTTER | MODEL K7

04111-4035A

$1.37

10

SPACER,REAR AXLE,R This part replaces 64741-35F00.

64741-35F10

$12.34

11

SPACER, AXLE LH

64751-35F00

$20.98

12

DRUM, RR SPROCKET This part replaces 64610-35F10.

64610-35F40

$346.25

13

RETAINER, SPROCKET DRUM

64733-35F00

$24.36

14

BEARING (32X65X17) This part replaces 09262-32007.

09262-32024

$35.55

15

SEAL (39X65X7)

09285-39001

$9.58

16

ABSORBER, HUB SHOCK

64651-35F00

$11.09

17

SPROCKET, REAR (NT:40)

64511-40F30

$124.10

18

NUT

08319-31107

$2.73

18

NUT | MODEL K7

08319-3110A

$2.73

19

TIRE, REAR 180/55 ZR17 (73W) (MICHELIN) | PURCHASE LOCALLY This part replaces 65110-16G10.

65110-32F00

Unavailable

20

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.10

21

BALANCER (10G)

43222-73H10

$6.57

21

BALANCER (20G)

43224-73H10

$4.02

21

BALANCER (30G)

43226-73H10

$4.69
