Description

Price

1

CASE, WATER PUMP | MODEL K3/K4 This part replaces 17410-02F40.

17410-02F41

$133.88

1

CASE, WATER PUMP | MODEL K5

17410-02F41

$133.88

2

IMPELLER,WATER PUMP

17491-16G00

$31.36

3

.SEAL,MECHANICAL This part replaces 17470-02F10.

17470-02F11

$26.75

4

OIL SEAL

09283-10005

$4.19

5

O RING

17435-02F00

$9.72

6

BEARING, WATER PUMP

09262-10016

$20.62

7

.E-RING This part replaces 08332-11086.

08332-1108A

$1.77

8

SCREW

09103-06213

$2.53

9

BOLT

09103-06239

$2.65

10

PIN

04211-09149

$1.64

11

HOSE(4.2X7X600) | 600!220 This part replaces 09352-42703-600.

09352-42704-600

$7.08

12

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.76

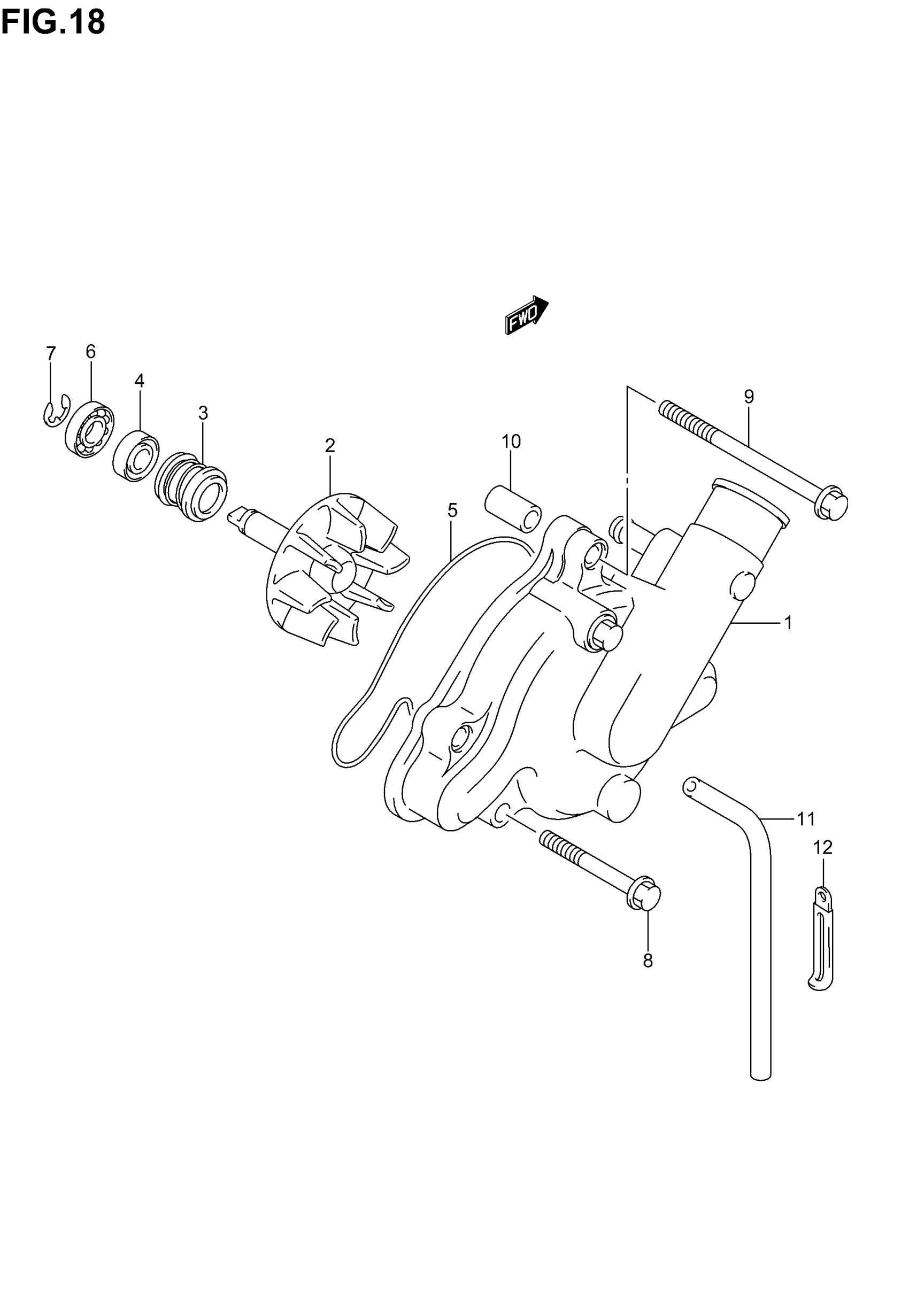

Suzuki SV1000 (2005) WATER PUMP Diagram
