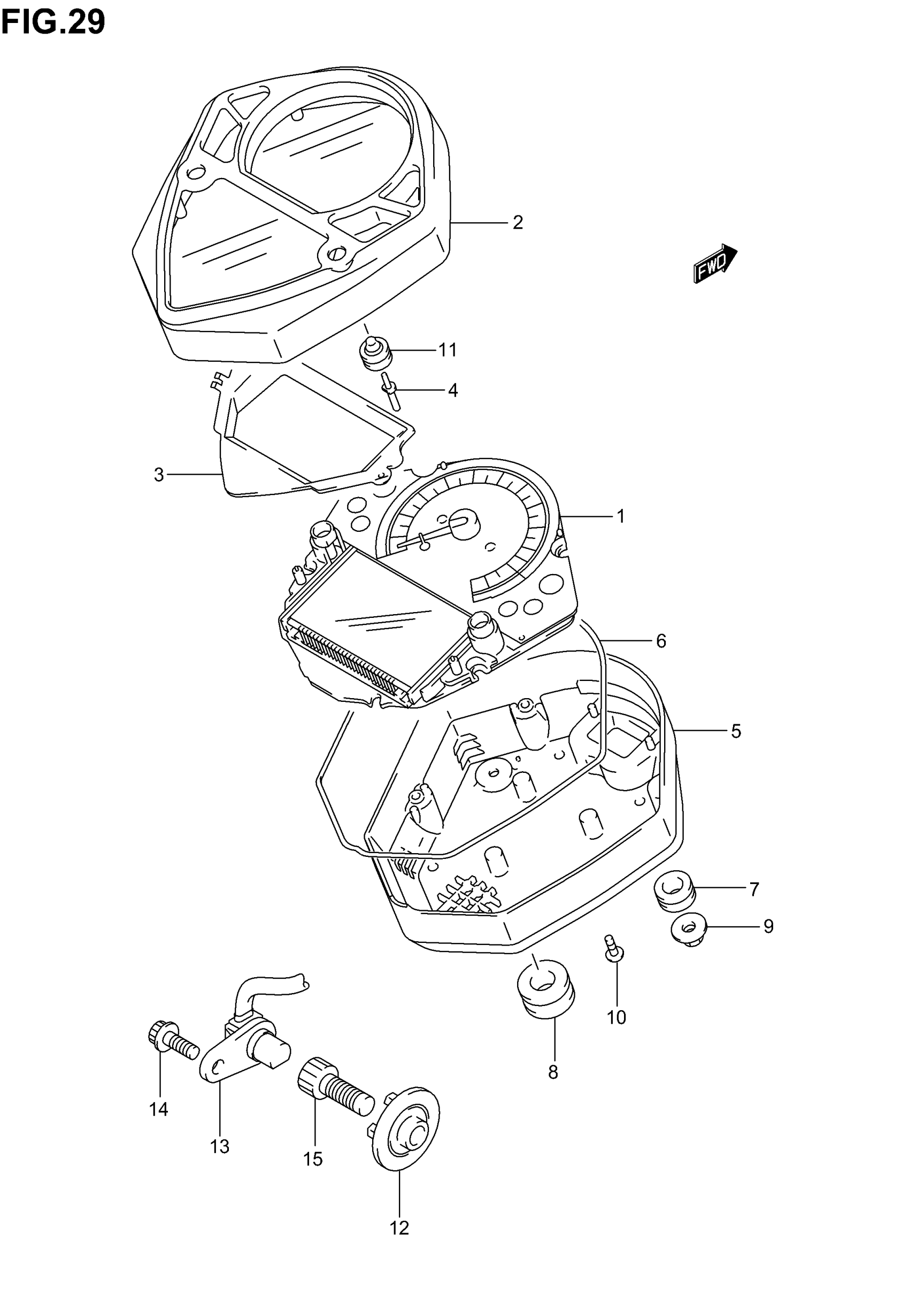

Suzuki SV1000 (2005) SPEEDOMETER (SV1000SK3/SK4) Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO)

34120-16G20

Unavailable

1

SPEEDOMETER (KILO) | E28

34120-16G00

Unavailable

2

CASE, SPEEDOMETER UPPER

34150-16G00

Unavailable

3

PLATE, SPEEDOMETER

34125-16G00

Unavailable

4

KNOB, SPEEDOMETER

34124-16G00

$10.62

5

CASE, SPEEDOMETER LOWER

34152-16G00

$63.75

6

GASKET, METER CASE

34153-16G00

$17.22

7

CUSHION, SPEEDOMETER

34189-32B00

$6.53

8

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

$2.80

9

NUT This part replaces 09159-05044.

09159-05049

$2.50

10

SCREW, SPEEDOMETER

34183-16G30

$5.10

11

COVER, SPEEDOMETER KNOB

34126-16G00

Unavailable

12

ROTOR,SPEED This part replaces 34981-35F00.

34981-38G01

$16.40

13

SENSOR, SPEED

34990-35F00

$120.25

14

BOLT This part replaces 07120-05123.

07120-0512B

$2.61

15

BOLT This part replaces 07130-08253.

07130-0825B

$3.04
