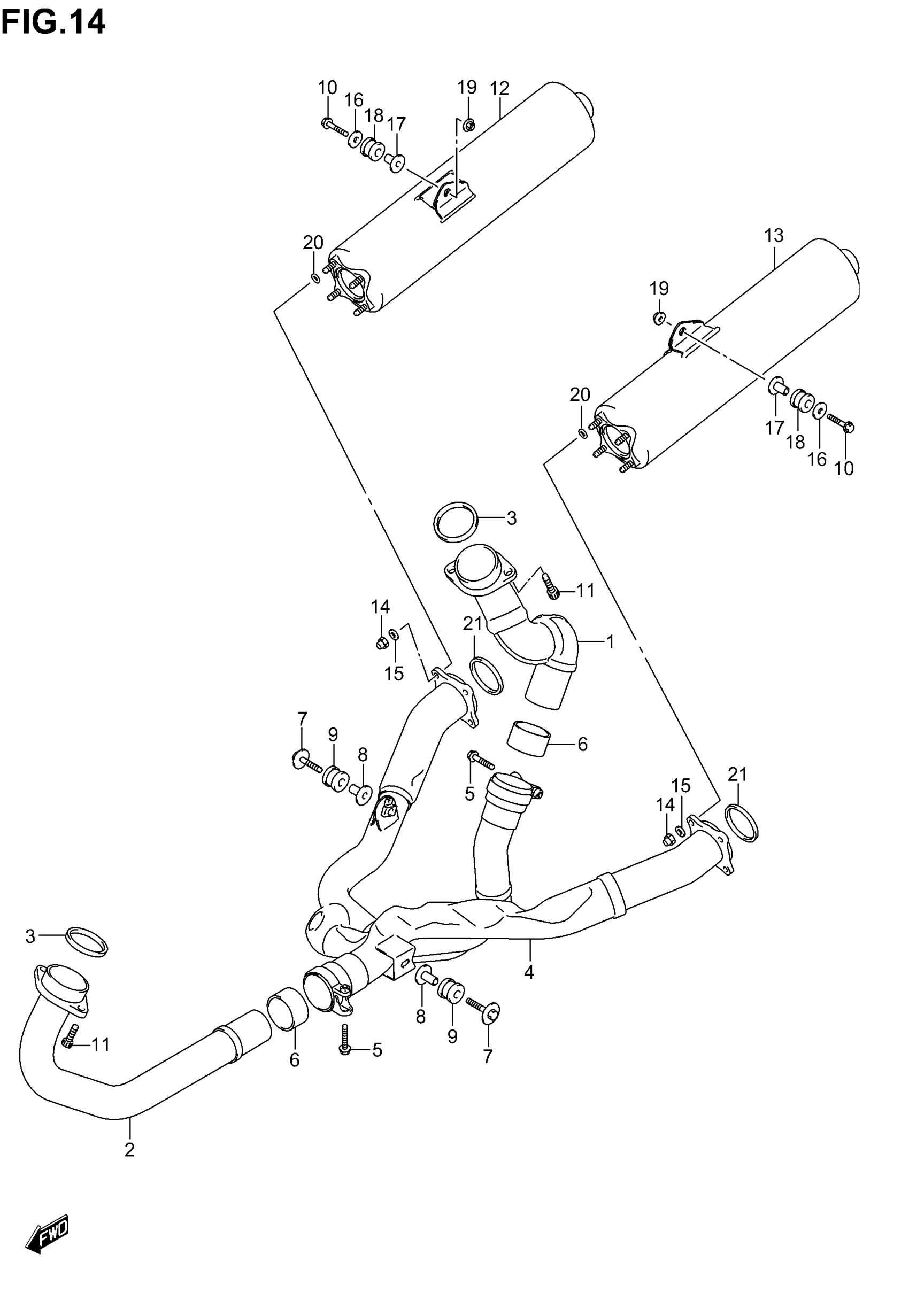

Suzuki SV1000 (2005) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST REAR | ?14150-16G00

14150-16G01

Unavailable

2

PIPE, EXHAUST FRONT

14160-16G00

Unavailable

3

GASKET

14181-31D00

$10.11

4

PIPE, EXHAUST CENTER | SV1000SK3

14210-16G10

Unavailable

4

PIPE, EXHAUST CENTER | SV1000K3/SK4 This part replaces 14210-16G40.

14210-16G60

Unavailable

4

PIPE, EXHAUST CENTER | MODEL K5

14210-16G60

Unavailable

5

BOLT

09103-08365

$3.71

6

CONNECTOR

14771-42F10

$22.13

7

BOLT (8X45) This part replaces 09118-08152.

09118-08152-A05

$4.89

8

SPACER

09180-08152

$5.42

9

CUSHION

09320-12048

$4.75

10

BOLT

09103-08358

$3.18

11

BOLT

09106-08165

$3.79

12

BODY, MUFFLER RH | SV1000SK3

14310-16G10-H01

Unavailable

12

BODY, MUFFLER RH | SV1000K3 This part replaces 14310-16G40-H01.

14310-16G70-H01

Unavailable

12

BODY, MUFFLER RH | MODEL K5 E3,E28

14310-16G70-H01

Unavailable

12

BODY, MUFFLER RH | MODEL K5 E33 This part replaces 14310-16G60-H01.

14310-16G60

Unavailable

13

BODY, MUFFLER LH | SV1000SK3

14340-16G10-H01

Unavailable

13

BODY, MUFFLER LH | SV1000K3 This part replaces 14340-16G40-H01.

14340-16G70-H01

Unavailable

13

BODY, MUFFLER LH | MODEL K5 E3,E28

14340-16G70-H01

Unavailable

13

BODY, MUFFLER LH | MODEL K5 E33 This part replaces 14340-16G60-H01.

14340-16G60

Unavailable

14

NUT

09159-08116

$9.78

15

WASHER

09160-08059

$1.77

16

WASHER

09160-08142

$2.80

17

SPACER

09180-08152

$5.42

18

CUSHION

09320-12048

$4.75

19

NUT This part replaces 08361-25088.

08361-2508A

$2.01

20

O RING

09280-08012

$3.42

21

GASKET, MUFFLER JOINT

14181-02F00

$6.62
