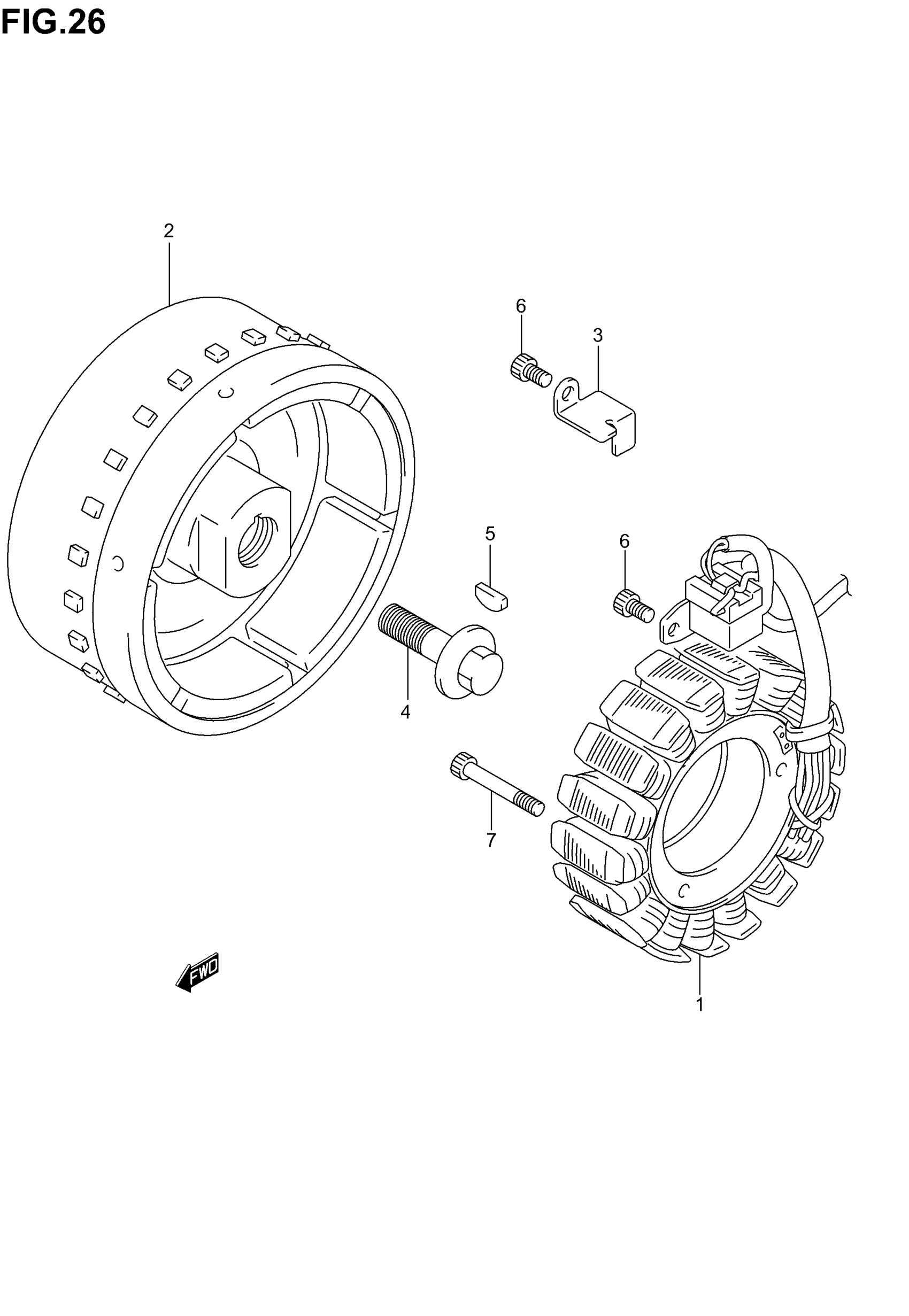

Suzuki SV1000 (2005) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY,MAG This part replaces 32101-16G00.

32101-16G01

$552.35

2

ROTOR ASSY | MODEL K3/K4

32102-16G00

$423.00

2

ROTOR ASSY | MODEL K5

32102-16G10

$574.07

3

CLAMP, MAGNETO

32371-13E00

$3.35

4

BOLT, ROTOR

32491-06G00

$8.91

5

KEY

09420-04008

$3.08

6

BOLT, PICK UP & CLAMP This part replaces 07130-05103.

07130-0510B

$2.64

7

BOLT This part replaces 07130-06353.

07130-0635B

$3.04
