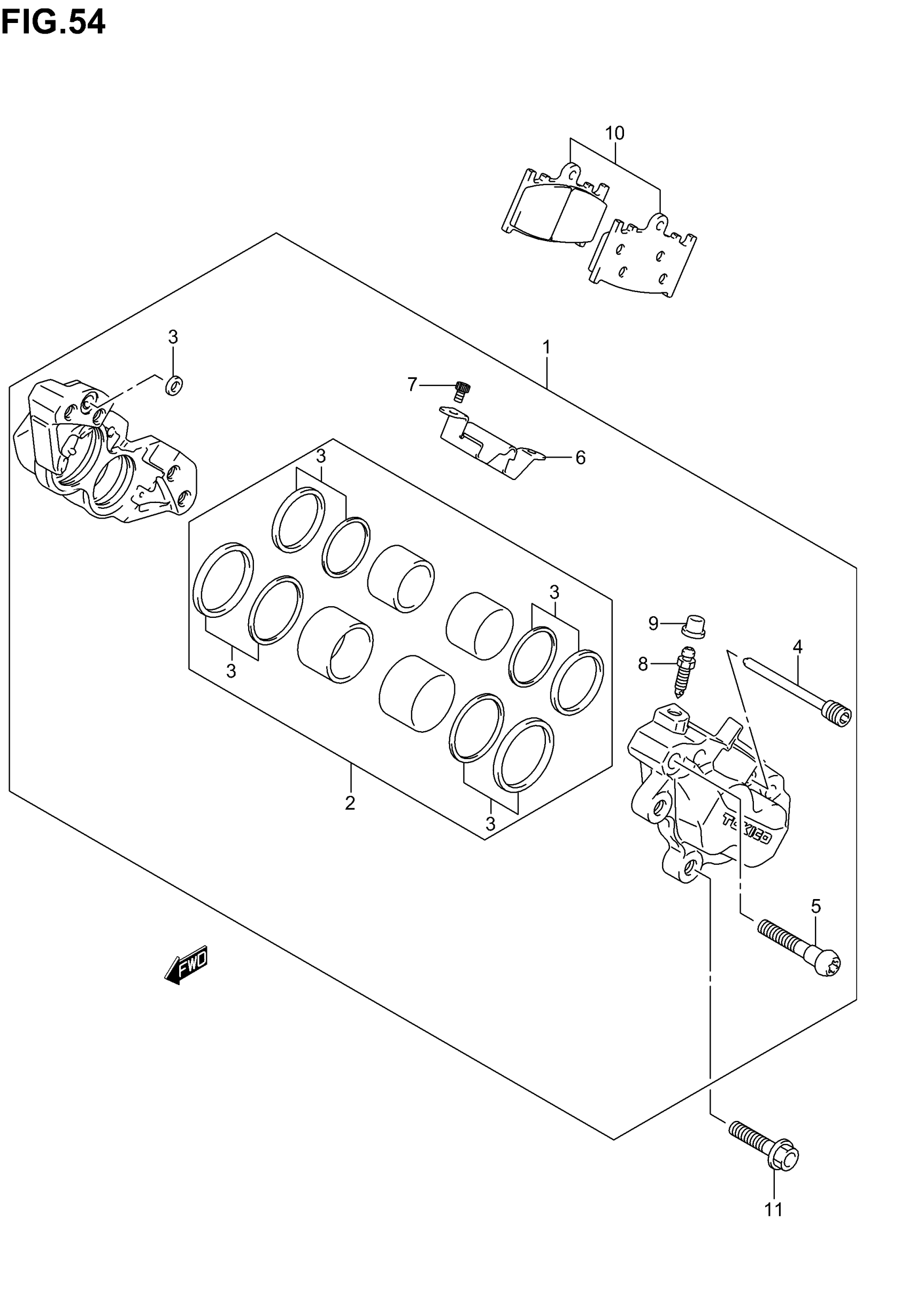

Suzuki SV1000 (2005) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, FRONT RH

59100-35F50-999

Unavailable

1

CALIPER ASSY, FRONT LH | Includes Item(s) 2 - 9

59300-35F50-999

Unavailable

2

PISTON SET

59100-35870

$121.80

3

SEAL SET, PISTON This part replaces 59100-35820.

59100-29830

$35.86

4

PIN

59141-40F00

$35.26

5

BOLT

59145-18G00

$11.20

6

COVER, RH

59152-35F00

$23.73

6

COVER, LH

59151-35F00

$23.73

7

.SCREW

59153-22D00

$7.12

8

BLEEDER

59121-18410

$7.99

9

CAP

55156-66310

$4.73

10

PAD SET

59100-35880

$49.51

11

BOLT

09103-08359

$3.44
