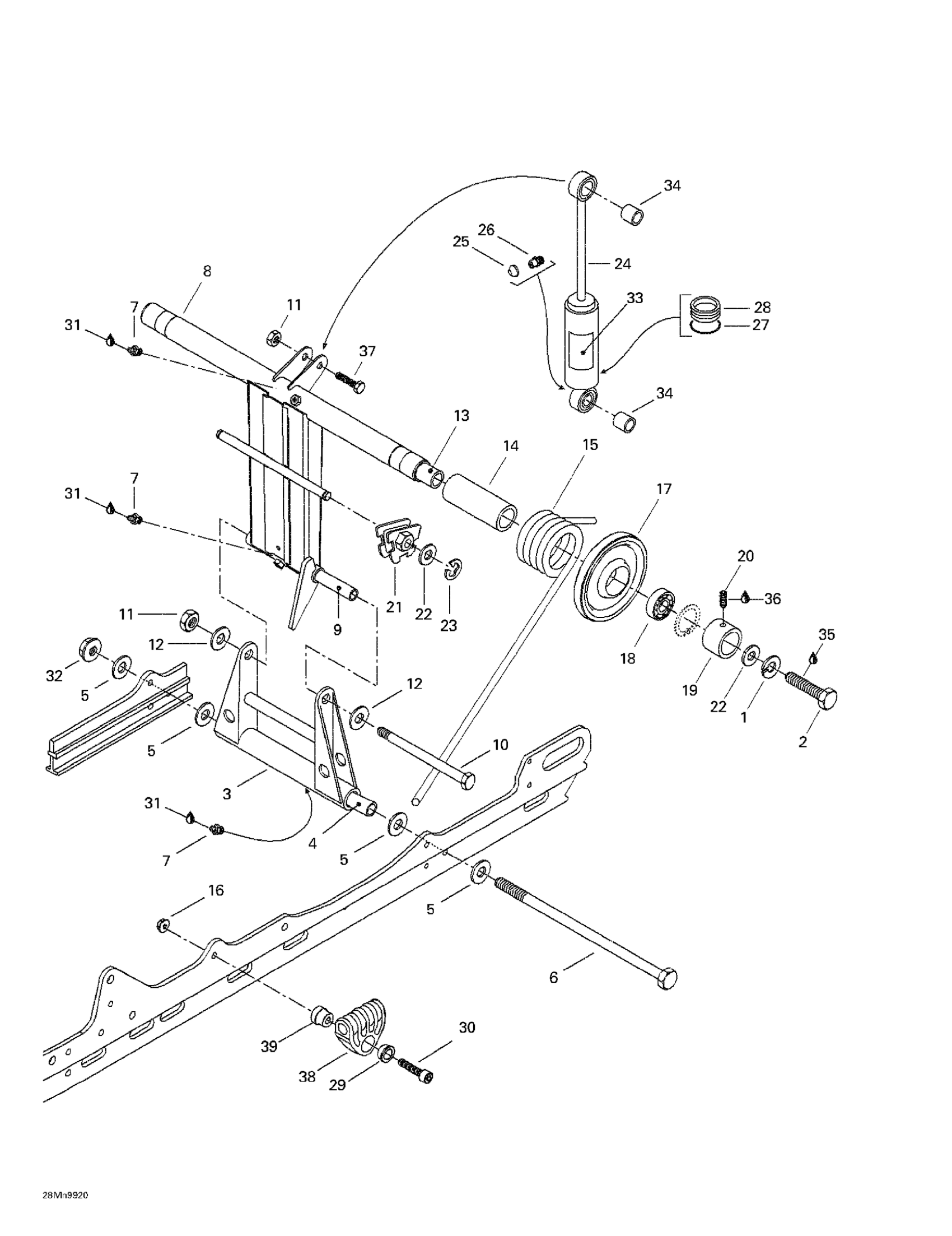

Ski-Doo Suumit 700, 1999 Rear Arm, Rear Suspension Diagram
#
Description
Price
1
Helicoidal Lock Washer M10 | XT Models
234101601
Unavailable
2
Hex. Screw M10 X 35
207103544
Unavailable
4
Lower Axle Pivot
503154703
Unavailable
5
FLAT WASHER - Call your local BRP dealership
224081201
Unavailable
6
Bolt M8 X 248mm
503192440
Unavailable
7
Grease Fitting
408200700
Unavailable
8
Rear Arm
503170700
Unavailable
9
Upper Axle, Pivot Arm
503144300
Unavailable
10
Bolt M8, Short
732601197
Unavailable
11
Hex. Elastic Stop Nut M8
232581414
Unavailable
12
Flat Washer 8 mm
234081410
Unavailable
13
Rear Cross Shaft
503168700
Unavailable
14
BUSHING - Call your local BRP dealership
572086000
Unavailable
LH SPRING - Call your local BRP dealership
414943600
Unavailable
16
Hex. Flange Elastic Nut M8
233281414
Unavailable
17
Idler Wheel | Includes 17 - 18.
572091400
Unavailable
18
Ball Bearing
293350115
Unavailable
21
LH ADJUST CAM - Call your local BRP dealership
572030800
Unavailable
RH ADJUST CAM - Call your local BRP dealership
572030900
Unavailable
22
Flat Washer 10 mm
234001410
Unavailable
23
e Circlip
371907100
Unavailable
24
Rear Shock Kayaba (EUROPE) | Includes 24 - 28.
503188917
Unavailable
25
Air Valve Cap
415127405
Unavailable
28
Free Piston
415097900
Unavailable
29
CUSHION RETAINER - Call your local BRP dealership
503188929
Unavailable
30
Socket Head Screw M8 X 45
205084544
Unavailable
31
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
32
Hex. Flange Elastic Nut M8
233281414
Unavailable
33
Shock Decal
516000183
Unavailable
34
Bushing
414936000
Unavailable
36
Loctite 271, 10 ml
293800005
Unavailable
37
Hex. Screw M8 X 40
207084044
Unavailable
38
Spring Support
503189657
Unavailable
39
Spring Guide Axle
503188934
Unavailable
