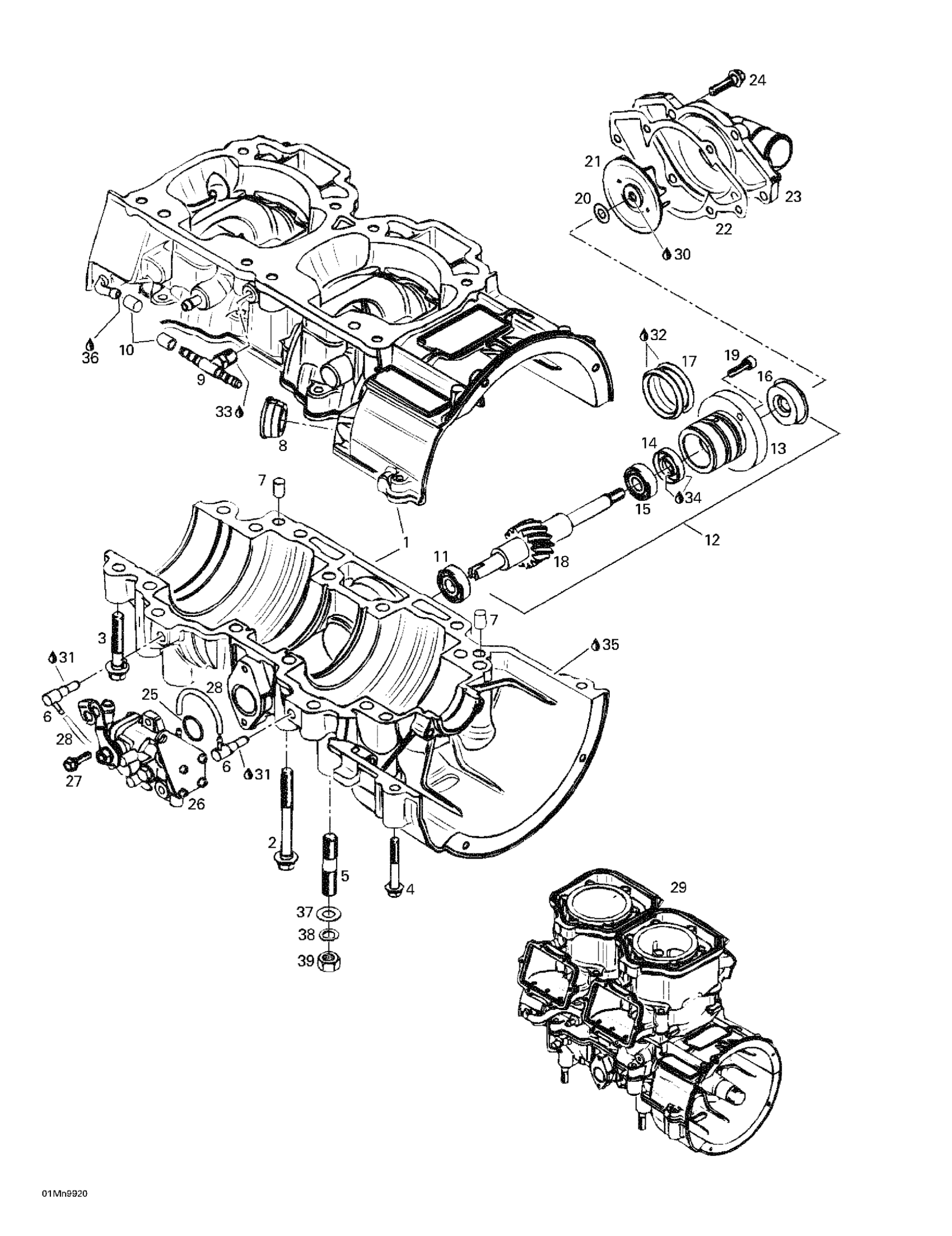

Ski-Doo Suumit 700, 1999 Crankcase, Water Pump And Oil Pump Diagram

Crankcase Ass'y | Includes 1 - 11. Formula Z 700.

420888272

Unavailable

Hex. Collar Screw M8 x 75 | Formula Z 700.

420841316

Unavailable

Hex. Collar Screw M8 x 45

420640432

$1.94

Allen Screw M6 x 45 This part replaces 420640311.

420640312

$4.28

Stud M10 x 23/17

420941646

Unavailable

Check Valve

420956511

$28.57

Center Pin 8 X 12

420632010

$3.07

Cable Grommet

420860965

$13.58

T-Fitting | Formula Z 700.

420874360

Unavailable

Cap

420960770

$4.00

Ball Bearing

420232100

$15.57

Water Pump/Oil Pump Ass'y | Includes 12 to 18

420837421

$342.28

Not Available As Spare Part - Friction Washer

Unavailable

Oil Seal

420230195

$12.65

Ball Bearing

420232100

$15.57

Rotary Seal

420650371

$35.72

O-Ring

420950890

$4.28

Not Available As Spare Part - Friction Washer

Unavailable

Allen Screw M5 x 16

420840514

$1.85

Thrust Washer

420227945

$3.86

Water Impeller

420222505

$14.92

Gasket This part replaces 420931810.

420931811

$13.26

Water Pump Housing

420922630

$59.20

Hex. Screw M6 X 25

420240034

$1.56

O-Ring

293300041

$7.05

Oil Pump Ass'y | Formula Deluxe 700.

420888265

Unavailable

Taptite Screw M5 X 16

420941928

Unavailable

Oil Hose 1500Mm Long

219704404

$13.62

Short Block Ass'y

420069301

Unavailable

Loctite 243, 10 ml

293800060

$20.77

Sealant Loctite 648

219703000

$35.72

Dow Corning 111, 150 g

413707000

$57.82

Not Available As Spare Part - Friction Washer

Unavailable

Petamo Grease, GHY133N, 400 g

420899271

$57.17

Sealing Compound Loctite 5366 310Ml

420297907

$54.57

Isoflex Grease, TOPAS NB52, 50 g

293550021

$48.72

Flat Washer 10 mm

234001410

$0.98

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

Hex. Nut M10 X 1.5

232006414

$1.11
