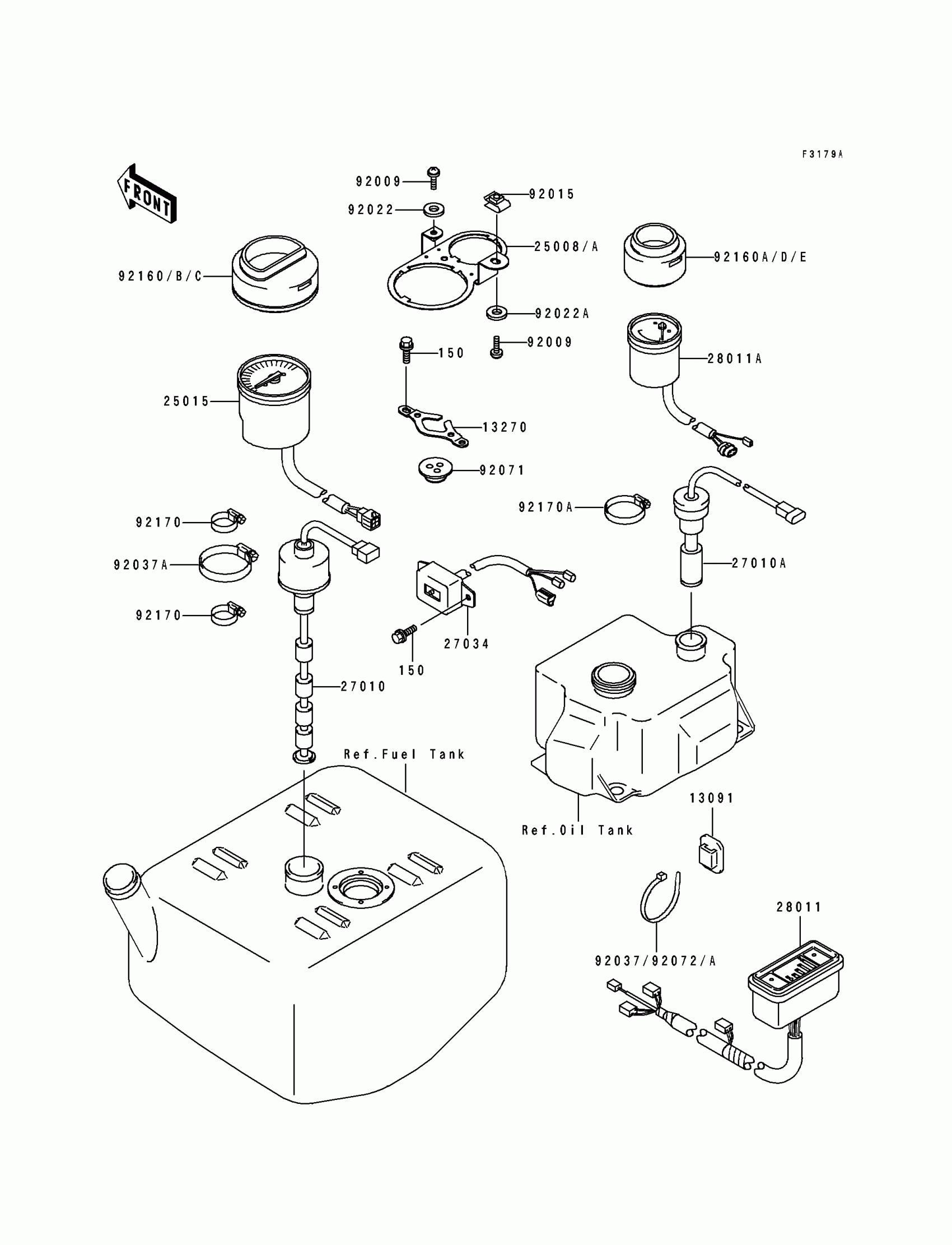

Kawasaki Super Sport XI Meters(JH750-B2/B3) Diagram

Description

Price

13091

HOLDER,BAND

13091-3764

$4.58

13270

PLATE,GROMMET

13270-3737

Unavailable

25008A

BRACKET-METER,TACHO&TRIM

25008-3707

Unavailable

25015

TACHOMETER,X1000R/MIN

25015-3701

Unavailable

27010

SWITCH,FUEL LEVEL

27010-3727

$273.20

27010A

SWITCH,OIL LEVEL

27010-3729

Unavailable

27034

RELAY,TRIM METER

27034-3705

Unavailable

28011

METER,FUEL

28011-3702

Unavailable

28011A

METER,TRIM

28011-3703

Unavailable

92009

SCREW,6X18

92009-3805

$3.59

92015

NUT,6MM

92015-3763

Unavailable

92022

WASHER,6.5X16X1

92022-1143

$2.99

92022A

WASHER,6.5X20X1.5

92022-3710

$2.76

92037

CLAMP

92037-1173

$2.58

92037A

CLAMP

92037-3009

$3.25

92071

GROMMET

92071-3797

$20.12

92072

BAND,L=292.1

92072-3509

Unavailable

92072A

BAND,L=201

92072-3778

$1.61

92160B

DAMPER,TACHOMETER

92160-3829

Unavailable

92160D

DAMPER,TRIM METER

92160-3830

Unavailable

92170

CLAMP

92170-3718

$10.33

92170A

CLAMP

92170-3734

$15.02

150

BOLT-WS,6X14

150R0614

$5.22
