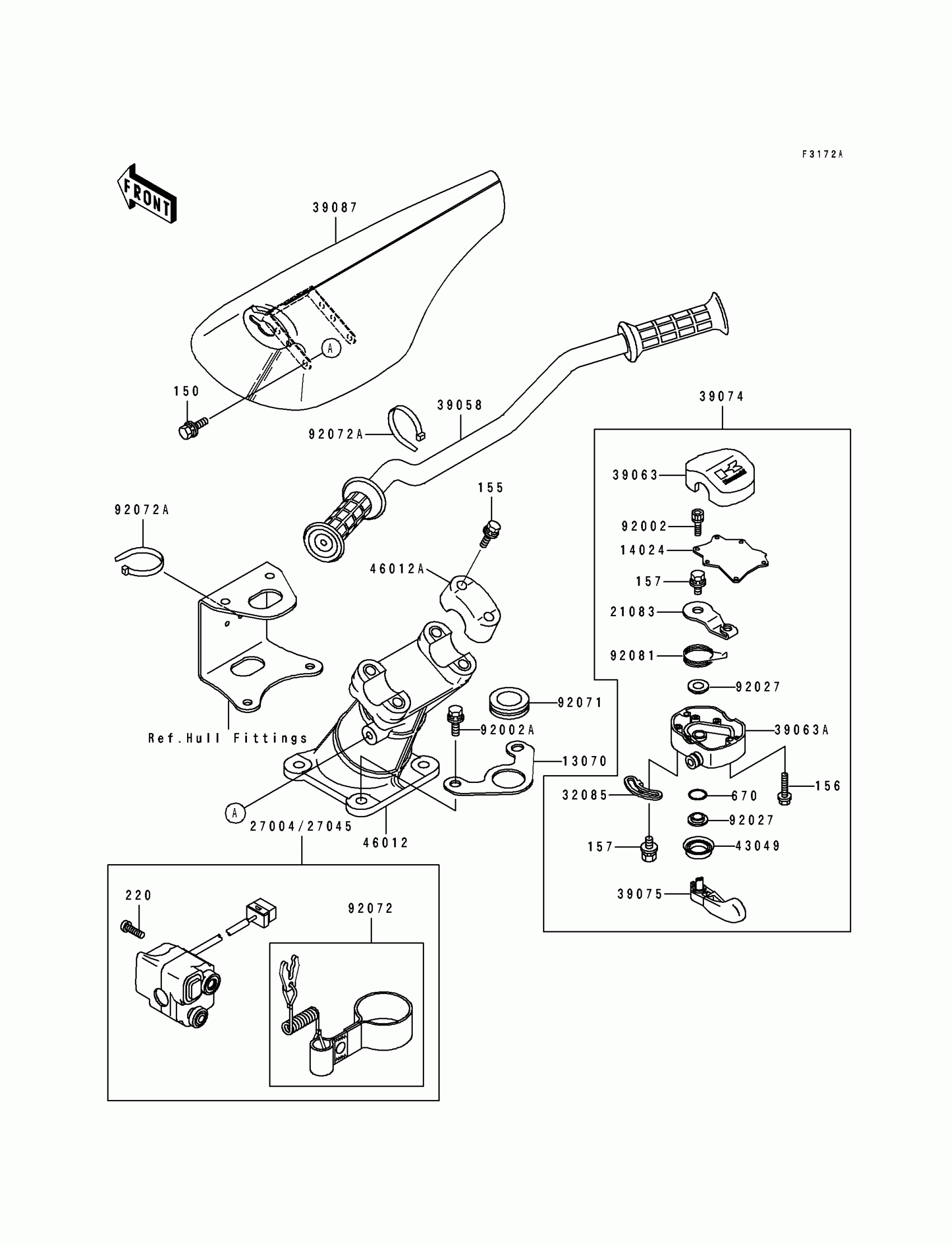

Kawasaki Super Sport XI Handlebar(JH750-B2/B3) Diagram

#

Description
Price

13070

GUIDE,TRIM SWITCH

13070-3714

Unavailable

13151

SWITCH-COMP,STOP&START&TRIM

13151-3712

Unavailable

14024

COVER,THROTTLE LEVER

14024-3701

Unavailable

21083

ARM,THROTTLE LEVER

21083-3701

$14.81

32085

STOPPER

32085-3709

Unavailable

39058

HANDLE-COMP

39058-3707

$207.60

39063

HOUSING-CONTROL,UPP

39063-3713

Unavailable

39063A

HOUSING-CONTROL,LWR

39063-3714

$76.96

39074

LEVER-ASSY-THROTTLE

39074-3714

$234.06

39075

LEVER-THROTTLE

39075-3708

$68.48

39087

PAD-HANDLE,J.S.VIOLET

39087-3714-PJ

$143.82

43049

PACKING,THROTTLE LEVER

43049-3701

$7.56

46012

HOLDER-HANDLE,LWR

46012-3719

$144.63

46012A

HOLDER-HANDLE,UPP

46012-3720

$15.76

92002

BOLT,SOCKET,3X10

92002-3751

$4.80

92002A

BOLT,8X25

92002-3774

$7.76

92027

COLLAR,THROTTLE LEVER

92027-3704

Unavailable

92071

GROMMET

92071-3704

$5.37

92072

BAND,TETHER SWITCH

92072-3767

$60.42

92072A

BAND,L=201

92072-3778

$1.61

92081

SPRING,THROTTLE LEVER RETURN

92081-3702

$5.66

150

BOLT-WS,6X14

150R0614

$5.22

155

BOLT-WSP-SMALL,8X35

155R0835

$8.03

156

BOLT-WP,5X25

156R0525

Unavailable

157

BOLT-WSP,5X12

157R0512

Unavailable

220

SCREW-PAN-CROS,5X30

220R0530

$4.32

670

O RING,8MM

670B1508

$1.00
