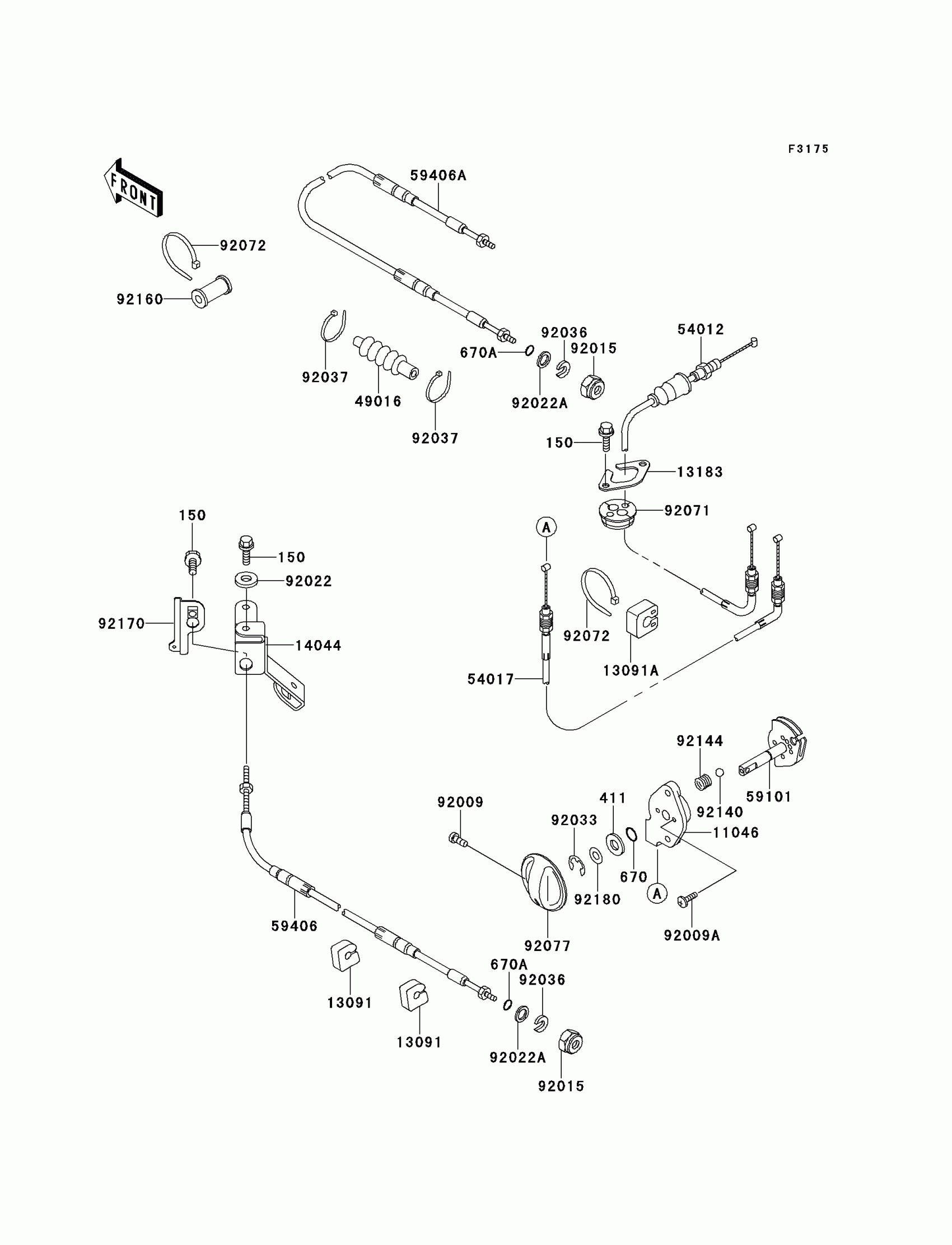

Kawasaki Super Sport XI Cables Diagram

#

Description
Price

150

BOLT-WS,6X14

150R0614

$5.22

411

WASHER-PLAIN,8MM

411S0800

$2.15

670

O RING,8MM

670B1508

$1.00

670A

O RING,11MM

670B2011

$0.98

11046

BRACKET,STARTER CABLE

11046-3712

Unavailable

13091

HOLDER

13091-3712

$4.14

13091A

HOLDER

13091-3780

$8.54

13183

PLATE

13183-3810

Unavailable

14044

HOLDER-CABLE

14044-3718

Unavailable

49016

COVER-SEAL,TILT CABLE

49016-3702

$3.13

54012

CABLE-THROTTLE

54012-3744

Unavailable

54017

CABLE-STARTER

54017-3725

Unavailable

59101

REEL,STARTER CABLE

59101-3704

Unavailable

59406

CABLE-STRG

59406-3732

$74.94

59406A

CABLE-STRG,TILT

59406-3751

$52.06

92009

SCREW,4X8

92009-3729

$6.54

92009A

SCREW,5X16

92009-3789

$2.42

92015

NUT,20MM

92015-526

$30.30

92022

WASHER,6.5X20X1.5

92022-3710

$2.76

92022A

WASHER

92022-535

$7.25

92033

RING-SNAP,7MM

92033-3704

$2.37

92036

RING-SNAP

92036-501

Unavailable

92037

CLAMP

92037-1173

$2.58

92071

GROMMET,HARNESS

92071-3790

$9.34

92072

BAND,L=201

92072-3778

$1.61

92077

KNOB

92077-3717

$25.49

92140

BALL,3MM

92140-3702

$4.49

92144

SPRING

92144-3712

$2.14

92160

DAMPER

92160-1129

Unavailable

92170

CLAMP,CABLE

92170-3733

Unavailable

92180

SHIM,8.5X18X0.15

92180-3702

Unavailable
