2004 Kawasaki Super Sherpa (Canada Only) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2004 Kawasaki Super Sherpa (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

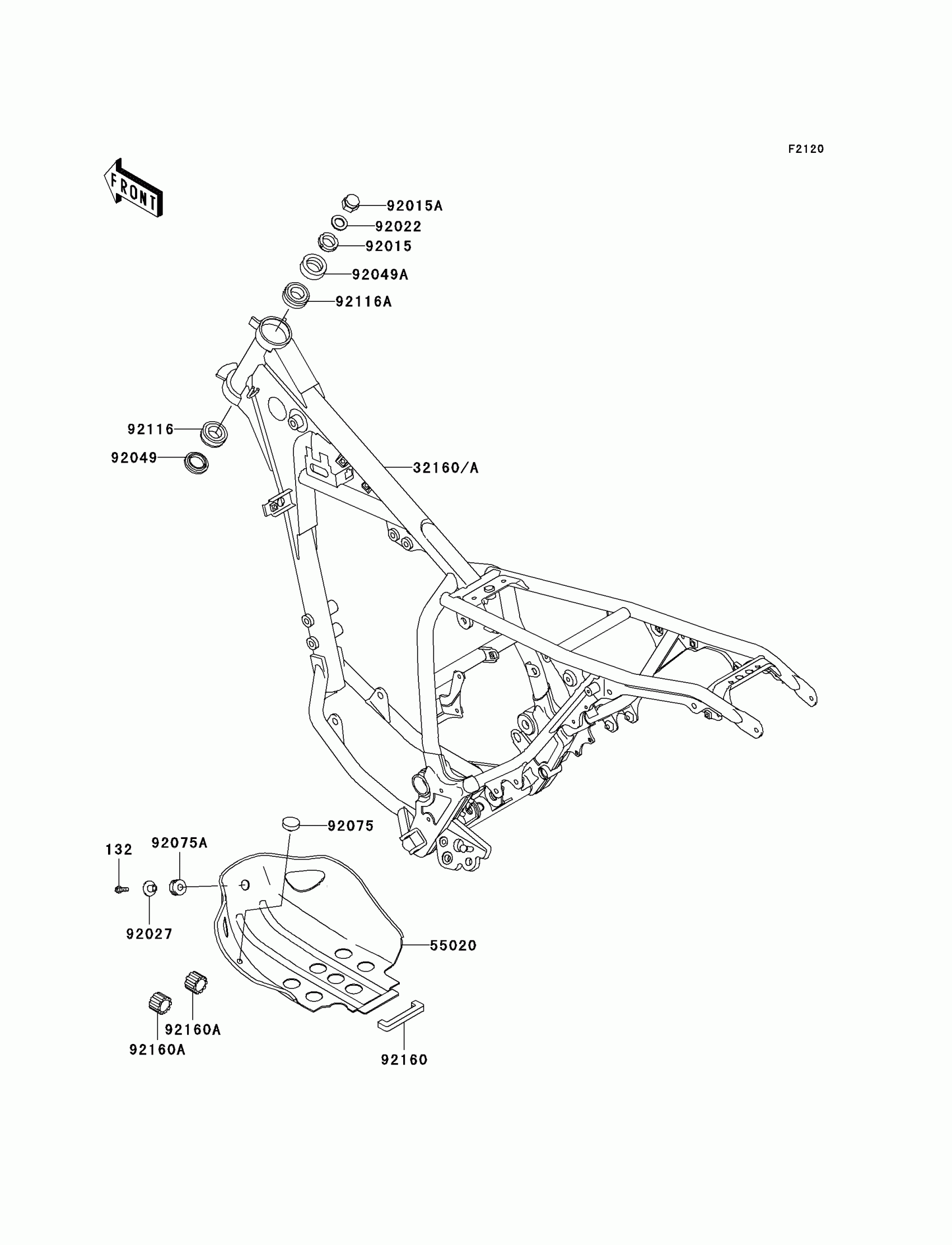

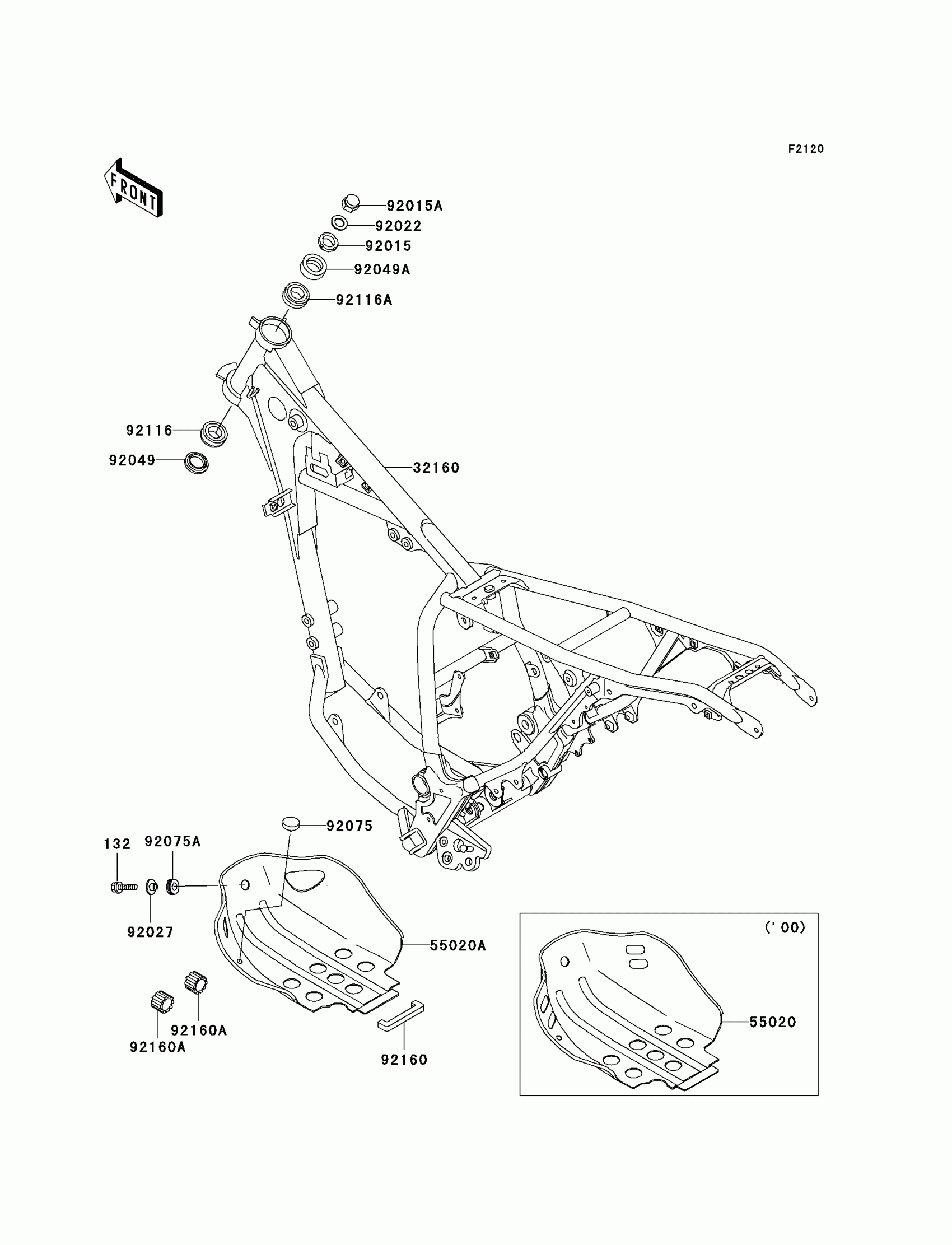

2004 Kawasaki Super Sherpa (Canada Only) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X20

132V0620

1
Out of stock

32160

FRAME-COMP,C.GRAY

32160-1600-EZ

1

$1,930.39

In stock

55020A

GUARD,ENGINE

55020-1734

1

$239.54

In stock

92015

NUT,25MM,T=12

92015-1546

1

$19.66

In stock

92015A

1

$16.53

In stock

92022

WASHER,STEERING STEM

92022-1873

1
Out of stock

92027

COLLAR,L=13.1

92027-251

1
Out of stock

92049

SEAL-OIL,XMHE36X52X4J

92049-1162

1
Out of stock

92049A

SEAL-OIL,STEERING STEM

92049-1214

1
Out of stock

92075

1

$3.85

In stock

92075A

DAMPER,10X24X12

92075-1690

1

$3.97

In stock

92116

1

$33.21

In stock

92116A

1

$37.01

In stock

92160

DAMPER

92160-1835

1

$7.46

In stock

92160A

DAMPER

92160-1884

1

$7.44

In stock
