Description

Price

1

FRONT BOTTOM PAN, BLACK - Call your local BRP dealership

502006681

Unavailable

2

BOTTOM PAN GRILL - Call your local BRP dealership

502006687

Unavailable

3

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

4

Pop Rivet 3/16”

293150108

$1.23

5

Pop Rivet 3/16"

293150103

Unavailable

6

Washer

517124300

Unavailable

7

Nut Welded, M6

293100003

Unavailable

8

RH Bottom Pan

502006606

Unavailable

9

LH Bottom Pan

502006678

Unavailable

10

Hex. Screw M6 X 14

207161444

$0.48

11

Bumper, Black

502006679

$155.35

12

Lock Washer M6, Black

234161471

$0.52

13

Flat Washer

224061121

$0.44

14

Support

502006772

$36.12

15

Black, Nylon Cap

414916600

$4.32

16

LH Foam

502006683

Unavailable

17

RH Foam

502006684

Unavailable

18

Rubber Stopper

415018100

$2.35

19

Rubber Washer 5 mm

250200024

$1.77

20

WASHER - Call your local BRP dealership

293150007

Unavailable

21

Pop Rivet 1/8" | SM5

390401600

Unavailable

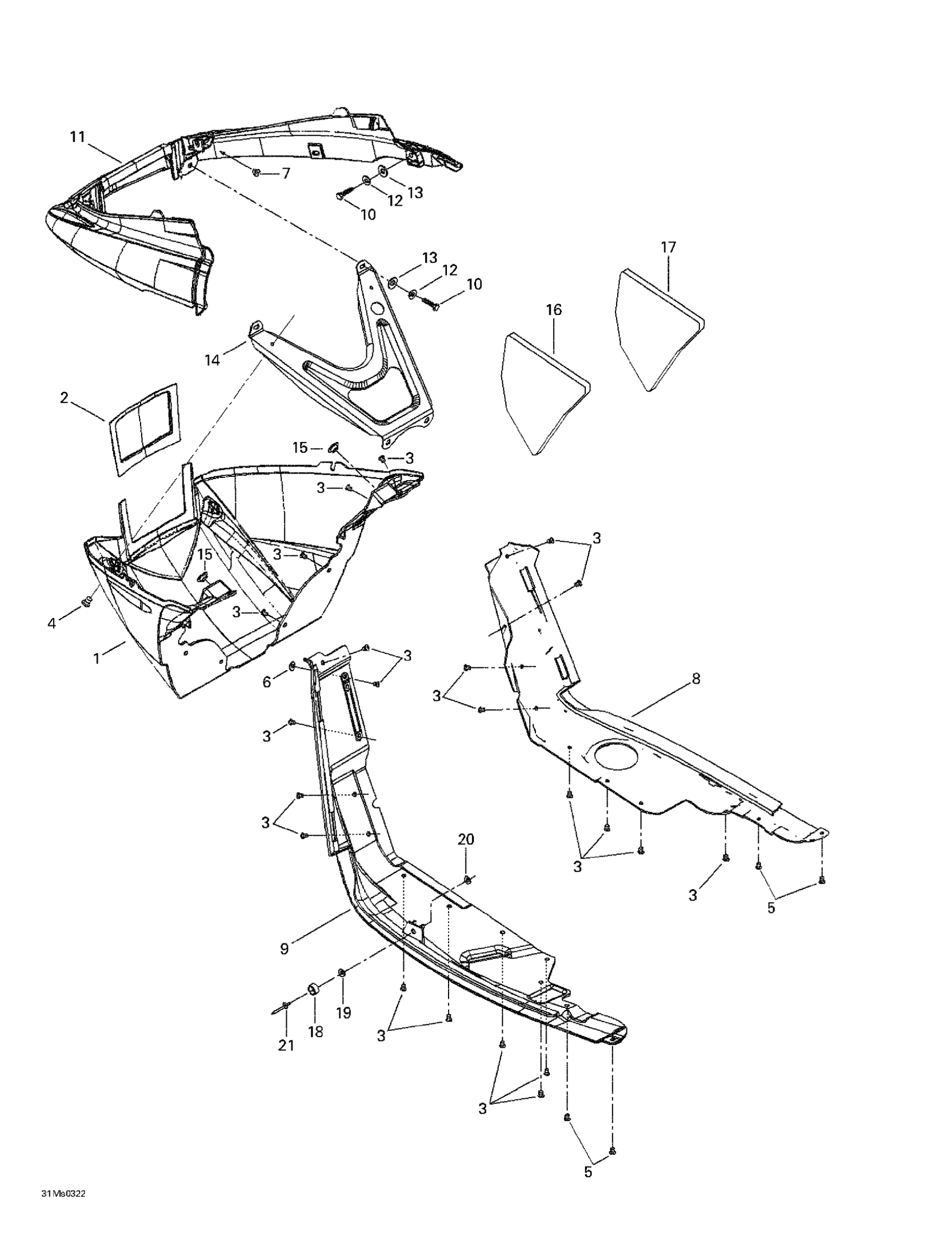

Ski-Doo Summit X 800 HO, 2003 Bottom Pan Diagram

FRONT BOTTOM PAN, BLACK - Call your local BRP dealership

BOTTOM PAN GRILL - Call your local BRP dealership

Pop Rivet 3/16"

Washer

Nut Welded, M6

RH Bottom Pan

LH Bottom Pan

LH Foam

RH Foam

WASHER - Call your local BRP dealership

Pop Rivet 1/8" | SM5
