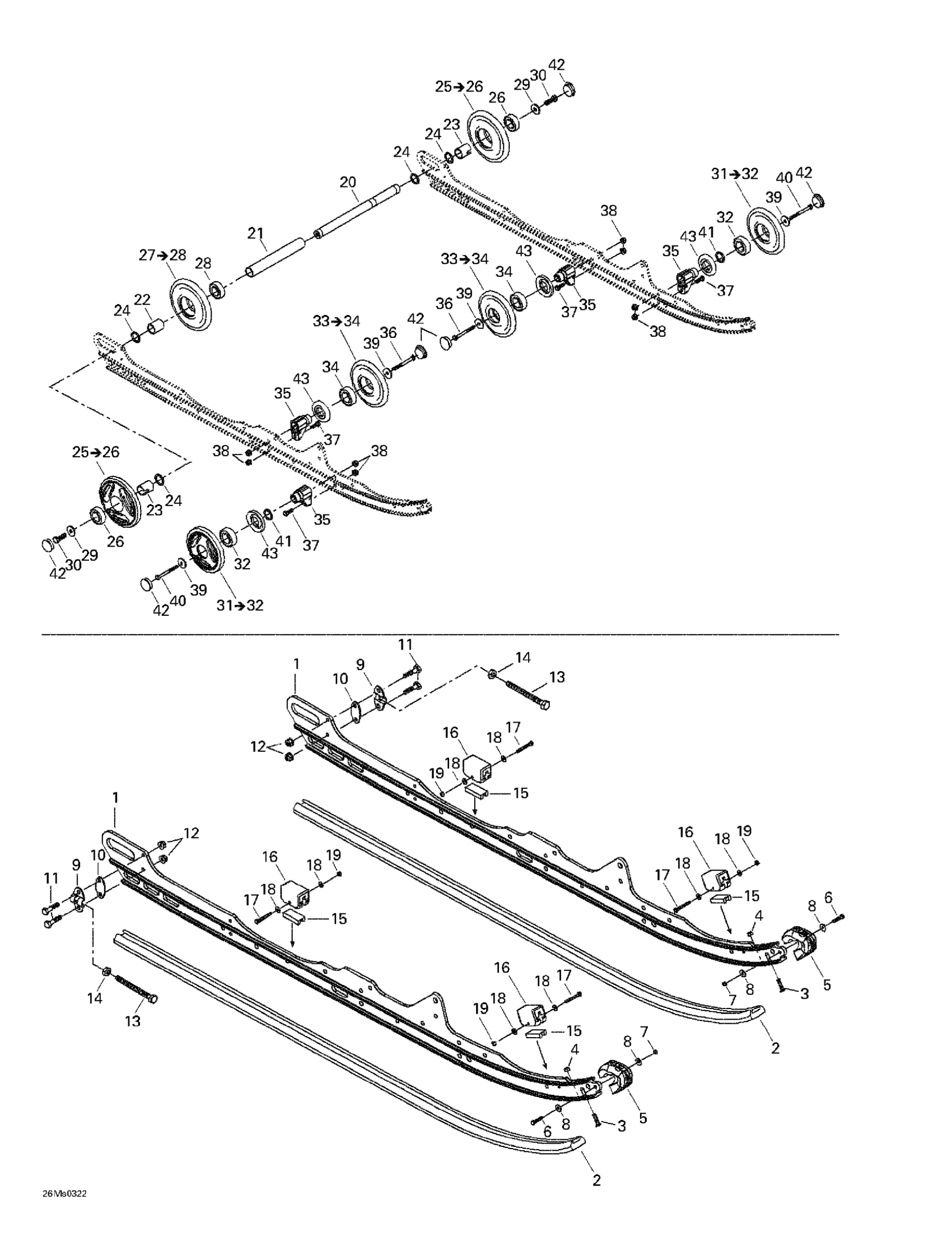

Ski-Doo Summit X 800 HO, 2003 Rear Suspension Diagram

#

Description
Price

1

RUNNER (144) - Call your local BRP dealership | Adrenaline

503190278

Unavailable

2

Rail

503190407

Unavailable

3

Phillips Screw M6 X 25

208562560

$2.21

4

Elastic Stop Nut M6

232561414

$1.78

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

7

Elastic Stop Nut M5

232551414

$0.82

8

Washer | DS 650 X

391301600

$0.46

9

Tensioner

503155300

Unavailable

10

TENSIONER SPACER - Call your local BRP dealership

503189160

Unavailable

11

Hex. Screw M6 X 30

207063044

$1.12

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

13

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

14

Elastic Locking Nut M10 X 1.5

233601416

$1.63

15

Reinforcement Stopper

572084800

$5.09

16

Rubber Stopper

570063000

Unavailable

17

HEX. SCREW M5 X 40 - Call your local BRP dealership

207054044

Unavailable

18

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

19

Elastic Stop Nut M5

232551414

$0.82

20

Rear Axle

503167900

$125.34

21

CENTRAL SPACER - Call your local BRP dealership

503183000

Unavailable

22

Inner Spacer

503182900

$9.88

23

Outer Spacer

503189809

$14.90

24

Washer

503180400

$3.27

25

Wheel 180 Ass'y, Yellow | Includes 35 to 36

503190800

$48.48

26

Ball Bearing

293350115

$10.82

27

Wheel 180

503190799

$48.48

28

Ball Bearing

293350115

$10.82

29

Washer

503183300

$5.51

30

Hex. Screw With Nylon

250000019

$1.63

31

WHEEL 139 MM - Call your local BRP dealership

503190815

Unavailable

32

Ball Bearing

293350115

$10.82

33

Wheel 139 mm Ass'y

503190798

$31.31

34

Ball Bearing

293350115

$10.82

35

SUPPORT - Call your local BRP dealership

503190389

Unavailable

36

Hex. Screw M8 X 80

207088044

$1.54

37

Hex. Screw M8 X 25

207182544

$0.85

38

Hex. Flange Elastic Nut M8

233281414

$1.31

39

Washer

503183100

$2.99

40

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

41

WASHER - Call your local BRP dealership

503173700

Unavailable

42

Wheel Cap

570063600

$3.18

43

LABYRINTH SEAL - Call your local BRP dealership

572089000

Unavailable
