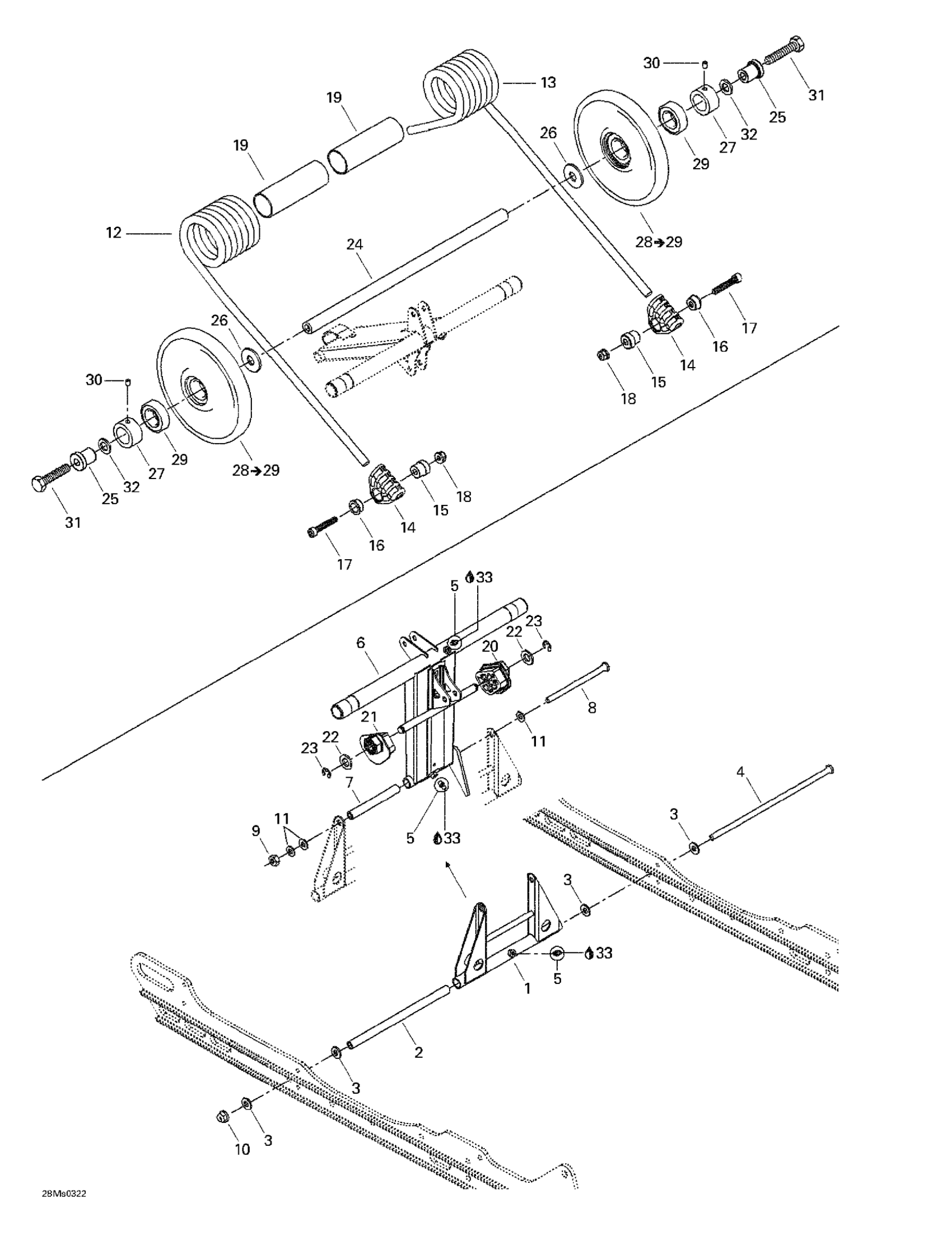

Ski-Doo Summit X 800 HO, 2003 Rear Arm Diagram

#

Description
Price

1

Pivot Arm

503189793

Unavailable

2

Pivot Arm Axle

503189156

Unavailable

3

Washer

503189157

$3.20

4

Bolt M8 X 248mm

503192440

Unavailable

5

Grease Fitting

408200700

Unavailable

6

REAR ARM - Call your local BRP dealership

503190323

Unavailable

7

Upper Axle, Pivot Arm

503144300

Unavailable

8

Bolt M8, Short

732601197

Unavailable

9

Hex. Elastic Stop Nut M8

232581414

Unavailable

10

Hex. Flange Elastic Nut M8

233281414

Unavailable

11

Flat Washer 8 mm

234081410

Unavailable

12

RH Spring, Square

503190329

Unavailable

13

LH SPRING, SQUARE - Call your local BRP dealership

503190331

Unavailable

14

Spring Support

503189657

Unavailable

15

SPRING GUIDE AXLE - Call your local BRP dealership

503189232

Unavailable

16

Retainer Cushion

503189231

Unavailable

17

Socket Head Screw M8 X 45

205084544

Unavailable

18

Hex. Flange Elastic Nut M8

233281414

Unavailable

19

BUSHING - Call your local BRP dealership

503190333

Unavailable

20

LH CAM ADJUSTER - Call your local BRP dealership

503190023

Unavailable

21

RH CAM ADJUSTER - Call your local BRP dealership

503190022

Unavailable

22

Flat Washer 12 mm

234021410

$0.68

23

E-Circlip

293370013

Unavailable

24

SHAFT - Call your local BRP dealership

503190387

Unavailable

25

BUSHING - Call your local BRP dealership

503190422

Unavailable

26

Washer

503190328

$11.34

27

Retaining Ring

503168800

$12.65

28

Wheel 165 Ass’Y | Includes 24 to 25

503190269

Unavailable

29

Ball Bearing

293350115

Unavailable

30

Socket Set Screw M6 X 8

206260844

$1.25

31

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

Unavailable

32

Washer

503189564

Unavailable

33

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
