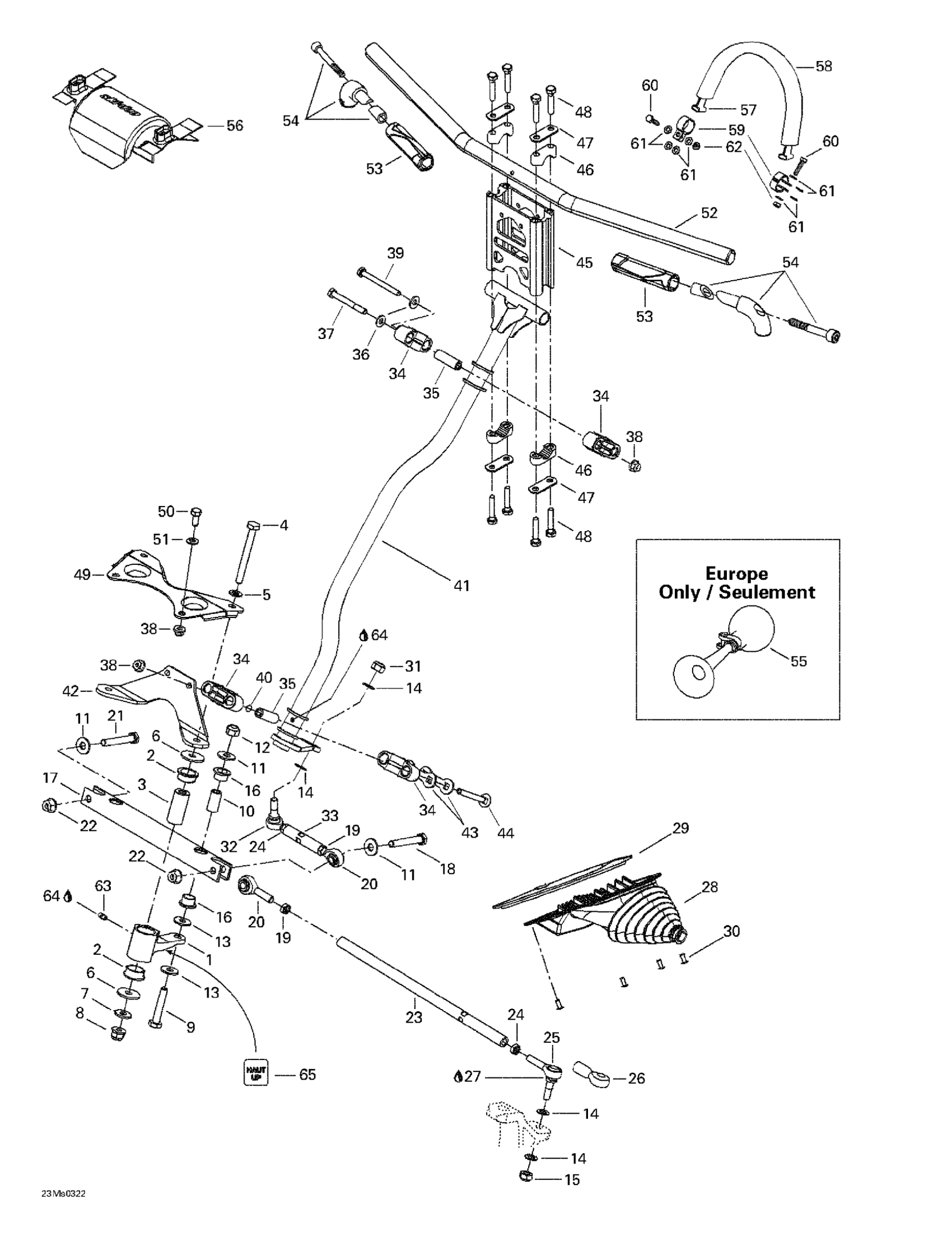

Ski-Doo Summit X 800 HO, 2003 Steering System Diagram

#

Description
Price

1

RH Swivel Arm

506151627

Unavailable

LH Swivel Arm

506151628

Unavailable

2

CUSHION - Call your local BRP dealership

415041100

$5.52

3

Not Available As Spare Part - Friction Washer

Unavailable

4

HEX. SCREW M10 X 90 - Call your local BRP dealership

207009086

Unavailable

5

Washer

503183800

$3.20

6

Washer 10 mm

506150000

Unavailable

7

Flat Washer M10 | 4X4

250200014

$1.17

8

Flange Nut M10

732610084

Unavailable

9

Hex. Screw M10 X 55

207005544

$1.85

10

Pivot Bar

506151273

Unavailable

11

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

12

Elastic Locking Nut M10 X 1.5

233601416

$1.68

13

Washer

250200032

Unavailable

14

Washer

503175800

$3.26

15

Elastic Flange Nut M10

232501416

Unavailable

16

Swivel Bushing

503191555

Unavailable

17

SWIVEL BAR - Call your local BRP dealership

506151328

Unavailable

18

Hex. Screw M10 X 1.5 X 65

207006544

$2.29

19

LH Threaded Hex. Jam Nut M10

250100016

Unavailable

20

LH Ball Joint

506151810

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Hex. Flange Elastic Nut M10

233201414

$1.26

23

TIE-ROD - Call your local BRP dealership

506151375

Unavailable

24

RH Threaded Hex. Jam Nut M10

732610010

Unavailable

25

Ball joint

506151613

Unavailable

26

Protection Cap

570151000

$18.43

27

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

28

RH Tie-Rod Cap

506151725

Unavailable

LH Tie-Rod Cap

506151726

Unavailable

29

RH RETAINER RING - Call your local BRP dealership

506151356

Unavailable

LH RETAINER RING - Call your local BRP dealership

506151357

Unavailable

30

Pop Rivet 3/16"

390402200

$0.26

31

Elastic Flange Nut M10

232501416

Unavailable

32

RH BALL JOINT - Call your local BRP dealership

506151492

Unavailable

33

Tie-Rod

506151619

Unavailable

34

Housing Half

506150400

Unavailable

35

Housing Bushing

506150500

Unavailable

36

Washer

503189157

$3.20

37

Hex. Screw M8 X 70

207087044

Unavailable

38

Hex. Flange Elastic Nut M8

233281414

Unavailable

39

Hex. Screw M8 X 80

207088044

Unavailable

40

O-ring

506151467

Unavailable

41

Main tube

506151644

Unavailable

42

STEERING SHAFT SUPPORT - Call your local BRP dealership

506151330

Unavailable

43

Stopper Plate

506150600

Unavailable

44

Carriage Bolt M8 X 70

207787044

Unavailable

45

Handle Bar Extension

506151739

Unavailable

46

Steering Support

709400919

Unavailable

47

Stiffner

709400509

Unavailable

48

Hex. Screw With Nylon M8 X 40

250000074

Unavailable

49

PIVOT SUPPORT - Call your local BRP dealership

506151536

Unavailable

50

Hex. Screw M8 X 20

207182044

$0.61

51

Flat Washer 8 mm

234081410

Unavailable

52

Handlebar

506151730

Unavailable

53

HANDLE GRIP - Call your local BRP dealership | REN X

506152122

Unavailable

54

Black Hook

506151596

Unavailable

55

Horn

549011291

$35.35

56

Steering Pad

506151737

Unavailable

57

Strap Ass'y | Package XMR

506152115

$43.05

58

Strap Ass'y | Package XMR

506152115

$43.05

59

Support Plate

506148200

Unavailable

60

Hex. Screw M6 X 25

207162544

Unavailable

61

Flat Washer 6 mm

234061410

Unavailable

62

Elastic Stop Nut M6

232561414

Unavailable

63

Grease Fitting

408200700

Unavailable

64

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

65

Upper Decal

516001750

Unavailable
