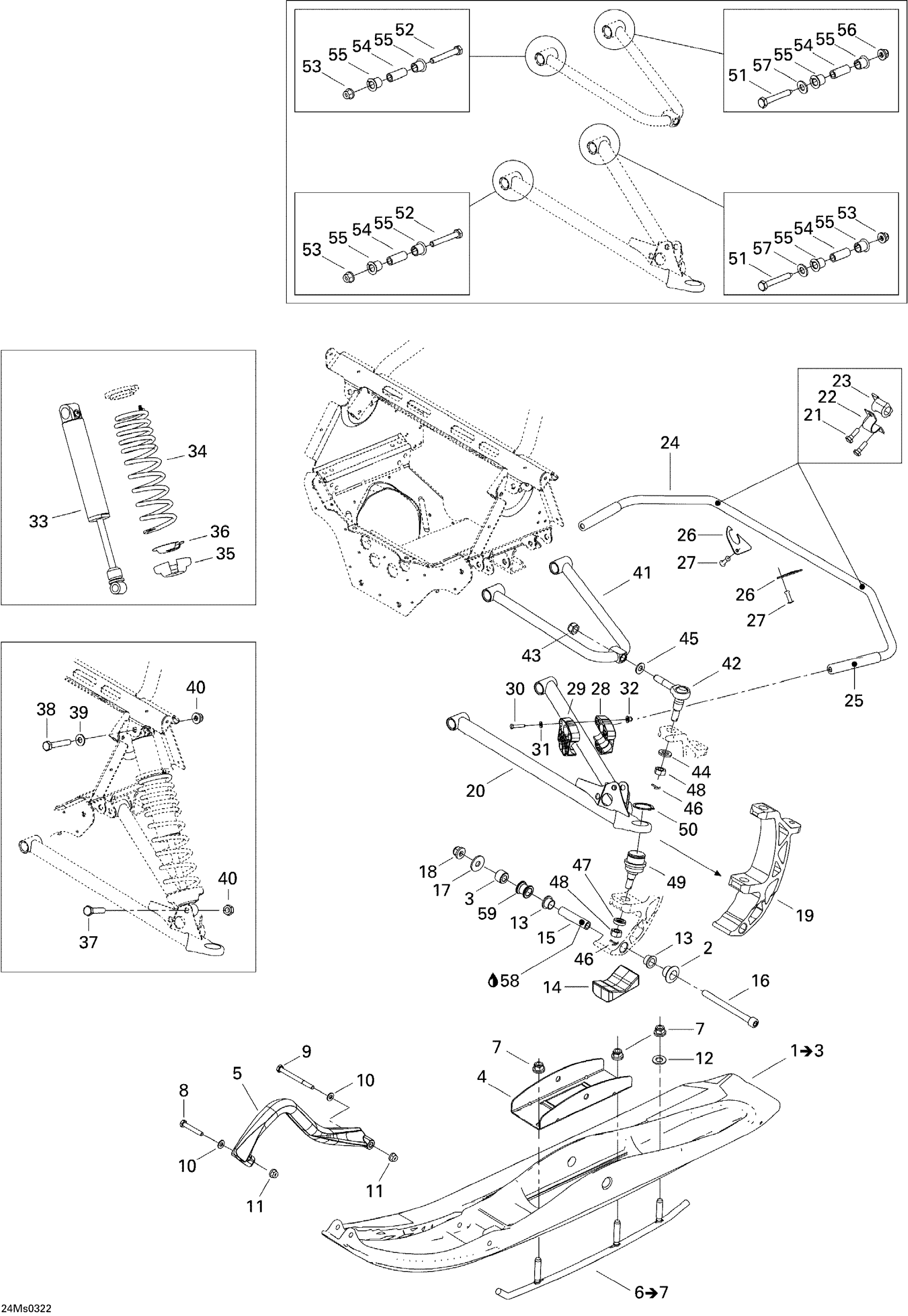

Ski-Doo Summit X 800 HO, 2003 Front Suspension And Ski Diagram

#

Description
Price

1

RH Ski Ass'y | INCLUDES 1 TO 3 This part replaces 505071046.

505071391

Unavailable

LH Ski, Black Ass'y | INCLUDES 1 TO 3

505071047

Unavailable

2

CUSHION - Call your local BRP dealership

505070743

Unavailable

3

CUSHION - Call your local BRP dealership

505070823

Unavailable

4

Ski Renforcement

505070745

Unavailable

5

Black, Handle

505070963

Unavailable

6

Lisse 6 *6 Carbide | Includes 8 to 9 This part replaces 860504800.

860200582

Unavailable

7

Hex. Flange Elastic Nut M10

233201414

$1.26

8

Hex. Screw M8 X 50

207085044

Unavailable

9

SCREW-HEX. M8 X 100 - Call your local BRP dealership

230080044

Unavailable

10

Flat Washer 8 mm

234081410

Unavailable

11

Hex. Flange Elastic Nut M8

233281414

Unavailable

12

Flat Washer

399910100

Unavailable

13

Leg Bushing

505072690

Unavailable

14

Ski Stopper

505070671

Unavailable

15

Spacer

506133300

Unavailable

16

Socket Head Screw M10 X 125

250000069

Unavailable

17

Flat Washer 10 mm This part replaces M20011.

234002410

Unavailable

18

Flange Nut M10

732610084

Unavailable

19

Ski leg

505071214

Unavailable

20

RH Lower Arm Ass'Y | Includes 22, 54 and 55

860509500

Unavailable

RH Lower Arm

505071296

Unavailable

20

LH LOWER ARM ASS'Y - Call your local BRP dealership

860512800

Unavailable

LH LOWER ARM ASS'Y - Call your local BRP dealership

860512800

Unavailable

21

Hex. Screw With Nylon

250000118

Unavailable

22

CLAMP - Call your local BRP dealership

506095800

Unavailable

23

LH BUSHING, 5/8? - Call your local BRP dealership

505070665

Unavailable

RH BUSHING, 5/8 - Call your local BRP dealership

505070881

Unavailable

24

Stabilisator

505070785

Unavailable

25

STABILISATOR BOOT, 5/8? - Call your local BRP dealership

505070750

Unavailable

26

Plug

505070874

Unavailable

27

Pop Rivet 3/16"

293150103

Unavailable

28

RH HALF SLIDER - Call your local BRP dealership

505070667

Unavailable

29

LH Half Slider

505070668

Unavailable

30

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

31

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

32

Hex. Flange Elastic Nut M5

233251414

Unavailable

33

Front Shock | X, Highmark X, HM Xtreme

505071135

Unavailable

34

Spring | X, Highmark X, HM Xtreme

505070760

Unavailable

35

Spring Stopper

706200881

$10.30

36

Cap

706200785

Unavailable

37

Hex. Screw M10 X 55

207005544

$1.85

38

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

39

Washer

732900049

Unavailable

40

Hex. Flange Elastic Nut M10

233201414

$1.26

41

RH upper arm

505071222

Unavailable

LH upper arm

505070791

Unavailable

42

Upper ball joint

505071110

Unavailable

43

Hex. Flange Elastic Nut M12

250000047

Unavailable

44

Flat Washer 12 mm

234021410

$0.68

45

Washer

503189276

Unavailable

46

Cotter Pin

211400017

Unavailable

47

Washer

505071184

Unavailable

48

Hex. Castellated Nut M12

232221414

Unavailable

49

Lower Ball Joint

505071074

Unavailable

50

Circlip

293370035

$2.55

51

Cone Screw M10 X 75

250000114

Unavailable

52

Hex. Screw M10 X 70

207007044

Unavailable

53

Hex. Flange Elastic Nut M10

233201414

$1.26

54

Aluminium Bushing

505070960

Unavailable

55

Arm Bushing

505070566

Unavailable

56

Elastic Locking Nut M10 X 1.5

233601416

$1.68

57

Washer

503189564

Unavailable

58

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

59

SPACER - Call your local BRP dealership

505071215

Unavailable
