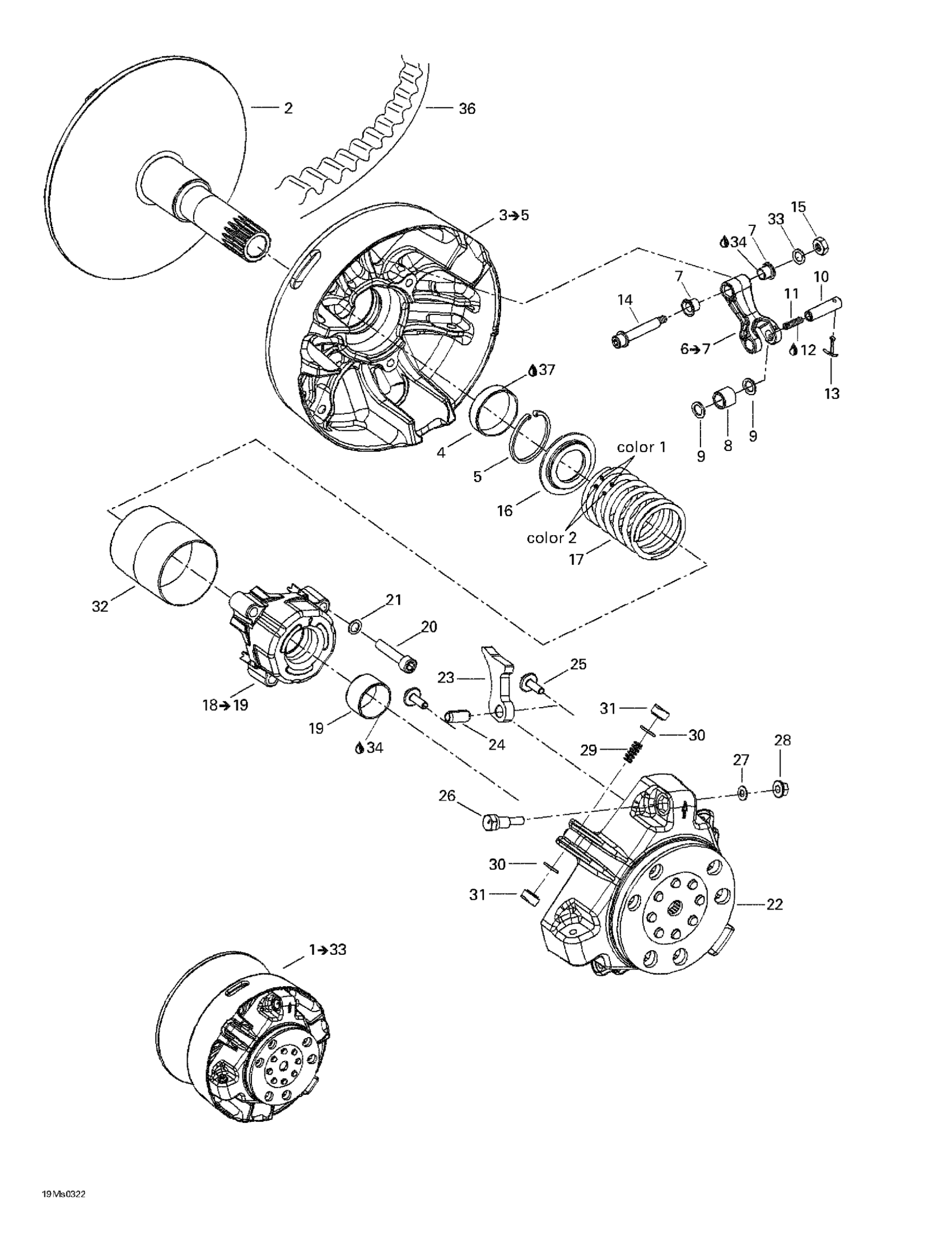

Ski-Doo Summit X 800 HO, 2003 Drive Pulley Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Flasque Fixe As*Flange-Fixe Ass. This part replaces 417222904.

417222970

Unavailable

3

Flasque Coul.As*Flange-Slid Kit | Includes 3 to 6 This part replaces 417222171.

415129293

Unavailable

4

Bushing

417222758

$20.74

5

Circlip

293370037

$3.02

6

Lever | Includes 10f to 10g

417222671

$32.28

7

Bushing

417004305

Unavailable

8

Roller

417222947

$19.97

9

Stopper Washer

417004302

$15.99

10

Threaded Pin

417222477

Unavailable

11

Socket Set Screw M6 X 20

206262099

Unavailable

12

Loctite 243, 10 ml

293800060

$20.77

13

Cotter Pin

250400060

$1.60

14

SCREW ASS'Y - Call your local BRP dealership

417222028

Unavailable

15

Elastic Stop Nut M6

232561414

Unavailable

16

Spring Seat

417222312

$8.28

17

Spring, Violet/yellow This part replaces 415128608.

415015300

$14.75

18

Spring Cover Ass'y | Includes 10r to 10t

417007500

$46.12

19

Bushing

417009204

$16.12

20

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

21

Lock Washer 8 mm

250200009

Unavailable

22

Governor Cup

417222213

Unavailable

23

RAMP 415 - Call your local BRP dealership

417222548

Unavailable

24

Spring Pin M10 X 22

250400050

$2.38

25

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.26

26

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

27

Washer

417005600

$3.86

28

Hex. Flange Nut M6

233061414

Unavailable

29

Spring

417005700

Unavailable

30

O-Ring

732401030

$0.95

31

Slider Shoe This part replaces 420460045.

417223021

$6.09

32

Guard

417009205

$16.89

33

Flat Washer 6 mm

234061410

Unavailable

34

Loctite 609, 10 ml

413703100

$24.58
