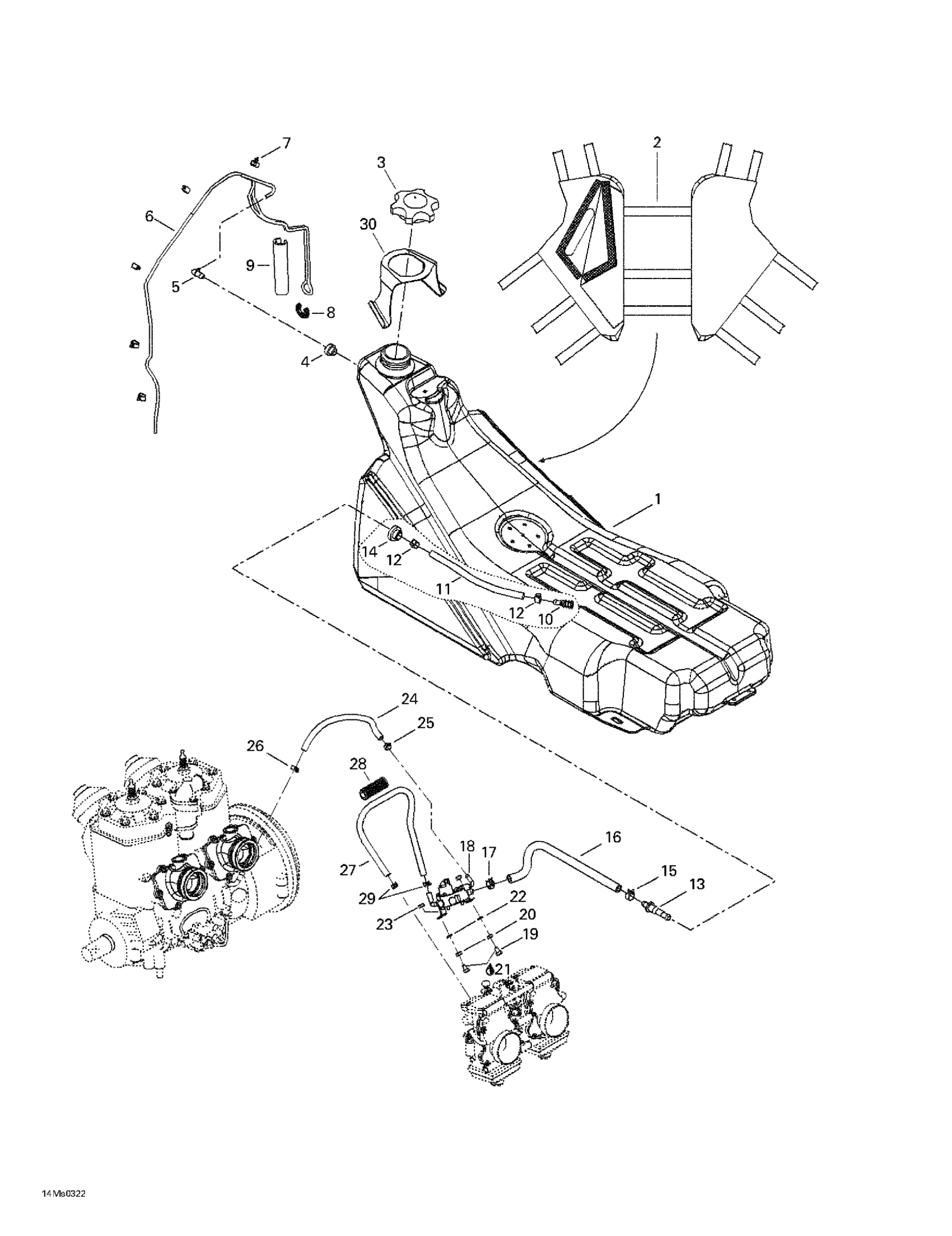

Ski-Doo Summit X 800 HO, 2003 Fuel System Diagram

#

Description
Price

1

Fuel tank

513033069

Unavailable

2

TANK COVER, BLACK - Call your local BRP dealership

513033075

Unavailable

3

Fuel Tank Cap 91 Octane

513033722

$23.05

4

Grommet

513032908

$8.74

5

Male Connector

414814100

$2.18

6

Was 415080100 Fuel Line Primer 3,2mm

219704409

Unavailable

7

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable

8

SPRING - Call your local BRP dealership

414818200

Unavailable

9

PROTECTOR - Call your local BRP dealership

512059750

Unavailable

10

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

11

Hose

513033070

$12.62

12

Norma Spring Clamp

513033010

Unavailable

13

Male Connector

414872700

Unavailable

14

Grommet | Europe

707800347

Unavailable

15

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

16

Hose

513033073

Unavailable

17

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

18

Fuel Pump | Manuel Start

403901811

Unavailable

19

TRUSS PHILLIPS SCREW M6 X 25 - Call your local BRP dealership

250000035

Unavailable

20

Hex. Nut M6

232061414

$0.44

21

Loctite 271, 10 ml

293800005

Unavailable

22

Flat Washer

224061121

$0.44

23

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

24

HOSE - Call your local BRP dealership

513033035

Unavailable

25

Spring Clamp

414415200

$0.83

26

Universal Spring Clamp

513033029

Unavailable

27

Tube

415117800

Unavailable

28

Tubing 10 MM 1000MM Long

219704407

Unavailable

29

Spring Clamp

414420700

Unavailable

30

SUPPORT - Call your local BRP dealership

513033066

$11.98
