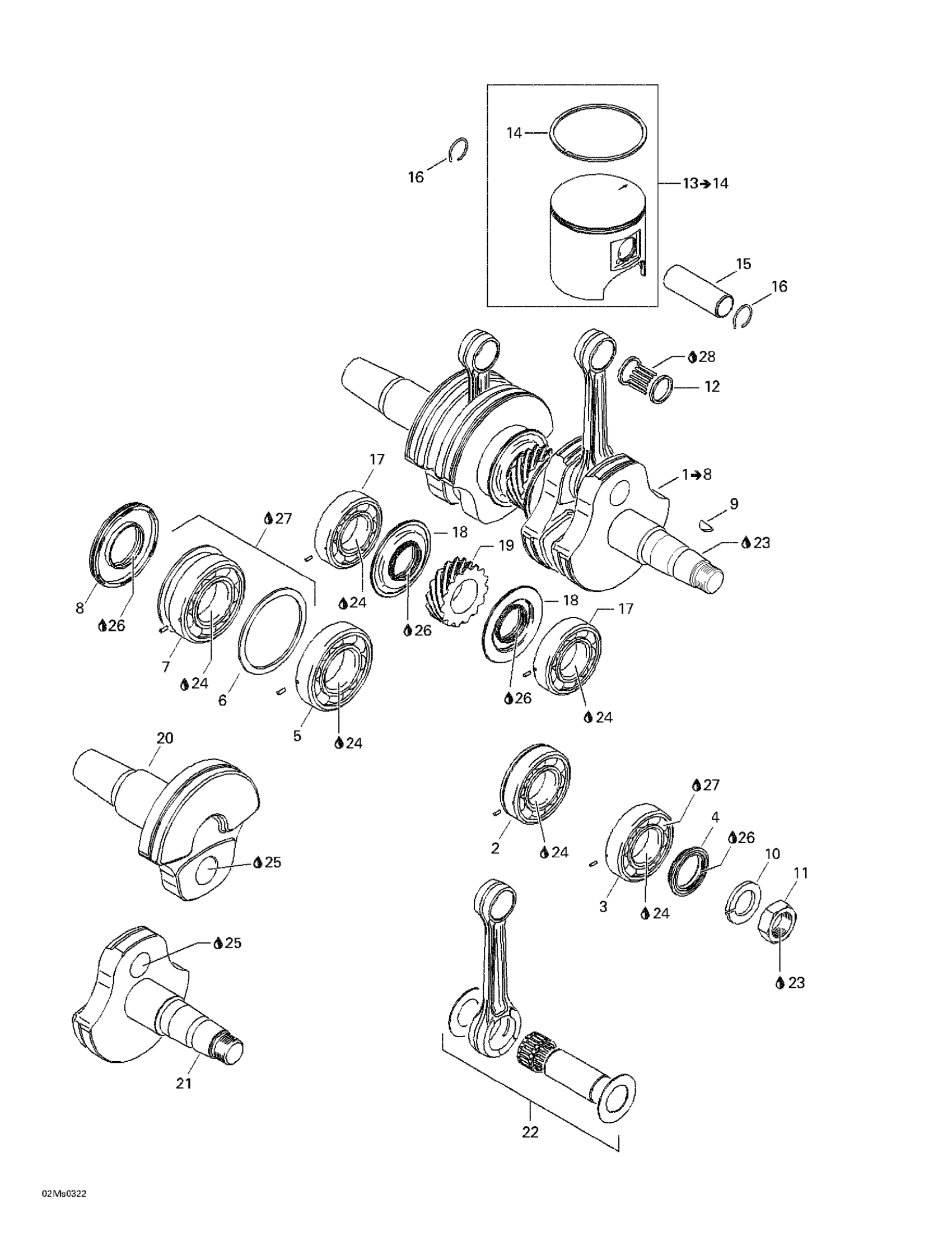

Ski-Doo Summit X 800 HO, 2003 Crankshaft And Pistons Diagram
#
Description
Price
1
Crankshaft ass'y | Summit 800 HO.
420889671
Unavailable
3
Ball Bearing 6207 | With drive pin
420832575
Unavailable
5
Ball Bearing | With drive pin
420832602
Unavailable
6
Washer
420926190
Unavailable
7
Ball Bearing | With drive pin
420832702
Unavailable
8
Oil Seal | Included in gasket kit
420931284
Unavailable
9
Woodruff Key
420246015
Unavailable
10
Lock Washer, 22 mm
420945759
Unavailable
11
Hex. Nut, M22 X 1.5
420842239
Unavailable
12
Needle Bearing
420832445
Unavailable
13
Piston 81 | Includes 13 to 14 This part replaces 420889456.
420889457
Unavailable
14
SEMI-TRAPEZ RING - Call your local BRP dealership
420815360
Unavailable
15
GUDGEON PIN - Call your local BRP dealership
420916371
Unavailable
16
Piston Circlip
420845106
Unavailable
17
Ball Bearing 6207 | With drive pin
420832575
Unavailable
18
Oil Seal
420931455
Unavailable
19
CENTRAL GEAR - Call your local BRP dealership
420834355
Unavailable
20
CRANKSHAFT (PTO) - Call your local BRP dealership This part replaces 420819032.
420819030
Unavailable
21
Crankshaft, Mag
420819061
Unavailable
22
Rod Repair Kit, Mag
420889108
Unavailable
Rod Repair Kit, PTO
420889109
Unavailable
24
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
25
Sealant Loctite 648
219703000
Unavailable
26
Petamo Grease, GHY133N, 400 g
420899271
Unavailable
27
Isoflex Grease, TOPAS NB52, 50 g
293550021
Unavailable
28
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.
779119
Unavailable
