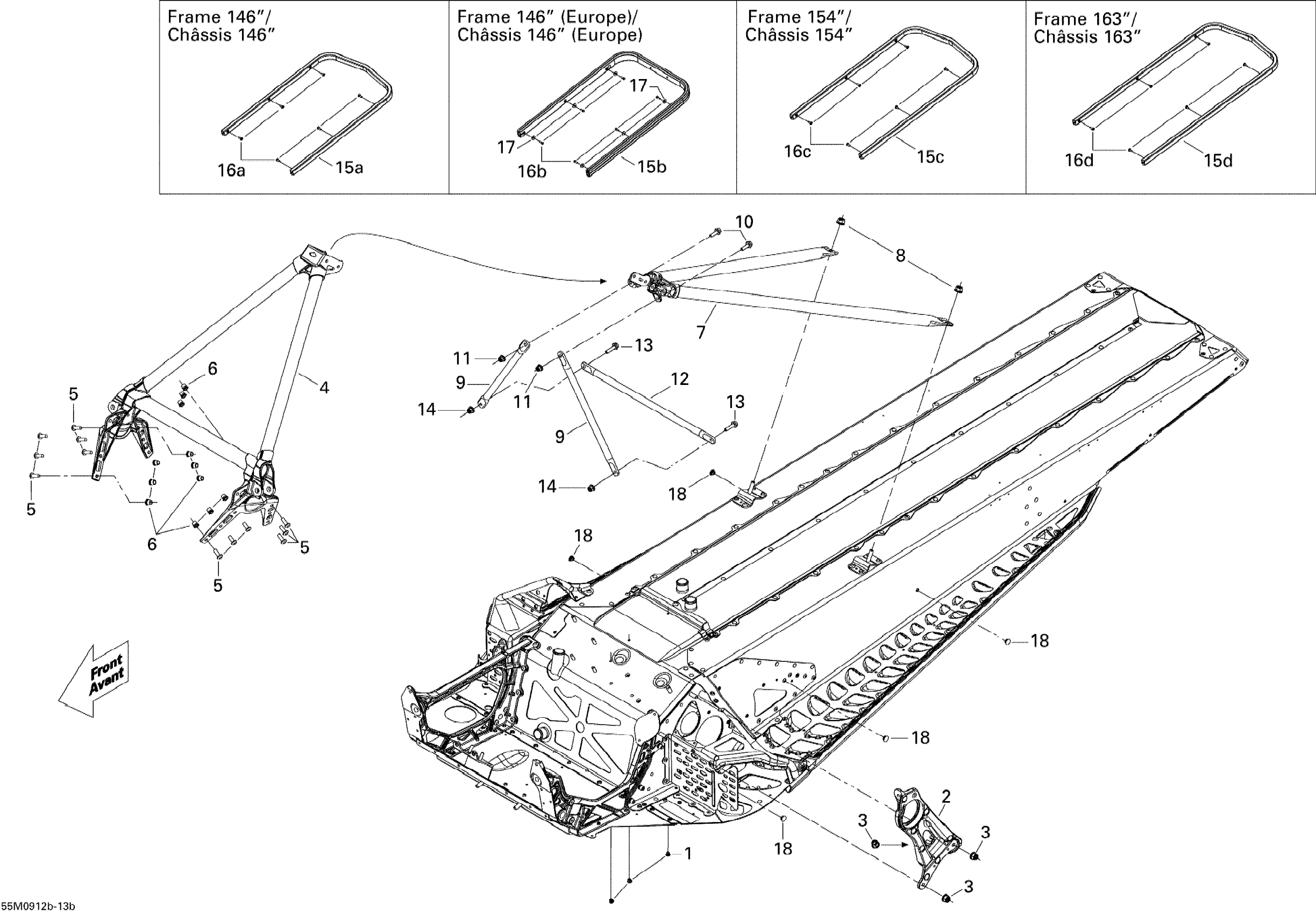

Ski-Doo Summit X 600 H.O. E-TEC, 2009 Frame and Components 2 Diagram

#

Description
Price

1

Pop Rivet 3/16"

390402400

Unavailable

2

Driven Pulley Support This part replaces 518327133.

518327460

$102.28

3

Hex. Flange Elastic Nut M8

233281414

Unavailable

4

Front Member

518326970

$276.12

5

Hex. Flange Screw M6 X 20

207662044

Unavailable

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

7

Rear Member

518326559

Unavailable

8

Hex. Flange Elastic Nut M8

233281414

Unavailable

9

Upper Lateral Column Support

518325114

Unavailable

10

Hex. Flange Screw M6 X 20

207662044

Unavailable

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

12

Center Column Support

518325115

Unavailable

13

Hex. Flange Screw M6 X 25

207662544

Unavailable

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

15a

Rear Bumper, 146"

518325374

$109.97

15b

Not Available As Spare Parts

XXX

Unavailable

15c

Clear Rear Bumper, 154" | 800R PTEK 154"

518324982

Unavailable

15d

CLEAR REAR BUMPER, 163 - Call your local BRP dealership | Track 163"

518325375

Unavailable

16a

Torx Screw M6 X 16

250000223

$1.74

16b

Not Available As Spare Parts

XXX

Unavailable

16c

Torx Screw M6 X 16

250000223

$1.74

16d

Torx Screw M6 X 16

250000223

$1.74

17

Not Available As Spare Parts

XXX

Unavailable

18

Full Moon Dart 8 mm

293730041

$2.12
