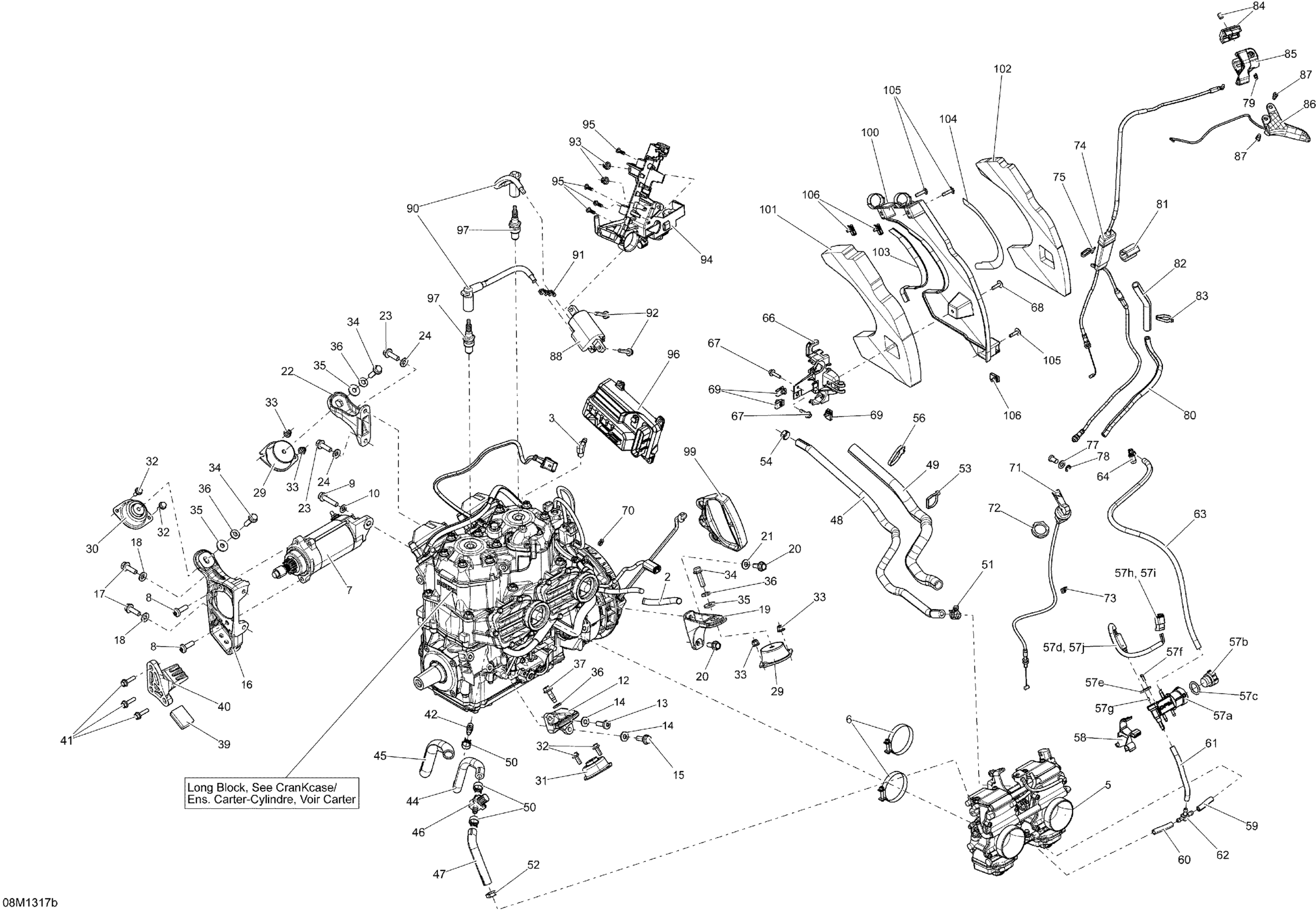

Ski-Doo SUMMIT SPORT 800R PTEK XP, 2013 Engine And Engine Support 800RPTEK Diagram

#

Description
Price

2

Tubing 10 MM 1000MM Long

219704407

Unavailable

3

ELBOW FITTING 90 - Call your local BRP dealership

293700045

Unavailable

5

CARBURATOR KIT, TM40-B397 - Call your local BRP dealership | Engine 800R

403138805

Unavailable

6

Gemi Clamp

512059835

Unavailable

7

Not Available As Spare Parts

XXX

Unavailable

8

Not Available As Spare Parts

XXX

Unavailable

9

Not Available As Spare Parts

XXX

Unavailable

10

Not Available As Spare Parts

XXX

Unavailable

12

Rear Support, PTO

512060478

$29.97

13

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

14

Conical Spring Washer M8

250200146

Unavailable

15

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

16

Front Support, PTO

512060714

$85.35

17

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

18

Conical Spring Washer M8

250200146

Unavailable

19

Rear Support, MAG

512060559

$29.97

20

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

21

Conical Spring Washer M8

250200146

Unavailable

22

Front Support, MAG

512060469

$31.51

23

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

24

Conical Spring Washer M8

250200146

Unavailable

29

Rubber Mount

512060729

$69.97

30

Rubber Mount

512060387

$42.28

31

Rubber Mount

512060448

$42.28

32

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

34

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

Unavailable

35

Yellow, Washer

503183200

Unavailable

36

Conical Spring Washer M8

250200146

Unavailable

37

Hex. Flange Screw M8 X 1.25 X 25

250000796

$1.74

39

Stopper

512060766

$9.31

40

Stopper Support

512060576

$28.43

41

Hex. Flange Screw M6 X 25

207562544

$1.39

42

Male Connector 1/8"-27 NPT

512060196

Unavailable

44

HOSE FORMED ENGINE OUTLET - Call your local BRP dealership

512060357

$21.51

45

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

46

Valve 5/16” | Grand Touring 500.

512059324

Unavailable

47

Hose Formed

512060353

Unavailable

48

Hose Formed

512060347

Unavailable

49

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

50

Spring Clamp

414655700

Unavailable

51

Norma Spring Clamp

293650214

$15.35

52

Oetiker Clamp

293650125

$2.69

53

Tie-Rap 180 mm

414115200

$0.09

54

Oetiker Clamp

293650046

Unavailable

56

Tie-Rap 180 mm

414115200

$0.09

57a

PRESSURE MANIFOLD ASS'Y - Call your local BRP dealership

512060002

$221.51

57b

CAP - Call your local BRP dealership

270600009

$5.63

57c

O-RING - Call your local BRP dealership

293300042

$7.69

57d

PRESSURE MANIFOLD HARNESS - Call your local BRP dealership

515175701

$73.82

57e

SOLENOID LOCK - Call your local BRP dealership

415061600

Unavailable

57f

Screw K40 X 10

241140060

$1.25

57g

STARTER JET - Call your local BRP dealership

404161825

Unavailable

57h

Female Terminal Housing, 2 Circuits

515175670

Unavailable

57i

Female Lock, 2 Circuits

515175675

Unavailable

57j

Vinyl Tubing, Low Temp 3000Mm Long

219704424

Unavailable

58

DPM SUPPORT - Call your local BRP dealership

512060229

Unavailable

59

Polyurethane Hose 10000Mm Long

219704410

Unavailable

60

Polyurethane Hose 10000Mm Long

219704410

Unavailable

61

Polyurethane Hose 10000Mm Long

219704410

Unavailable

62

T-FITTING - Call your local BRP dealership | Engine 800R

414729300

Unavailable

63

Polyurethane Hose 10000Mm Long

219704410

Unavailable

64

Male Connector

414580700

Unavailable

66

Solenoid Support

512060298

$12.52

67

Hex.Flange Screw M5 X 20

207652044

$1.56

68

Torx Screw M5 X 20

250000528

Unavailable

69

Panel Nut M5 X 0.8

250000958

Unavailable

70

Tie Wrap 94 mm | 4X4

293750001

$0.83

71

Choke Cable

512060672

Unavailable

72

Plastic Nut

512060671

$0.98

73

Tie-Rap 180 mm

414115200

$0.09

74

Throttle Cable

512060893

Unavailable

75

Tie-Rap 180 mm

414115200

$0.09

77

Flat Washer 8 mm, Nylon

234081100

$1.00

78

Circlip

414753500

$0.59

79

Circlip

414274500

Unavailable

80

Tubing 6 Mm 3000Mm Long

219704425

$13.14

81

Protector

512060313

$9.31

82

Tubing 10 MM 1000MM Long

219704407

Unavailable

83

Tie-Rap 180 mm

414115200

$0.09

84

Upper Housing

512060859

Unavailable

85

Lower Housing

512060860

Unavailable

86

Throttle Handle Ass'y

512061252

Unavailable

87

Flange Screw

732601143

$4.02

88

Ignition Coil

512059968

Unavailable

90

Cable

512060291

Unavailable

91

Plastic Clip, Spark Plug Wire

410914600

Unavailable

92

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

93

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

94

Coils Support

512060924

$9.31

95

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

96

CALIBRATED MODULE, 800R POWERT.E.K. - Call your local BRP dealership | Engine 800R

512060684

Unavailable

97

Spark Plug NGK BR9ECS

415128524

Unavailable

99

Starter Grip

512060136

$14.54

100

Noise Shield

512060338

Unavailable

101

Inner Noise Foam

512060341

Unavailable

102

Outer Noise Foam

512060342

Unavailable

103

Heat Shield

512060574

Unavailable

104

Heat Shield

512060575

Unavailable

105

Torx Screw M5 X 20

250000528

Unavailable

106

Panel Nut M5 X 0.8

250000958

Unavailable
