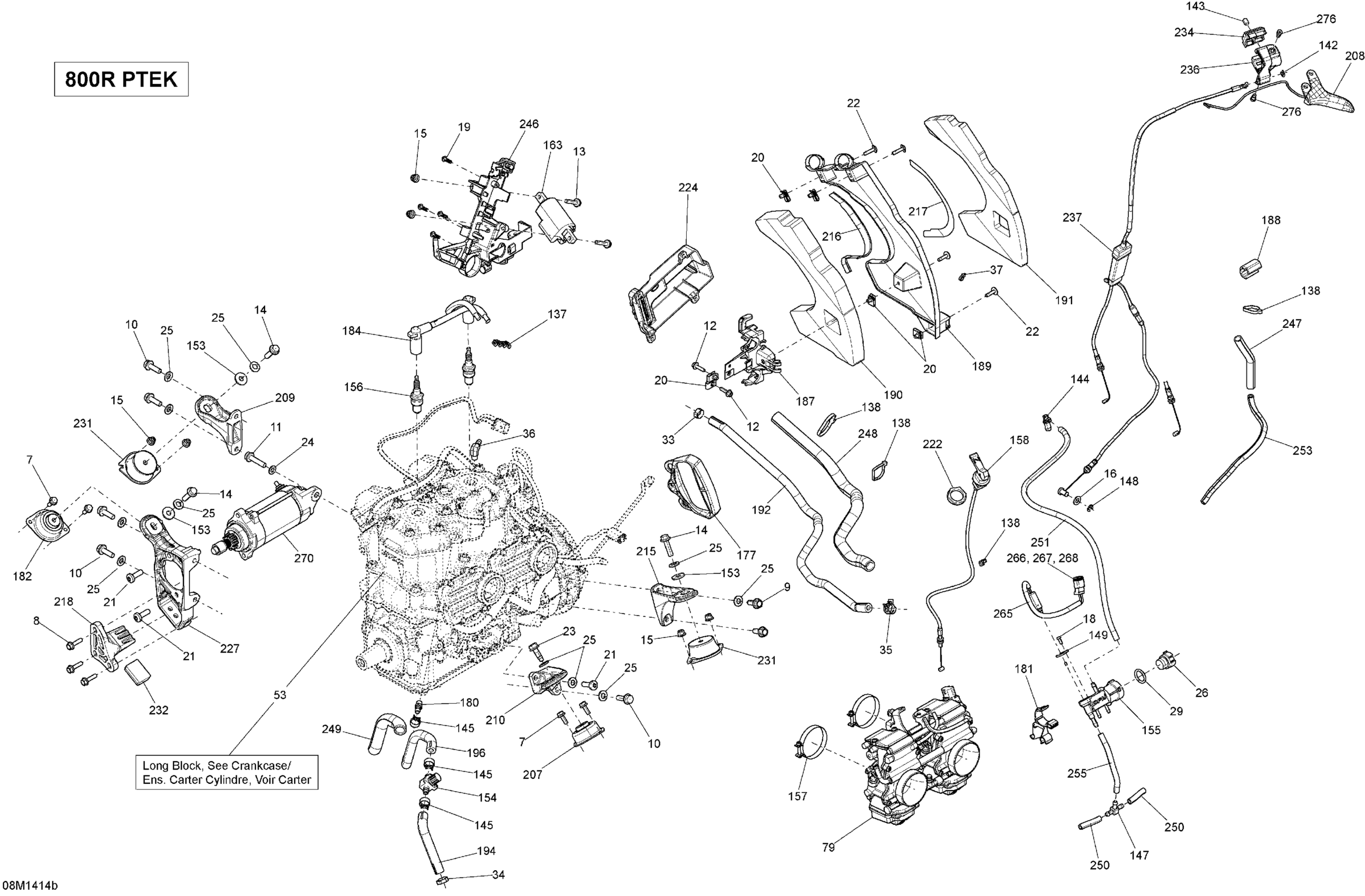

Ski-Doo SUMMIT SPORT 800R POWERTEK XP 154, 2014 Engine And Engine Support 800R Diagram

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

Hex. Flange Screw M6 X 25

207562544

$1.60

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

Hex Flange Screw M8 X 35, Scotch Grip

207583544

$4.15

Hex.Flange Screw M5 X 20

207652044

$1.79

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.49

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Flat Washer 8 mm, Nylon

234081100

$1.15

Screw K40 X 10

241140060

$1.43

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.37

Panel Nut M5 X 0.8

250000958

$4.00

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.81

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.81

Torx Screw M5 X 20

250000528

$2.00

Hex. Flange Screw M8 X 1.25 X 25

250000796

$2.00

Flat Washer With Teflon 8 mm

250200008

$3.58

Conical Spring Washer M8

250200146

$0.96

CAP - Call your local BRP dealership

270600009

Unavailable

O-RING - Call your local BRP dealership

293300042

Unavailable

Oetiker Clamp

293650046

$2.67

Oetiker Clamp

293650125

$3.09

Norma Spring Clamp

293650214

$14.90

ELBOW FITTING 90 - Call your local BRP dealership

293700045

Unavailable

Tie Wrap 94 mm | 4X4

293750001

$0.96

Not Available As Spare Part - Friction Washer

Unavailable

CARBURATOR KIT, TM40-B397 - Call your local BRP dealership | Engine 800R

403138805

Unavailable

Plastic Clip, Spark Plug Wire

410914600

$5.30

Tie-Rap 180 mm

414115200

$0.10

Circlip

414274500

$0.85

Socket Set Screw M8 X 10

414440800

$3.88

Male Connector

414580700

$3.88

Spring Clamp

414655700

$0.66

T-FITTING - Call your local BRP dealership | Engine 800R

414729300

Unavailable

Circlip

414753500

$0.67

SOLENOID LOCK - Call your local BRP dealership

415061600

Unavailable

Yellow, Washer

503183200

$2.91

Valve 5/16” | Grand Touring 500.

512059324

$41.01

PRESSURE MANIFOLD ASS'Y - Call your local BRP dealership

512060002

Unavailable

Spark Plug NGK BR9ECS

415128524

$11.13

Gemi Clamp

512059835

$10.21

Choke Cable

512060672

$44.75

Ignition Coil

512059968

$48.48

Starter Grip

512060136

$14.10

Male Connector 1/8"-27 NPT

512060196

Unavailable

DPM SUPPORT - Call your local BRP dealership

512060229

Unavailable

Rubber Mount

512060387

$41.01

Cable

512060291

$46.99

Solenoid Support

512060298

$12.15

Protector

512060313

$9.03

Noise Shield

512060338

$17.13

Inner Noise Foam

512060341

$17.13

Outer Noise Foam

512060342

$17.13

Hose Formed

512060347

Unavailable

Hose Formed

512060353

$21.61

HOSE FORMED ENGINE OUTLET - Call your local BRP dealership

512060357

Unavailable

Rubber Mount

512060448

$41.01

Throttle Handle Ass'y

512061252

$114.15

Front Support, MAG

512060469

$30.57

Rear Support, PTO

512060478

$29.07

Rear Support, MAG

512060559

$29.07

Heat Shield

512060574

$7.13

Heat Shield

512060575

$7.13

Stopper Support

512060576

$27.58

Plastic Nut

512060671

$0.96

CALIBRATED MODULE, 800R POWERT.E.K. - Call your local BRP dealership | Engine 800R

512060684

Unavailable

Front Support, PTO

512060714

$82.81

Rubber Mount

512060729

$67.88

Stopper

512060766

$9.03

Upper Housing

512060859

$8.13

Lower Housing

512060860

$16.39

Throttle Cable

512060893

$73.85

Coils Support

512060924

$9.03

Tubing 10 MM 1000MM Long

219704407

$2.52

Tubing 16 Mm 1000Mm Long

219704408

$7.15

Tubing 6 Mm 3000Mm Long

219704425

$12.75

Polyurethane Hose 10000Mm Long

219704410

$52.96

PRESSURE MANIFOLD HARNESS - Call your local BRP dealership

515175701

Unavailable

Female Terminal Housing, 2 Circuits

515175670

$7.61

Female Lock, 2 Circuits

515175675

$4.28

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$18.63

Starter

515178473

$319.49

Flange Screw

732601143

$3.90
