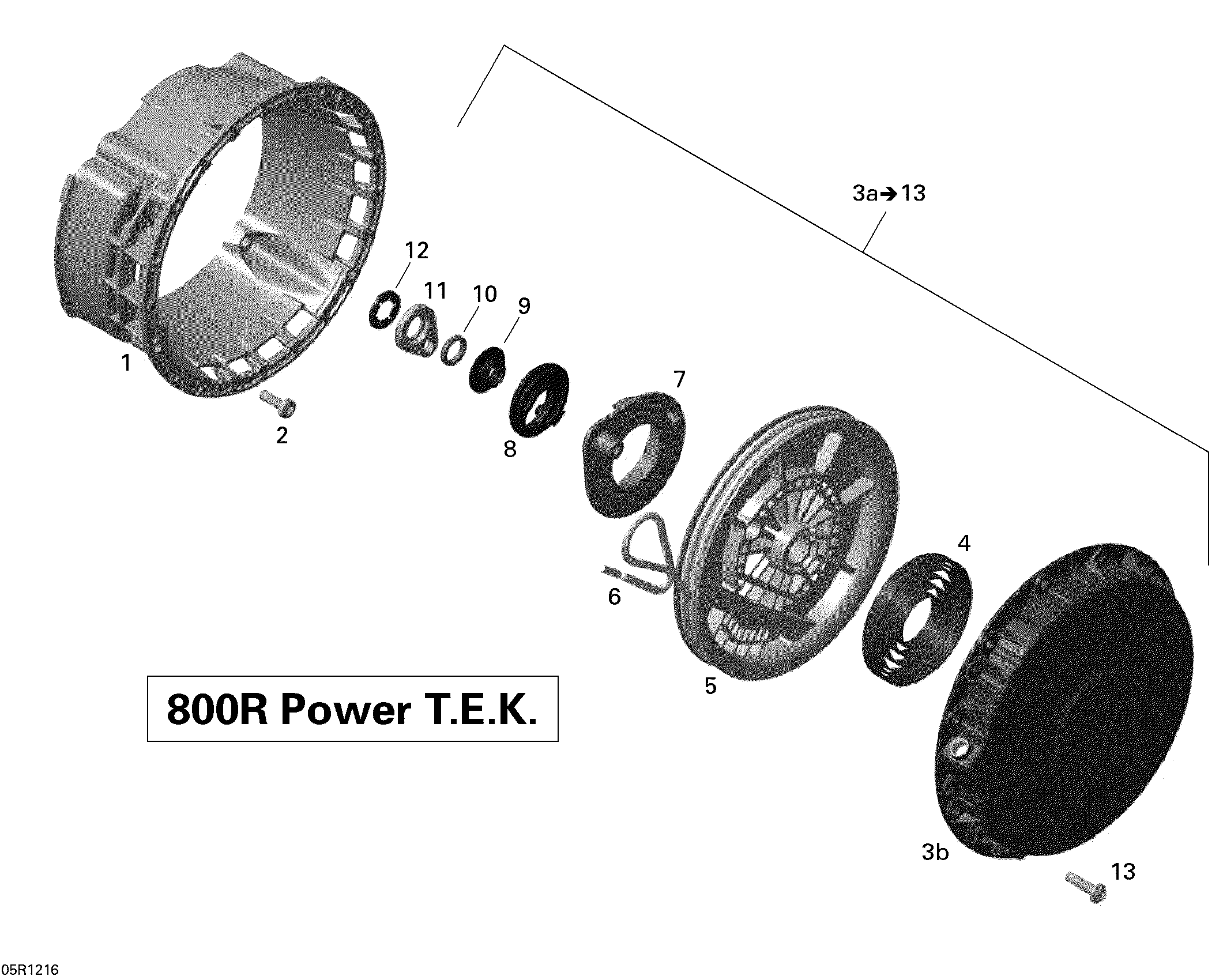

Ski-Doo Summit SPORT 800R P-TEK, 2012 Rewind Starter Diagram

#

Description
Price

1

Flange Connector

420812941

$73.05

2

Torx Flange Screw M6 X 20

420441386

Unavailable

3a

Rewind Starter Ass'y | Includes 3a to 12 This part replaces 420892619.

420892614

$166.12

3b

Starter Housing

420910256

$89.20

4

Rewind Spring

420939115

$25.32

5

Rope Sheave

420852288

$39.97

6

Was 412500100 Rope-Starter

219704403

Unavailable

7

Pawl

420852633

$32.28

8

Pawl Lock | Includes no. 8-9

420852640

$5.51

9

Stage Sleeve

420847926

Unavailable

10

O-Ring

420250407

$1.85

11

Lock Ring

420852520

Unavailable

12

Locking Element

420845560

Unavailable

13

Plastite Screw

420940431

Unavailable
