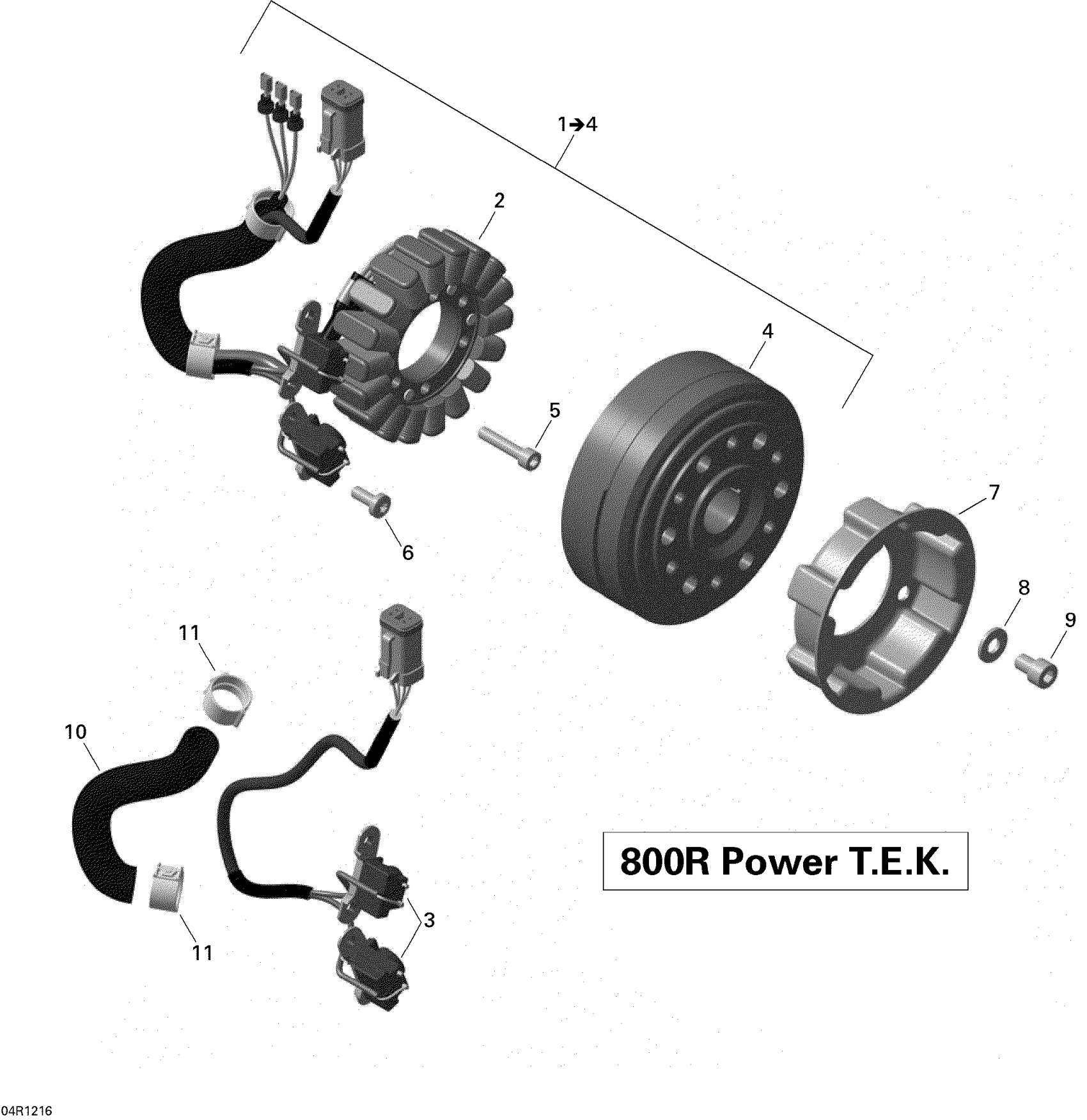

Ski-Doo Summit SPORT 800R P-TEK, 2012 Magneto Diagram

#

Description

Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Stator Plate | Includes 2 to 3

420889904

$319.49

3

Pickup Ass'y

410922948

Unavailable

4

Flywheel

420665723

$516.89

5

Socket Head Screw M6 X 30

205063044

Unavailable

6

Torx Screw M6 X 16

420640324

$2.06

7

Starting Pulley | Manual Start This part replaces 420852532.

420852533

Unavailable

8

Flat Washer

420827405

$1.66

9

Hex. Screw M8 x 16

207181644

$0.87

10

Tube

420460871

$2.06

11

Conduit Clip

420960896

$2.14
