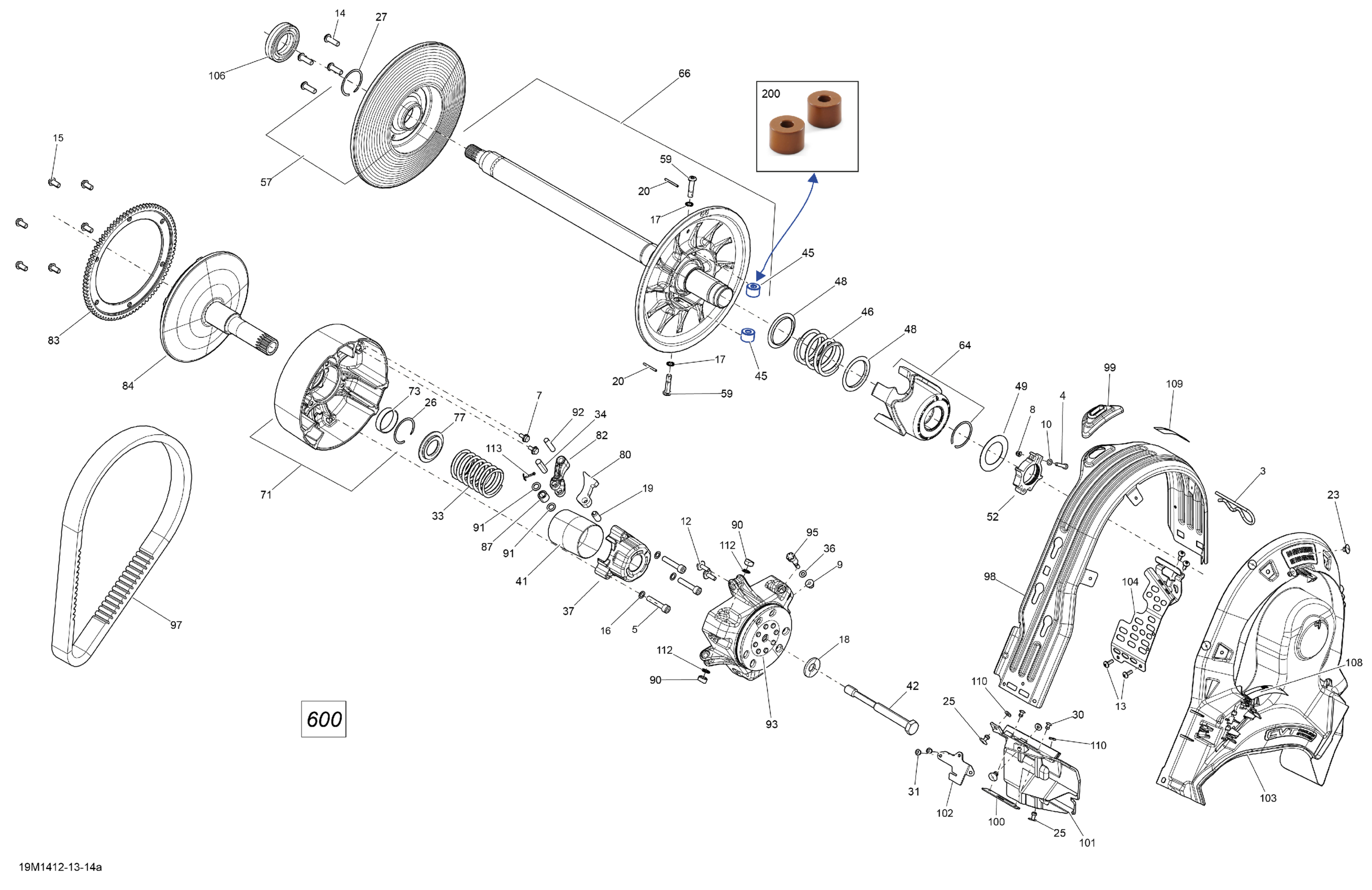

Ski-Doo SUMMIT SPORT 600 XP 146, 2014 Pulley System 600 Diagram

#

Description
Price

3

Hair Pin

114045200

Unavailable

4

Socket Screw M5 X 25

205052544

$1.34

5

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

7

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$3.86

8

Elastic Stop Nut M5

232551414

Unavailable

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

10

Flat Washer M5

234051410

Unavailable

12

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.26

13

Torx Screw M5 X 14

250000742

$1.20

14

Torx Screw M8 X 25, Scotch Grip

250000283

$1.61

16

Lock Washer 8 mm

250200009

Unavailable

17

Lock Washer 8 mm

250200009

Unavailable

18

Conical Spring Washer M14

250200144

Unavailable

19

Spring Pin M10 X 22

250400050

$2.38

20

Spring Pin M3 X 30

250400063

$1.74

23

Pop Rivet 3/16"

293150103

Unavailable

25

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

26

Circlip

293370037

$3.02

27

Circlip

293370049

Unavailable

30

Avex Rivet

390909100

$0.29

31

Avex Rivet

390909200

Unavailable

33

Spring (Blue/Pink)

414916300

Unavailable

34

Pin

417004308

Unavailable

36

Washer

417005600

$3.86

37

Spring Cover Ass'y | Includes 10r to 10t

417007500

$46.12

41

Guard

417009205

$16.89

42

Drive Pulley Bolt

417120000

$63.82

45

Pulley Roller

417127016

Unavailable

46

Black, Return Spring

417127039

Unavailable

48

Swivel Abutment

417127116

Unavailable

49

Washer

417127155

Unavailable

52

Calibration Ass'y

415129604

Unavailable

57

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

Unavailable

59

Pivot Stud

417127294

Unavailable

64

Cam Ass'y | Includes 100m to 100q

417127371

Unavailable

66

Fix Flange Ass'y | Includes 100a to 100a4

417127389

Unavailable

71

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$198.43

73

Bushing

417222758

$20.74

77

Spring Seat

417222312

$8.28

80

Ramp 417

417222552

Unavailable

82

Lever | Includes 10f to 10g

417222671

$32.28

83

Not Available As Spare Parts

XXX

Unavailable

84

Fixed Flange Ass'y

417222937

$226.12

87

Roller

417222947

$19.97

90

Slider Shoe

417222992

Unavailable

91

Stopper Washer

417004302

$15.99

92

Lever Axle

417223164

$4.25

93

Governor Cup Ass'y

417223669

$456.89

95

Calibration Screw

417223501

$27.66

97

Drive Belt

417300586

$154.58

98

Belt Guard

417300357

$86.12

99

Guide

417300381

$9.23

100

Reinforcement Plate

417300421

$4.14

101

Front Support

417300422

Unavailable

102

Front Bracket

417300423

$5.17

103

CVT Air Duct

417300439

Unavailable

104

BELT GUARD BRACKET - Call your local BRP dealership

417300448

$29.20

106

Ball Bearing

504152574

Unavailable

108

Decal English

516005503

Unavailable

109

Safety Belt Guard Decal

516005509

Unavailable

110

Flat Washer

517225900

$0.17

112

O-Ring

732401030

$0.95

113

Cotter Pin

250400060

$1.60

200

QRS XD Roller Kit (2)

861805577

Unavailable
