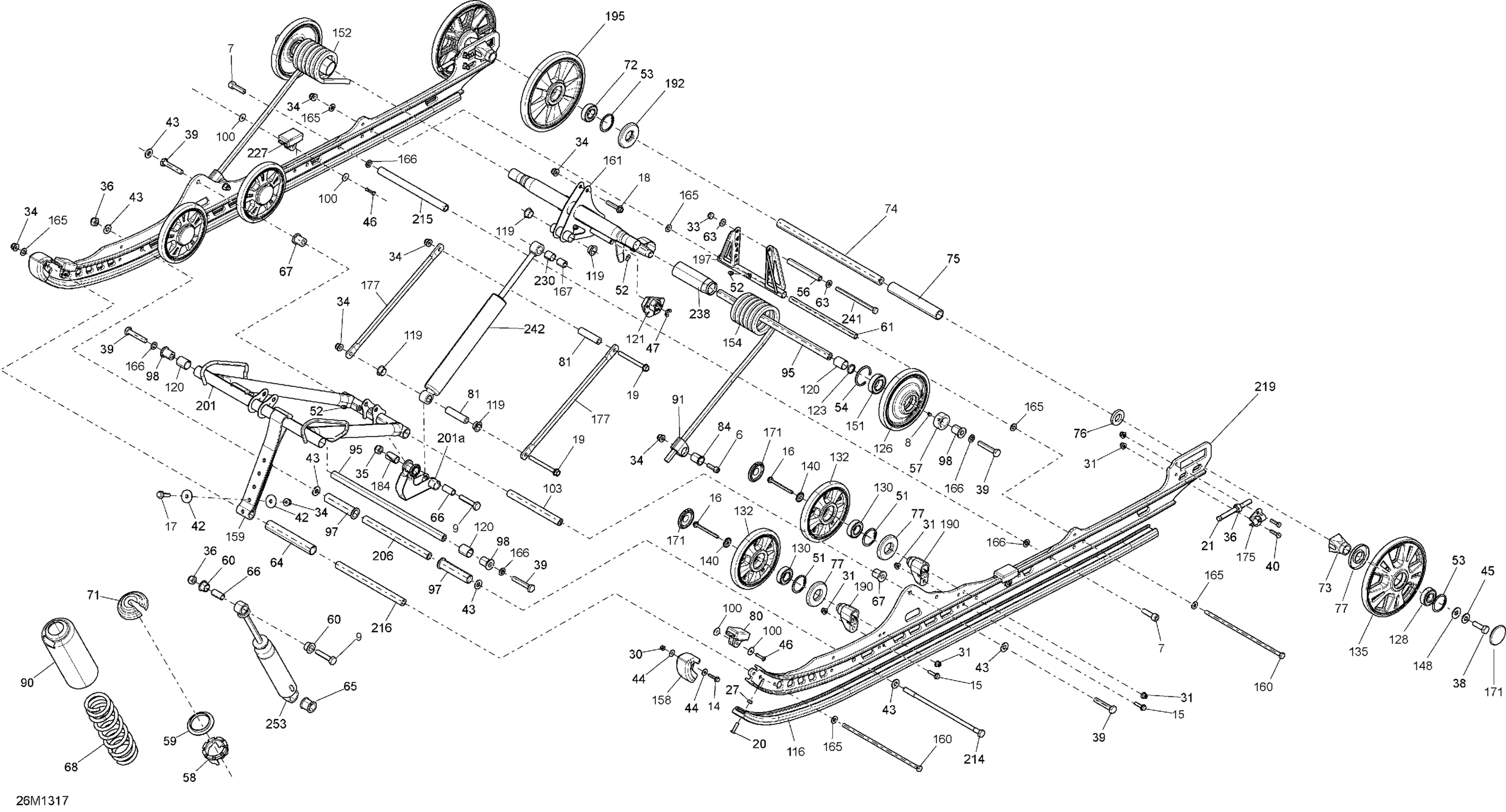

Ski-Doo SUMMIT SPORT 600, 2013 Rear Suspension Diagram
#
6
Socket Screw M8 X 25
205082554
Unavailable
7
Socket Head Screw M10 X 35
205503554
Unavailable
9
Hex. Screw M10 X 1.5 X 50
207005044
Unavailable
9
Hex. Screw M10 X 1.5 X 50
207005044
Unavailable
14
Hex. Flange Screw M5 X 25
207652544
Unavailable
15
Hex. Flange Screw M6 X 25
207662556
Unavailable
17
Hex. Flange Screw M8 X 30 | DS 650 X
207683044
Unavailable
18
Hex. Flange Screw M8 X 40
207684044
Unavailable
19
Hex. Flange Screw
207688544
Unavailable
20
Phillips Screw M6 X 25
208562531
Unavailable
20
Phillips Screw M6 X 25
208562531
Unavailable
27
Elastic Stop Nut M6
232561414
Unavailable
27
Elastic Stop Nut M6
232561414
Unavailable
30
Hex. Flange Elastic Nut M5
233251414
Unavailable
31
Hex. Flange Elastic Nut M6
233261466
Unavailable
31
Hex. Flange Elastic Nut M6
233261466
Unavailable
33
Hex. Elastic Stop Nut M8
232581414
Unavailable
34
Elastic Flange Nut M8
233281466
Unavailable
34
Elastic Flange Nut M8
233281466
Unavailable
34
Elastic Flange Nut M8
233281466
Unavailable
34
Elastic Flange Nut M8
233281466
Unavailable
34
Elastic Flange Nut M8
233281466
Unavailable
34
Elastic Flange Nut M8
233281466
Unavailable
36
Elastic Locking Nut M10
233601466
Unavailable
36
Elastic Locking Nut M10
233601466
Unavailable
36
Elastic Locking Nut M10
233601466
Unavailable
40
Hex Screw M6 X 25
250000619
Unavailable
42
Flat Washer 8 mm
250200128
Unavailable
43
Washer
250200138
Unavailable
43
Washer
250200138
Unavailable
44
Washer
250200140
Unavailable
45
Conical Spring Washer 10 mm
234201474
Unavailable
46
Pop Rivet 3/16"
293150142
Unavailable
47
E-Circlip
293370013
Unavailable
51
Retaining Ring
415129371
Unavailable
52
Grease Fitting
408200700
Unavailable
52
Grease Fitting
408200700
Unavailable
53
Retaining Ring
415129371
Unavailable
53
Retaining Ring
415129371
Unavailable
54
Retaining Ring
415129780
Unavailable
56
Upper Axle, Pivot Arm
503144300
Unavailable
58
Adjustment Cam
505073625
Unavailable
59
Spring Guide
503191872
Unavailable
60
Urethane Bushing
503189117
Unavailable
61
Pivot Arm Axle
503189156
Unavailable
64
Spacer
503191448
Unavailable
65
Bushing
503189271
Unavailable
66
Bushing | Includes 240d to 240d1
503189282
Unavailable
66
Bushing | Includes 240d to 240d1
503189282
Unavailable
68
Black, Spring
503191882
Unavailable
72
Ball Bearing | Package-STD
503190396
Unavailable
75
Spacer
503196317
Unavailable
76
Washer
503190432
Unavailable
77
Labyrinth Seal
503190434
Unavailable
77
Labyrinth Seal
503190434
Unavailable
227
Rubber Stopper
503190576
Unavailable
84
Spring Support Kit
861805547
Unavailable
90
Protector
503193663
Unavailable
91
Spring Support Kit
861805547
Unavailable
97
Center Bushing
503191259
Unavailable
100
Washer
503191273
Unavailable
116
Black, Slider 146
503191499
Unavailable
119
Swivel Bushing
503191555
Unavailable
119
Swivel Bushing
503191555
Unavailable
120
Extended Bushing
503191556
Unavailable
120
Extended Bushing
503191556
Unavailable
121
LH Cam Adjuster
503191565
Unavailable
121
RH Cam Adjuster
503191566
Unavailable
126
Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b
503191738
Unavailable
128
Ball Bearing | Package-STD
503190396
Unavailable
130
Ball Bearing | Package-STD
503190396
Unavailable
132
Black, Wheel Ass'y 152 mm | Includes 450 to 450b
503191755
Unavailable
135
Wheel 200, Black | Includes 600 to 600b
503191741
Unavailable
140
Wheel Cup M6
503191820
Unavailable
148
Washer
503191910
Unavailable
151
Ball Bearing
503193548
Unavailable
159
Stopper Strap
503192360
Unavailable
160
Bolt M8 X 248mm
503192440
Unavailable
160
Bolt M8 X 248mm
503192440
Unavailable
161
Rear Arm | Includes 3000a to 3000a7
503192464
Unavailable
165
Washer
503192494
Unavailable
165
Washer
503192494
Unavailable
166
Washer
503192496
Unavailable
166
Washer
503192496
Unavailable
166
Washer
503192496
Unavailable
167
Axle Shock Absorber
503196509
Unavailable
171
Black, Wheel Cap
503192771
Unavailable
171
Black, Wheel Cap
503192771
Unavailable
177
Acceleration Link Rod
503192900
Unavailable
190
Casted Support
503193894
Unavailable
192
Labyrinth Seal
503190682
Unavailable
195
Black, Wheel Ass'y 200 mm | Includes 670 to 670b
503193098
Unavailable
197
Pivot Arm | Includes 3000j to 3000j3
503191209
Unavailable
201
Front Arm Ass'y | XP
503193463
Unavailable
201a
Rocker
503193464
Unavailable
206
Pivot Axle
503193435
Unavailable
214
Bolt M10 X 251MM
503193227
Unavailable
215
LOWER SHAFT - Call your local BRP dealership
503193322
Unavailable
230
Leg Cushion
505072663
Unavailable
241
Bolt M8, Short
732601197
Unavailable
242
Rear Shock
503193189
Unavailable
