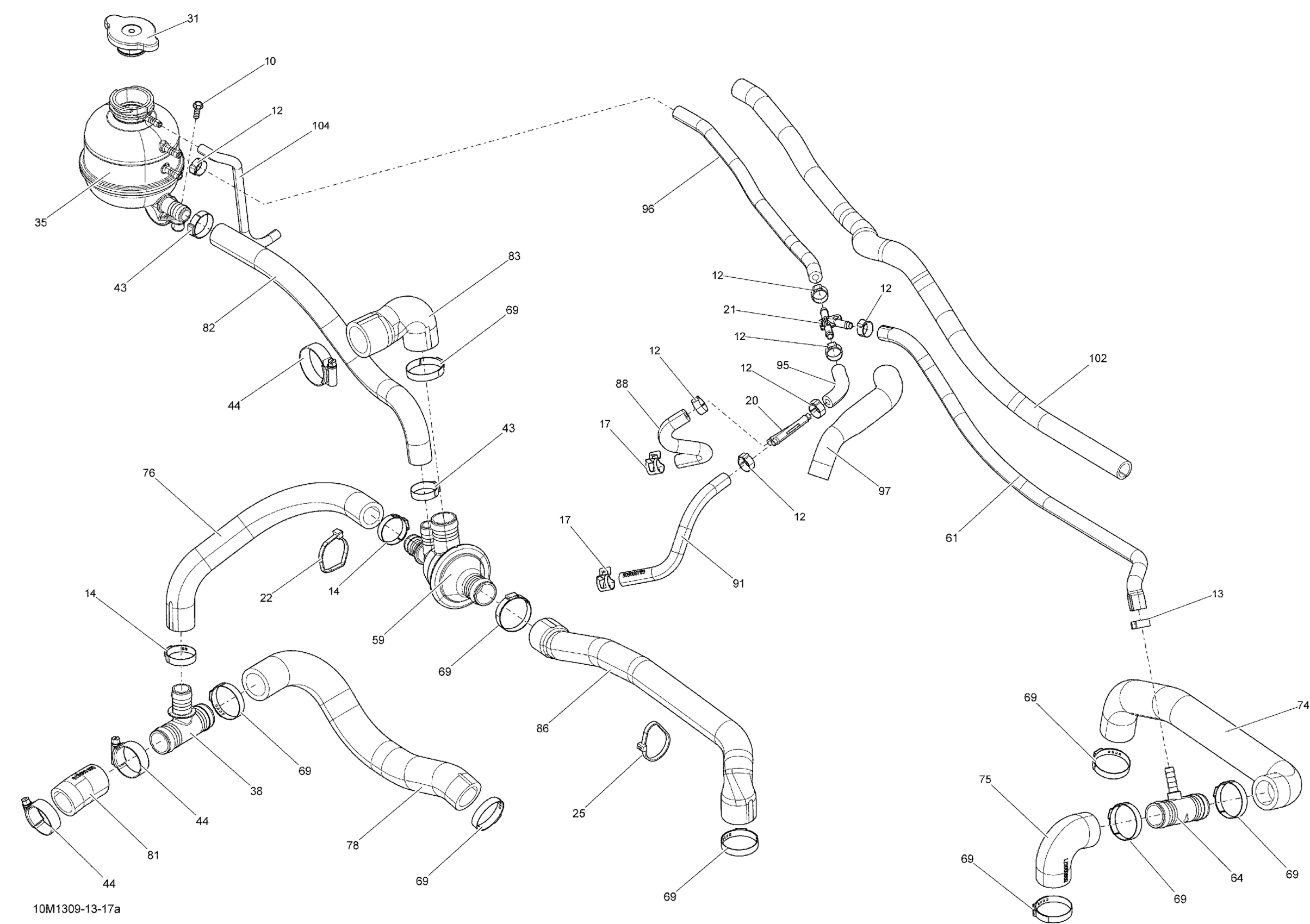

Ski-Doo SUMMIT SPORT 600, 2013 Cooling System 600 Diagram

#

Description
Price

10

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.37

12

Oetiker Clamp

293650046

$2.67

13

Crimp Clamp, 15.3-706R

293650047

$3.03

14

Crimp Clamp

293650099

$4.07

17

Spring Clamp

293650210

$5.06

20

Y-Fitting

293710059

$9.40

21

Y-Fitting

293710140

$7.09

22

Tie Wrap 368 mm

293750008

$0.97

25

Tie-Rap 180 mm

414115200

$0.10

31

Radiator Pressure Cap

509000180

$13.42

35

Coolant Tank

509000368

$84.30

38

T-Fitting

509000372

$9.03

43

Oeticker Gear Clamp, 25.6-706R

509000442

$4.73

44

Aba Gear Clamp, 26-38 MM

509000443

$5.64

59

Thermostat Housing

509000499

$38.78

61

Bleeder Hose

509000502

$23.10

64

T-Fitting

509000510

$11.18

69

Oetiker Gear Clamp, 36.5-706R

509000529

$9.42

74

Radiator Hose

509000670

$33.55

75

Radiator Hose This part replaces 509000671.

509001066

$17.88

76

Bypass Hose

509000672

$23.85

78

Radiator Hose

509000673

$21.61

81

Engine Inlet Hose This part replaces 509000675.

509001067

$16.39

82

Filling Hose

509000676

$23.10

83

Engine Outlet Hose

509000678

$17.88

86

Thermostat Outlet Hose

509000679

$24.60

88

Bleeder Hose

509000768

$9.57

91

Bleeder Hose

509000769

$10.46

95

Was 415129508 Bleeder Hose

219704416

$11.48

96

Was 415129508 Bleeder Hose

219704416

$11.48

97

Protector Tube, 16 mm

513033231

$7.15

102

Tubing 16 Mm 1000Mm Long

219704408

$7.15

104

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15
