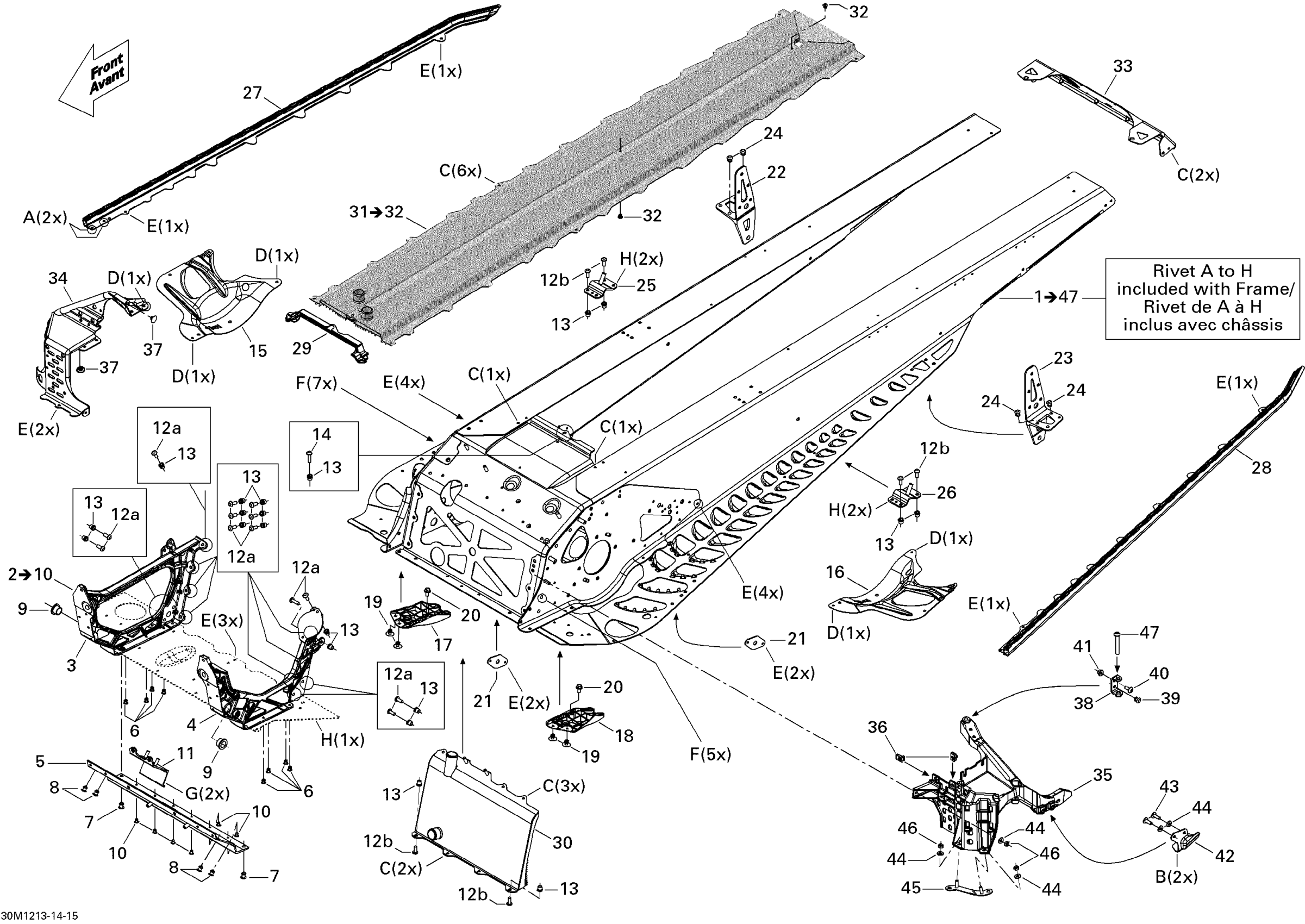

Ski-Doo Summit SPORT 600, 2012 Frame Diagram

#

Description
Price

1

FRAME ASS'Y - Call your local BRP dealership | Includes 10 to 10br This part replaces 415130277.

415130016

Unavailable

1

FRAME ASS'Y - Call your local BRP dealership | 800R PTEK 154"

415130017

Unavailable

2

E Module | Includes 10n to 10at

518327567

Unavailable

3

RH Member

518326795

Unavailable

4

LH Member

518326796

$210.74

5

Front Member

518326198

$59.97

6

Stavex Rivet

293150144

Unavailable

7

Hemlock Rivet 6.5 mm

293150120

$7.23

8

Hemlock Rivet, 6.5 mm

293150119

$4.00

9

Leg Bushing

505072690

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

MAG Engine Support | Includes 10a to 10a1

518325943

$26.12

12a

Hex. Flange Screw M6 X 20

207662044

Unavailable

12b

Hex. Flange Screw M6 X 16

207661644

Unavailable

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

14

Hex. Flange Screw M6 X 20

207662044

Unavailable

15

RH Reinforcement

518324874

Unavailable

16

LH Reinforcement

518324875

Unavailable

17

RH Deflector, Black Polypropylene

518325782

Unavailable

18

LH Deflector, Black Polypropylene

518325783

Unavailable

19

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

20

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

Unavailable

21

Reinforcement Plate

518326647

$4.34

22

RH Suspension Bracket

518324976

$39.97

23

LH Suspension Bracket

518324977

$40.74

24

Ornit Rivet 6,5 X 14.5

293150266

Unavailable

25

RH Rear Base

518325973

Unavailable

26

LH Rear Base | Includes 10v to 10x

518325974

Unavailable

27

RH ROLLER - Call your local BRP dealership

518325159

Unavailable

28

LH Roller | Includes 10bd to 10be

518325160

Unavailable

29

Seal

518326656

Unavailable

30

Front Radiator | Includes 10b to 10b2

518326485

Unavailable

31

REAR RADIATOR ASS'Y, 146 - Call your local BRP dealership | Includes 10bk to 10bp

518326728

Unavailable

31

Rear Radiator Ass'y, 154" | Includes 10bm to 10bn

518326692

$699.97

32

Stavex Rivet

293150144

Unavailable

33

Rear Cap

518327105

Unavailable

34

RH Stirup | Includes 10aa to 10ab

518328938

Unavailable

35

LH Stirup

518326820

Unavailable

36

Panel Nut M5 X 0.8

250000958

Unavailable

37

Full Moon Dart 5 mm

293730042

Unavailable

38

U-Attach

518326961

Unavailable

39

Ornit Rivet 6,5 X 14.5

293150266

Unavailable

40

Tork Screw M6 X 16

250000534

Unavailable

41

Hex. Flange Nut M6

233061414

Unavailable

42

Support

518326960

Unavailable

43

Tork Screw M6 X 18

250000536

Unavailable

44

Flat Washer

250200039

Unavailable

45

Attach | Includes 10n to 10p

518326986

Unavailable

46

Elastic Stop Nut M6

232561414

Unavailable

47

Torx Screw M8 X 55

250000535

Unavailable

A

Pop Rivet 3/16"

390402300

Unavailable

B

Interlock Rivet 3/16''

293150194

$1.02

C

Avex Rivet

390909200

Unavailable

D

Avex Rivet

390909100

$0.29

E

Stavex Rivet

293150144

Unavailable

F

Henrob Rivet

293150146

Unavailable

G

Hemlock Rivet, 6.5 mm

293150119

$4.00

H

Hemlock Rivet, 6.4 mm

293150174

$6.43
