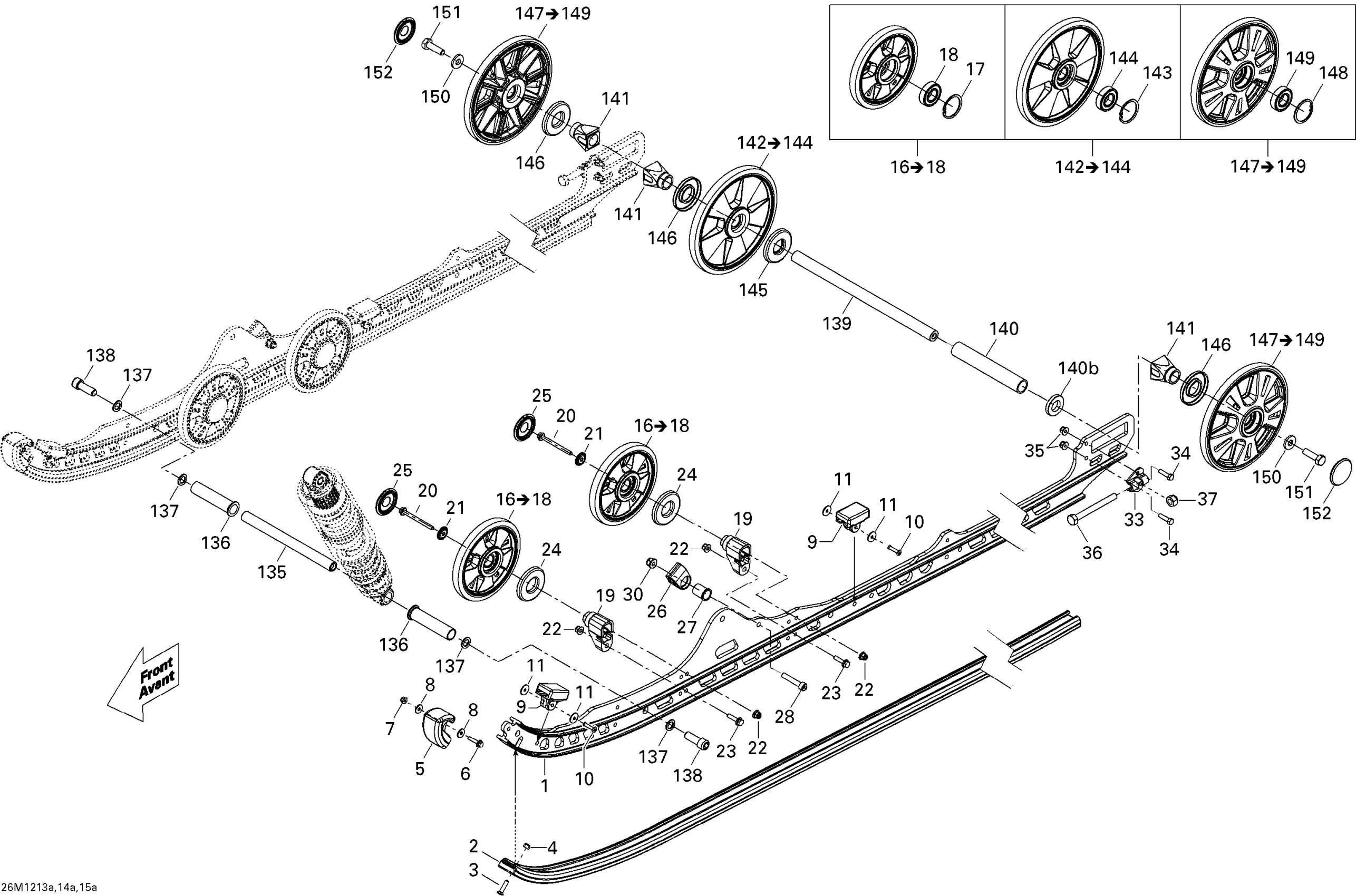

Ski-Doo Summit SPORT 600, 2012 Rear Suspension Runner Diagram

#

Description
Price

1

RAIL_SUSPENSION 154 - Call your local BRP dealership

503192206

Unavailable

1

RAIL_SUSPENSION 146 - Call your local BRP dealership

503192272

Unavailable

1

RAIL_SUSPENSION 163 - Call your local BRP dealership

503192273

Unavailable

2

Black, Slider 154

503191198

$33.05

2

Black, Slider 146

503191499

Unavailable

2

Slider Shoe 163" | 163"

503191501

$40.74

3

Phillips Screw M6 X 25

208562531

Unavailable

4

Elastic Stop Nut M6

232561414

Unavailable

5

Runner Protector

503192299

$23.82

6

Hex. Flange Screw M5 X 25

207652544

Unavailable

7

Hex. Flange Elastic Nut M5

233251414

Unavailable

8

Washer | DS 650 X

391301600

Unavailable

9

Rubber Stopper

503190576

Unavailable

10

Pop Rivet 3/16"

293150142

Unavailable

11

Washer

503191273

Unavailable

16

Black, Wheel Ass'y 152 mm | Includes 450 to 450b

503191755

Unavailable

17

Retaining Ring

415129371

Unavailable

18

Ball Bearing | Package-STD

503190396

Unavailable

19

Casted Support

503193894

Unavailable

20

Hex. Flange Screw M6 X 70

250001027

$1.74

21

Wheel Cup M6

503191820

Unavailable

22

ELASTIC FLANGE NUT M6 - Call your local BRP dealership

250100130

Unavailable

23

Hex Flange Screw M6 x 25

250000522

Unavailable

24

Labyrinth Seal

503190434

Unavailable

25

Black, Wheel Cap

503192771

Unavailable

26

Spring Support Kit

861805547

Unavailable

27

Spring Support Kit

861805547

Unavailable

28

Socket Head Screw M8 X 25

205082544

Unavailable

30

Elastic Flange Nut M8

250100131

Unavailable

33

Tensioner

503192583

$5.85

34

HEX. SCREW CAP FULL THREAD M6 X 25 - Call your local BRP dealership

250000479

Unavailable

35

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

36

Hex Screw M10 x 100

230100054

$5.29

37

ELASTIC LOCKING NUT M10 - Call your local BRP dealership

250100132

Unavailable

135

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

136

Center Bushing

503191259

Unavailable

137

Washer

503192491

Unavailable

138

Socket Screw M12 X 35

250000484

$6.18

139

Rear Axle

503190429

$59.97

140

Spacer

503196317

Unavailable

140b

Washer

503190432

Unavailable

141

Rear Wheel Spacer

503190428

$6.06

142

Black, Wheel Ass'y 200 mm | Includes 670 to 670b

503193098

Unavailable

143

Retaining Ring

415129371

Unavailable

144

Ball Bearing | Package-STD

503190396

Unavailable

145

Labyrinth Seal

503190682

Unavailable

146

Labyrinth Seal

503190434

Unavailable

147

Wheel 200, Black | Includes 600 to 600b

503191741

Unavailable

148

Retaining Ring

415129371

Unavailable

149

Ball Bearing | Package-STD

503190396

Unavailable

150

Washer

503190439

$5.82

151

Hex. Screw With Nylon

250000019

Unavailable

152

Black, Wheel Cap

503192771

Unavailable
