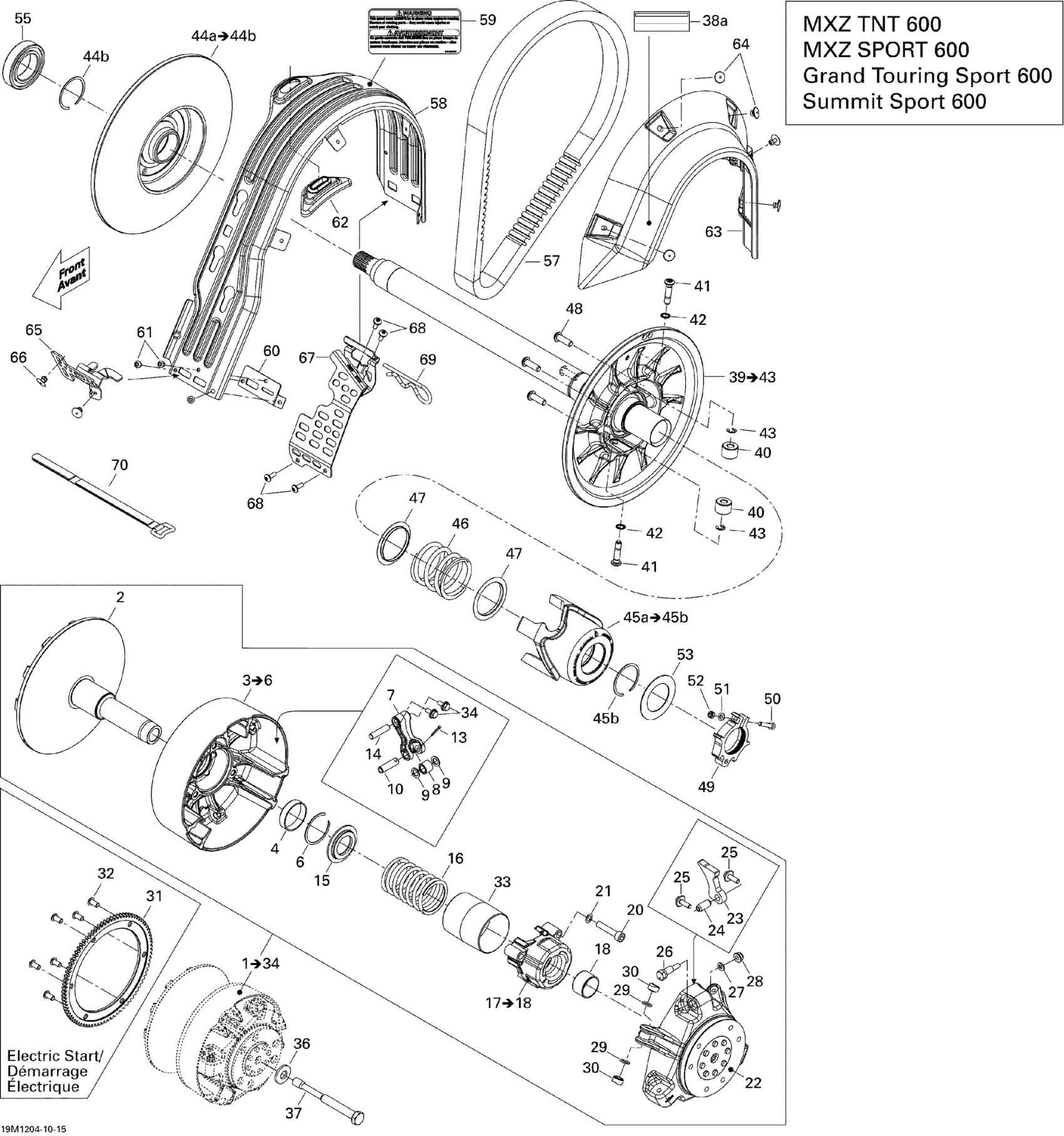

Ski-Doo Summit SPORT 600, 2012 Pulley System 600 Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange Ass'y

417222937

$226.12

3

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$198.43

4

Bushing

417222758

$20.74

6

Circlip

293370037

$3.02

7

Lever | Includes 10f to 10g

417222671

$32.28

8

Roller

417222947

$19.97

9

Stopper Washer

417004302

$15.99

10

Pin

417004308

Unavailable

13

Cotter Pin

250400060

$1.60

14

Lever Axle

417223164

$4.25

15

Spring Seat

417222312

$8.28

16

Spring (Blue/Pink)

414916300

Unavailable

17

Spring Cover Ass'y | Includes 10r to 10t

417007500

$46.12

18

Bushing

417009204

$16.12

20

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

21

Lock Washer 8 mm

250200009

Unavailable

22

Governor Cup Ass'y

417223669

$456.89

23

Ramp 417

417222552

Unavailable

24

Spring Pin M10 X 22

250400050

$2.38

25

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.26

26

Calibration Screw

417223501

$27.66

27

Washer

417005600

$3.86

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

29

O-Ring

732401030

$0.95

30

Slider Shoe

417222992

Unavailable

31

Not Available As Spare Parts

XXX

Unavailable

32

Not Available As Spare Parts

XXX

Unavailable

33

Guard

417009205

$16.89

34

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$3.86

36

Spring Washer 14 mm

250200006

Unavailable

37

Drive Pulley Bolt

417120000

$63.82

39

Fix Flange Ass'y | Includes 100a to 100a4

417127387

$470.74

40

Pulley Roller

417127016

Unavailable

41

Pivot Stud

417127259

Unavailable

42

Lock Washer 8 mm

250200009

Unavailable

43

Circlip

414753500

$0.59

46

Black, Return Spring

417127039

Unavailable

47

SWIVEL ABUTMENT - Call your local BRP dealership

417126322

Unavailable

48

Torx Screw M8 X 25, Scotch Grip

250000283

$1.61

49

Calibration Ass'y

415129604

Unavailable

50

Socket Screw M5 X 25

205052544

$1.34

51

Flat Washer M5

234051410

Unavailable

52

Elastic Stop Nut M5

232551414

Unavailable

53

Washer

417127155

Unavailable

55

Ball Bearing

504152574

Unavailable

57

Drive Belt

417300586

$154.58

58

Belt Guard

417300357

$86.12

59

Safety Belt Guard Decal

516005509

Unavailable

60

Reinforcement

417300380

$5.17

61

Avex Rivet

390909200

Unavailable

62

Guide

417300381

$9.23

63

Side Protector

417300356

$13.25

64

Pop Rivet 3/16"

293150103

Unavailable

65

FRONT BELT GUARD BRACKET - Call your local BRP dealership

417300360

Unavailable

66

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

67

BELT GUARD BRACKET - Call your local BRP dealership

417300448

$29.20

68

Torx Screw M5 X 14

250000742

$1.20

69

Hair Pin

114045200

Unavailable

70

Velcro Strip

508000599

Unavailable

38a

Decal English

516005503

Unavailable

44a

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

Unavailable

44b

Circlip

293370049

Unavailable

45a

Cam Ass'y | Includes 100m to 100q

417127371

Unavailable

45b

Circlip

293370049

Unavailable
