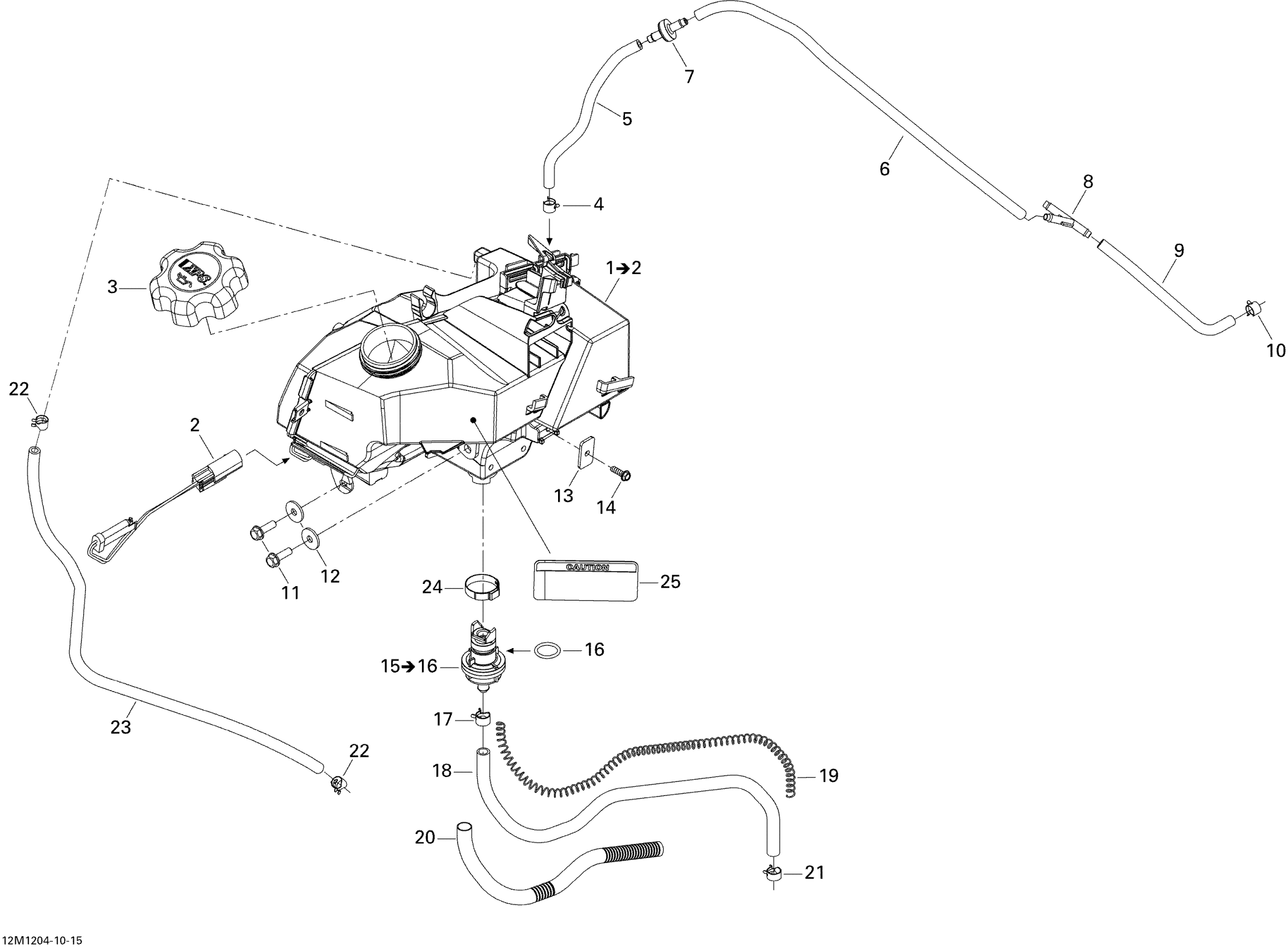

Ski-Doo Summit SPORT 600, 2012 Oil System Diagram

#

Description
Price

1

Oil Tank | Includes 1 to 2

519000274

Unavailable

2

Oil Level Sensor

515176508

$29.97

3

CAP - Call your local BRP dealership

519000194

Unavailable

4

Spring Clamp

414554800

$0.83

5

Polyurethane Hose 10000Mm Long

219704410

Unavailable

6

Polyurethane Hose 10000Mm Long

219704410

Unavailable

7

Check Valve

275500398

Unavailable

8

Y-Fitting

293710059

Unavailable

9

Polyurethane Hose 10000Mm Long

219704410

Unavailable

10

Spring Clamp

414554800

$0.83

11

Hex. Flange Screw M6 X 20, Scotch Grip

250000331

$2.06

12

Flat Washer

224061201

Unavailable

13

Bracket

519000179

$8.57

14

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

15

Oil Filter

519000242

$13.83

16

Oil Filter

519000242

$13.83

17

Spring Clamp

414415200

$0.83

18

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

19

Spring

519000196

$8.68

20

Tubing 10 MM 1000MM Long

219704407

Unavailable

21

Spring Clamp

414420700

Unavailable

22

Spring Clamp

414554800

$0.83

23

Polyurethane Hose 10000Mm Long

219704410

Unavailable

24

Crimp Clamp

293650099

Unavailable

25

NOTICE DECAL, OIL - Call your local BRP dealership

516005528

Unavailable
