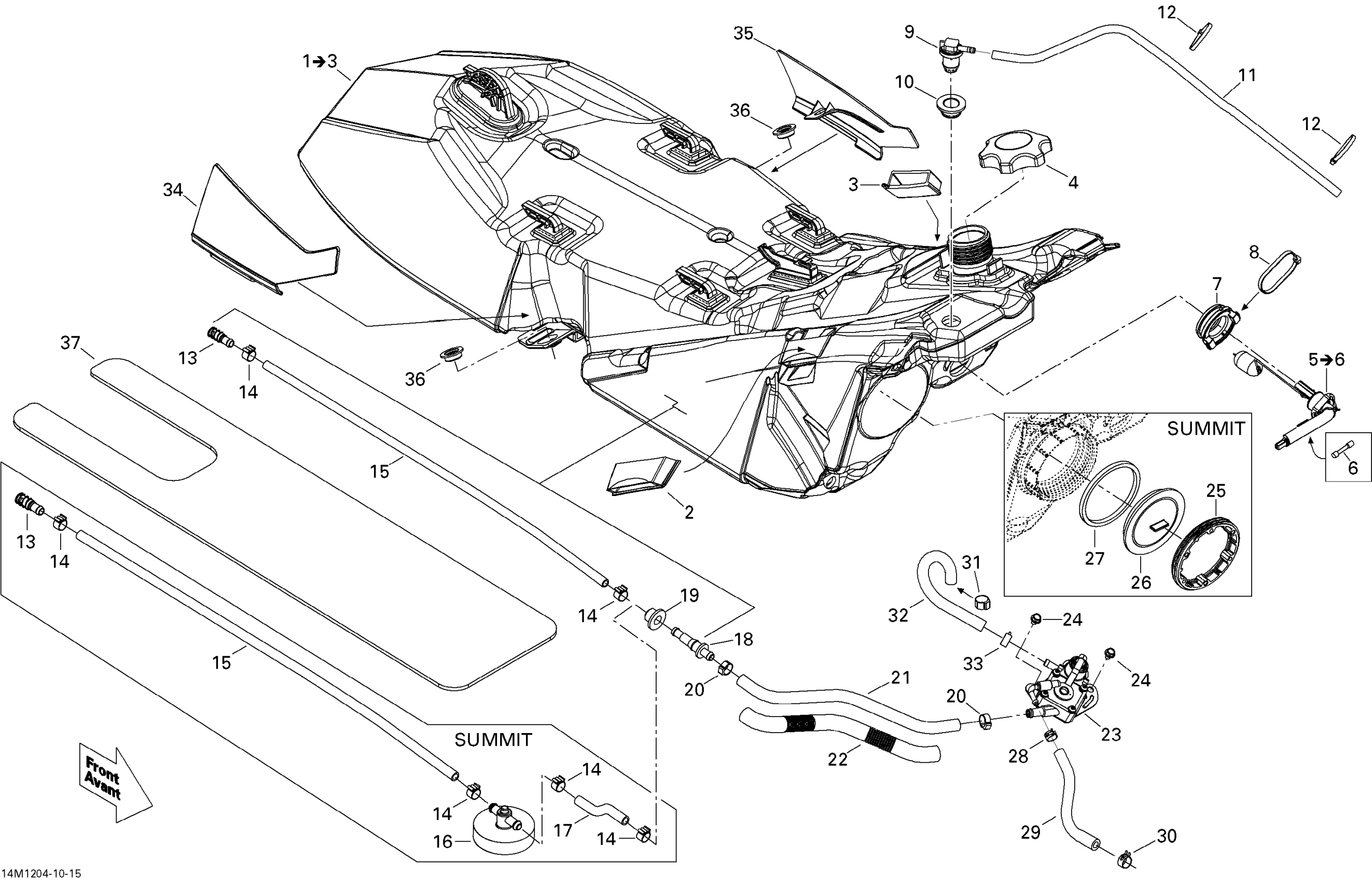

Ski-Doo Summit SPORT 600, 2012 Fuel System Diagram

#

Description
Price

1

Fuel Tank

513033696

$304.45

2

RH Panel Clip

513033471

$5.36

3

LH Panel Clip

513033472

$5.36

4

Fuel Tank Cap 91 Octane

513033722

$22.36

4

Fuel Tank Cap

513033025

$22.36

5

Sensor Level Fuel | Includes 40 to 40a

513033958

$101.46

6

Fuse, 0.5 Ampère

710001995

$7.25

7

Grommet

513033606

$17.88

8

Tie Wrap 368 mm

293750008

$0.97

9

Check Valve

513033842

$32.81

10

Grommet

513033596

$17.88

11

Polyurethane Hose 10000Mm Long

219704410

$52.96

12

Tie-Rap 180 mm

414115200

$0.10

13

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$11.06

14

Norma Spring Clamp

513033010

$8.42

15

Polyurethane Hose 1000Mm Long

219704391

Unavailable

16

Multi-Point Pick-Up

513033353

$41.01

17

Formed Hose

513033352

$17.13

18

Male Connector

414872700

Unavailable

19

Grommet

513033435

$4.28

20

Crimp Clamp

293650053

$2.78

21

Formed Hose

513033165

$28.33

22

Tubing 16 Mm 1000Mm Long

219704408

$7.15

23

Fuel Pump

513033184

$84.99

24

Hex. Flange Screw M6 X 10

210261040

$1.43

25

Ring

513033180

$17.13

26

Cap

513033591

$17.13

27

Gasket

513033334

$22.36

28

Spring Clamp

414415200

$0.81

29

Formed Hose

513033327

$23.10

30

Universal Spring Clamp

513033029

$4.96

31

Oetiker Clamp

293650125

$3.09

32

Formed Hose

513033343

$23.10

33

Spring Clamp

414655700

$0.66

34

RH Cap

513033418

$12.24

35

LH Cap

513033419

$12.24

36

Shoulder Bushing

513033326

$12.24

37

Insulating Foam

513033588

$12.24
