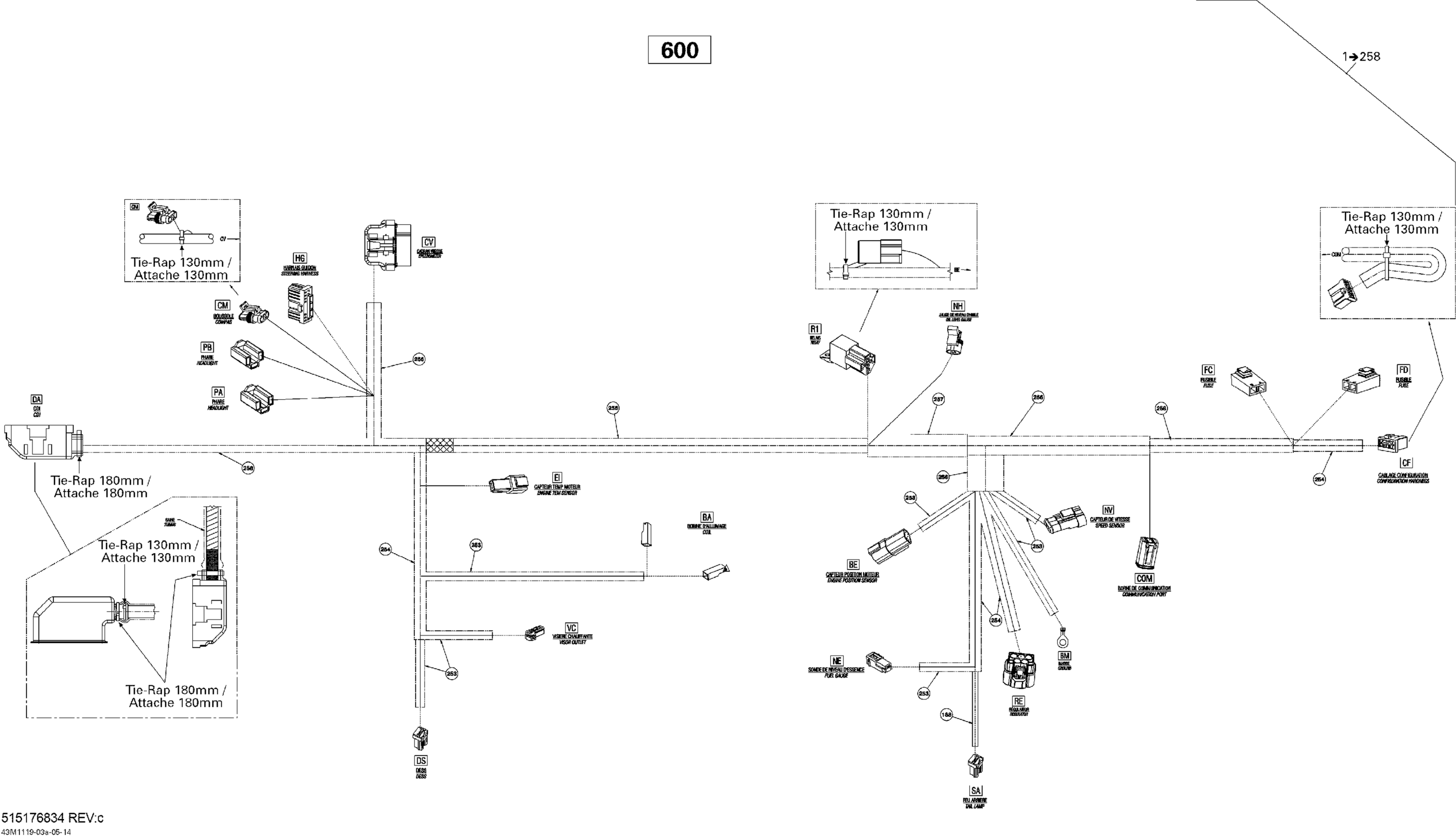

Ski-Doo Summit SPORT 600, 2011 Electrical Harness Diagram

#

Description
Price

1

WIRING HARNESS MAIN - Call your local BRP dealership | 600, Includes 1 to 258

515176834

Unavailable

BA

Female Terminal Housing, 1 Circuit

409010400

$7.48

BA

Female Terminal

409010100

$5.46

BE

Female Housing, 4 Circuits

278000635

$14.02

BE

Female Wedge, 4 Circuits

278000636

$4.12

BE

Male Terminal

278000631

$4.12

BM

Open Barrel

278000992

$1.79

CF

Female Terminal Housing, 8 Circuits

515175819

$7.46

CF

Female Terminal

515175231

Unavailable

CF

Tie Wrap 142 mm

293750002

Unavailable

CM

Female Housing, 3 Circuits

409209600

Unavailable

CM

Wire Seal

515176621

Unavailable

CM

FEMALE TERMINAL - Call your local BRP dealership

278002307

Unavailable

CM

Tie Wrap 142 mm

293750002

Unavailable

COM

Male Housing, 6 Circuits

515175673

$13.05

COM

Male Wedge, 6 Circuits

515175678

Unavailable

COM

Sealing Cap

293000052

Unavailable

COM

Female Terminal

278000632

Unavailable

CV

Female Housing, 24 Circuits

515175801

Unavailable

CV

Retainer Block

515175802

Unavailable

CV

Plug

515175812

Unavailable

CV

Female Housing

710000399

Unavailable

CV

Wire Seal

515175803

Unavailable

CV

Female Terminal

515175806

$0.81

CV

Female Terminal

710001131

Unavailable

DA

Female Terminal Housing, 36 Circuits

515176223

$12.97

DA

Terminal Support

515176224

$15.02

DA

Plug

515175812

Unavailable

DA

Female Housing

515176221

$14.94

DA

Protection Cap

515176485

$20.74

DA

Wire Seal

515176222

$14.97

DA

Female Terminal

515175806

$0.81

DA

Female Terminal

710001131

Unavailable

DA

Tie Wrap 142 mm

293750002

Unavailable

DA

Tie-Rap 180 mm

414115200

$0.09

DS

Female Housing, 3 Circuits

515175495

$15.35

DS

Female Terminal

515175231

Unavailable

EI

Male Terminal Housing, 2 Circuits

515175665

$8.02

EI

Male Lock, 2 Circuits

409207500

$3.02

EI

Male Terminal

278000631

$4.12

FC

Clip

710000992

$4.00

FC

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

FC

Fuse, 20 Amperes

409003900

$3.22

FC

Fuse Holder

409004000

Unavailable

FC

Female Terminal

409004200

Unavailable

FD

Clip

710000992

$4.00

FD

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

FD

Fuse, 15 Amperes

278000343

$2.72

FD

Fuse Holder

409004000

Unavailable

FD

Female Terminal

409004200

Unavailable

HG

Female Terminal Housing, 13 Circuits

515175350

Unavailable

HG

Female Terminal

515175282

$6.43

HG

Female Terminal

515175231

Unavailable

NE

Male Terminal Housing, 2 Circuits

515175654

$7.48

NE

Male Terminal

515175232

$1.49

NH

Male Connector, 2 Circuits

278001113

$12.65

NH

Female Terminal

710001119

Unavailable

NV

Clip

710000992

$4.00

NV

Housing

710000568

Unavailable

NV

Wire Seal

515176621

Unavailable

NV

Male Terminal

515176164

Unavailable

PA

Female Housing

515176908

$12.05

PA

Terminal

515176909

Unavailable

PB

Female Housing

515176908

$12.05

PB

Terminal

515176909

Unavailable

R1

Female Housing, 5 Circuits

409209900

$8.98

R1

Relay | DS 650 X

710010053

Unavailable

R1

Female Terminal

561503100

Unavailable

R1

Female Terminal

561503100

Unavailable

R1

Tie Wrap 142 mm

293750002

Unavailable

RE

Connector

515176530

Unavailable

RE

Seal

515176594

Unavailable

RE

Terminal

515176531

Unavailable

SA

Female Housing, 3 Circuits

515175495

$15.35

SA

Female Terminal

515175231

Unavailable

VC

Female Housing, 2 Circuits

515175658

Unavailable

VC

Female Terminal

515175231

Unavailable

188

Tubing 12 mm

409902000

Unavailable

253

Tubing 6 Mm 3000Mm Long

219704425

$13.14

254

Was 409901700 Tubing (9 mm)

219704399

Unavailable

256

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

257

Was 409901600 Tubing 19mm

219704398

Unavailable

258

Tubing 10 MM 1000MM Long

219704407

Unavailable
